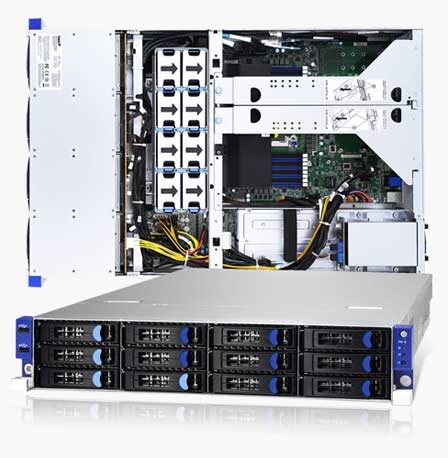

Tyan System B7102T76V12HR-2T-G Thunder SX 2U Xeon C621 S3647 DDR4 SATA Brown Box
Starting atContact Sales
System Form Factor:2U Rackmount Chassis Model:TN76 Dimension (D x W x H):29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm) Motherboard Name:S7102GM2NR-2T Gross Weight:37 kg (82 lbs) Net weight:28 kg (62 lbs) Front Panel Buttons:(1) ID / (1) PWR w/ LED LEDs:(1) ID / (1) Warning I/O Ports:(1) USB 3.0 port External Drive Bay Qty / Type:(12) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(12) SATA 6Gb/s System Cooling Configuration FAN:(12) 6cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:1,200 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification:205W CPUs are supported by purchasing FRU-TH-0220 option with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(1) PCI-E Gen3 x8 OCP 2.0 slot (conn.A+conn.C) / (2) PCI-E Gen3 x16 slots (Full-height, 10.5" length, Double-width) or (4) PCI-E Gen3 x8 slots (Full-height, 10.5" length, Single-width) split by Mux. / (1) PCI-E Gen3 x8 storage mezz. slot Pre-install TYAN Riser Card:MP016T76-L16-1F / (1) M7102T76-R16-2F riser card for (2) PCI-E Gen3 x16 slots / (1) M7102T76-L16-2F riser card for (2) PCI-E Gen3 x16 slots

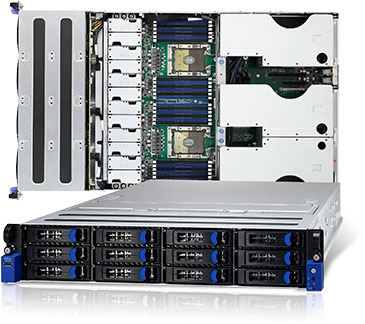

Tyan System B7102T76V12HR-2T-N 2U Intel Xeon Scalable Thunder SX LGA3647 DDR4 Retail
Starting atContact Sales
System Form Factor:2U Rackmount Chassis Model:TN76 Dimension (D x W x H):29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm) Motherboard:S7102GM2NR-2T Gross Weight:37 kg (82 lbs) Net weight:28 kg (62 lbs) Front Panel Buttons:(1) ID / (1) PWR w/ LED LEDs:(1) ID / (1) Warning I/O Ports:(1) USB 3.0 port External Drive Bay Type / Qty:3.5"/2.5 Hot-Swap / (12) HDD backplane support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(12) SATA 6Gb/s System Cooling Configuration FAN:(12) 6cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:1,200 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Socket Type / Qty:LGA3647/ (2) Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage:Max up to 165W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(4) PCI-E Gen3 x8 slots (w/ x8/x0 link) / (4) PCI-E Gen3 x16 slots (w/ x8/x16 link) Pre-install TYAN Riser Card:M7102T76-R16-2F / (2) M7102T76-L16-2F Others:(1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.C) / (1) PCI-E Gen3 x8 storage mezz. slot LAN Port Qty(2) 10GbE ports / (1) PHY Controller:Intel X550-AT2 PHY:Realtek RTL8211E Storage SATA:Connector:(2) Mini-SAS HD (8-ports) Controller:Intel C621 Speed:6.0 Gb/s RAID:RAID 0/1/10/5 (Intel RSTe) sSATA:Connector:(2) SATA/SATA-DOM / (1) Mini-SAS HD (4-ports) Controller:Intel C621 Speed:6.0 Gb/s RAID:RAID 0/1/10/5 (Intel RSTe) NVMe:Connector (M.2):(1) 2242 (by PCI-E interface) / (1) 2280 (by PCI-E interface)

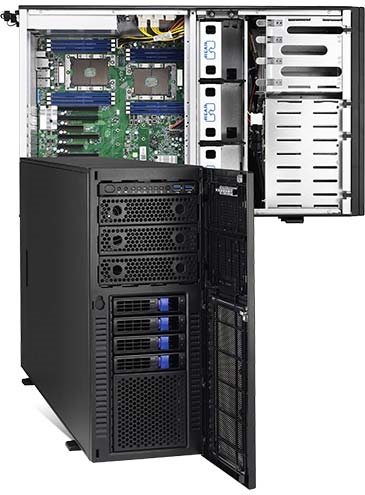

Tyan System B7105F48TV4HR-2T-G 4U Tower Dual Socket Xeon 4x2.5/3.5" Hot-Swap SATA 6Gb/s Brown Box
Starting atContact Sales
System Form Factor:4U Tower Chassis Model:FT48T Dimension (D x W x H):27.5" x 16.8" x 6.9" (700 x 427 x 176mm) Motherboard Name:S7105AGM2NR-2T Gross Weight:40 kg (88.5 lbs) Net weight:34 kg (75 lbs) Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports:(2) USB 3.0 ports External Drive Bay Qty / Type:(3) 5.25" device bays + (4) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SATA 6.0Gb/s Supported HDD Interface:(4) SATA 6Gb/s System Cooling Configuration Redundancy:Yes FAN:(3) hot-swap 12cm fans Heat Sink:(2) Passive CPU Heat sinks Power Supply Type:RPSU Input Range:AC 100-127V/24A / AC 220-240V/10A Frequency:47-63 Hz Output Watts:2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency:80 plus Platinum Redundancy:1+1 Serviceability:Hot-swap Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(6)+(6) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V

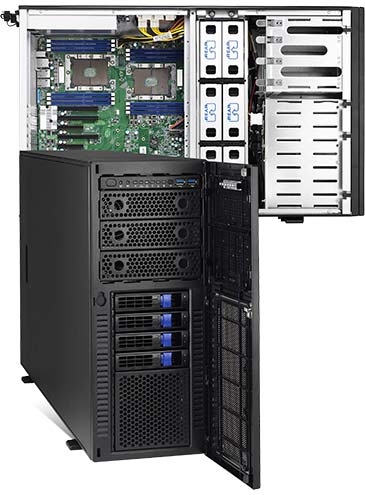

Tyan System B7105F48TV4HR-2T-N Thunder HX Dual-Socket Xeon 1.5T DDR4 3.5"/2.5" Hot-Swap Brown Box
Starting atContact Sales
System Form Factor:4U Tower Chassis Model:FT48T Dimension (D x W x H):27.5" x 16.8" x 6.9" (700 x 427 x 176mm) Motherboard Name:S7105AGM2NR-2T Gross Weight:40 kg (88.5 lbs) Net weight:34 kg (75 lbs) Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports:(2) USB 3.0 ports External Drive Bay Qty / Type:(3) 5.25" device bays + (4) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SATA 6.0Gb/s Supported HDD Interface:(4) SATA 6Gb/s System Cooling Configuration Redundancy:Yes FAN:(3) hot-swap 12cm fans Heat Sink:(2) Passive CPU Heat sinks Power Supply Type:RPSU Input Range:AC 100-127V/24A / AC 220-240V/10A Frequency:47-63 Hz Output Watts:2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency:80 plus Platinum Redundancy:1+1 Serviceability:Hot-swap Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(6)+(6) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V

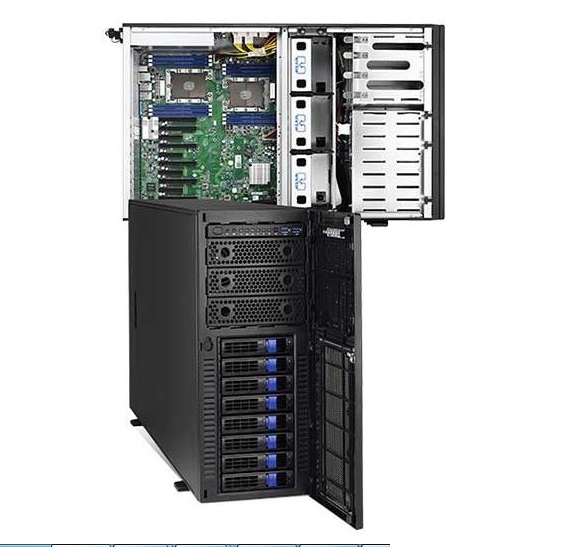

Tyan System B7105F48TV8HR-2T-G Dual-Socket Intel Xeon DDR4 Hot-Swap 3.5" SATA 6GB Retail
Starting atContact Sales
System Form Factor 4U Tower Chassis Model FT48T Motherboard Name S7105AGM2NR-2T Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (3) 5.25" device bays + (8) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support SATA 6.0Gb/s Supported HDD Interface (8) SATA 6Gb/s System Cooling Configuration Redundancy Yes FAN (3) hot-swap 12cm fans Heat Sink (2) Passive CPU Heat sinks Power Supply Type RPSU Input Range AC 100-127V/24A / AC 220-240V/10A Frequency 47-63 Hz Output Watts 2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency 80 plus Platinum Redundancy 1+1 Serviceability Hot-swap Processor Qty / Socket Type (2) LGA3647 Supported CPU Series Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage Max up to 205W System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH Intel C621 Memory Supported DIMM Qty (6)+(6) DIMM slots DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel 6 Channels per CPU Memory voltage 1.2V

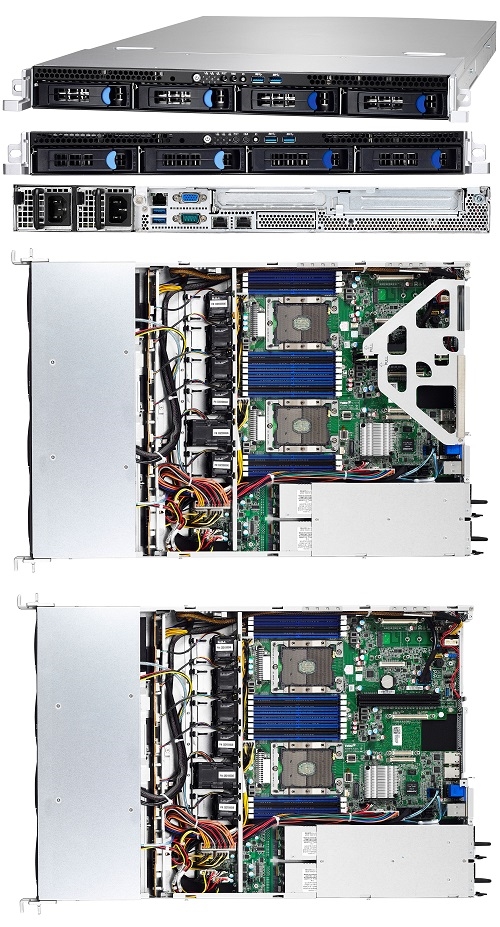

Tyan System B7106G24EV2E2HR 1U RM Dual Socket Xeon 4x3.5 inch HS 2x2.5 inch Brown Box
Starting atContact Sales
Form Factor 1U Rackmount Chassis Model GT24E Motherboard Name S7106GM2NR Front Panel Buttons (1) RST / (1) NMI / (1) PWR w/ LED / (1) UID LEDs (1) ID / (1) UID / (1) BMC event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (2) 3.5"/2.5" Hot-Swap SSD/HDD + (2) NVMe HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s / NVMe Supported HDD Interface (2) SATA 6Gb/s + (2) NVMe Internal Drive Bay Type / Qty (2) 2.5" fixed SSD (with height up to 9.5mm) Supported HDD Interface (2) SATA 6Gb/s System Cooling Configuration FAN (6) 4cm fans
Tyan System B7106G24EV4HR 1U Dual Socket Xeon 4 Hotswap 3.5" SATA 6GB Drive Bays Retail
Starting atContact Sales
ystem Form Factor : 1U Rackmount Chassis Model : GT24E Motherboard Name : S7106GM2NR Front Panel Buttons: (1) RST / (1) NMI / (1) PWR w/ LED / (1) UID LEDs : (1) ID / (1) UID / (1) BMC event I/O Ports : (2) USB 3.0 ports External Drive Bay Type / Qty : 3.5"/2.5" Hot-Swap / (4) HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (4) SATA 6Gb/s Internal Drive Bay Type / Qty : (2) 2.5" fixed SSD (with height up to 9.5mm) Supported HDD Interface : (2) SATA 6Gb/s System Cooling Configuration FAN : (6) 4cm fans Power Supply Type : RPSU Input Range : AC 100-240V/9A Frequency : 50-60 Hz Output Watts : 650 Watts Efficiency : 80-plus Redundancy : 1+1 Serviceability : Hot-swap

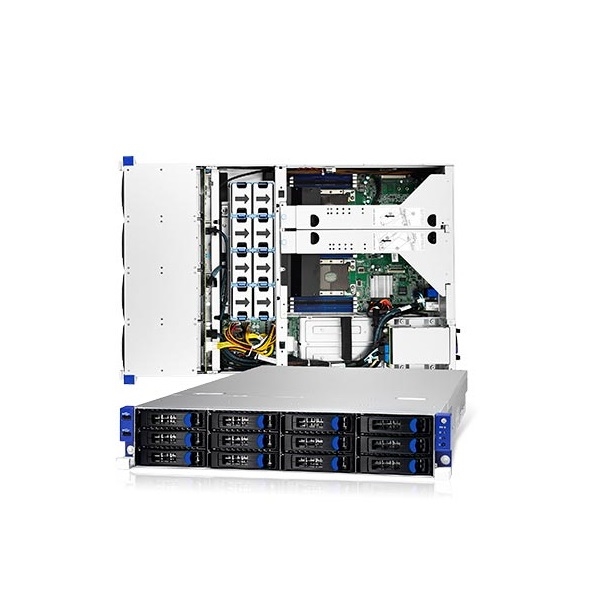

Tyan System B7106T70EV12HR 2U Xeon Scalable LGA3647 C621 12x3.5"/2.5" Hot-Swappable SATA Retail
Starting atContact Sales
System Form Factor : 2U Rackmount Chassis Model : TN70E Motherboard Name : S7106GM2NR Front Panel Buttons: (1) RST / (1) PWR w/ LED / (1) UID LEDs : (1) ID / (1) UID / (1) BMC event I/O Ports : (2) USB 2.0 ports External Drive Bay Qty / Type : (12) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (12) SATA 6Gb/s Internal Drive Bay Type / Qty : (2) 2.5" Hot Swap SSD Supported HDD Interface : (2) SATA 6Gb/s System Cooling Configuration FAN : (8) 6cm fans Power Supply Type : RPSU Input Range : AC 100-127V/10A / AC 200-240V/5A Frequency : 50-60 Hz Output Watts : 770 Watts Efficiency : 80 plus Platinum Redundancy : 1+1 Processor Qty / Socket Type : (2) LGA3647 Supported CPU Series : Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage : Max up to 205W System Bus : Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification : 205W CPUs are supported by purchasing FRU-SO-9140 option with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset PCH : Intel C621
Tyan System B7108T200X4-220PE6HR 2U RM Dual Socket Xeon 6x2.5" Hot-Swap per blade HDD Retail
Starting atContact Sales
System Form Factor:2U Rackmount Chassis Model:TN200 Dimension (D x W x H):33.43" x 17.47" x 3.42" (849 x 443.8 x 86.8mm) Motherboard Name:(4) S7108GMR (4 blades in one chassis) Gross Weight:38 kg (84 lbs) Net weight:30 kg (66.5 lbs) Board Dimension:6.79" x 20.26" (172.4 x 514.7mm) Blade Dimension (D x W x H):20.66" x 7.06" x 1.6" (524.8 x 179.3 x 40.7mm) Feature:Four blades in one chassis Front Panel Buttons:(4) ID w/ LED / (4) PWR w/ LED I/O Ports:(4) Display ports (2 x USB2.0 + 1 x D-SUB VGA ports w/ via cable, per port ) External Drive Bay (per blade) Type / Qty:2.5" Hot-Swap / (6) / Total (24) devices HDD backplane support:(24) SATA 6Gb/s, NVMe Supported HDD Interface:NVMe System Cooling Configuration (per blade) FAN:(4) 8cm fans Processor (per blade) Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Processor Scalable Families Thermal Design Power (TDP) wattage:Max up to 165W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification:165W CPUs are supported with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset (per blade) PCH:Intel C621 Memory (per blade) Supported DIMM Qty:(8)+(8) DIMM slots DIMM Type / Speed:Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V
Tyan System B7108T200X4-220PV3HR 2U RM Dual Socket Xeon 3x3.5 inch HotSwap pre blade HDD Retail
Starting atContact Sales
System Form Factor: 2U Rackmount Chassis Model: TN200 Motherboard Name: (4) S7108GMR (4 blades in one chassis) Board Dimension: 6.79" x 20.26" (172.4 x 514.7mm) Blade Dimension (D x W x H): 20.66" x 7.06" x 1.6" (524.8 x 179.3 x 40.7mm) Feature: Four blades in one chassis Front Panel Buttons: (4) ID w/ LED / (4) PWR w/ LED I/O Ports: (4) Display ports (2 x USB2.0 + 1 x D-SUB VGA ports w/ via cable, per port ) External Drive Bay (per blade) Qty / Type: (3) 3.5" Hot-Swap HDD Bays, Total (12) devices HDD backplane support: (12) SAS 12Gb/s / SATA 6.0Gb/s Supported HDD Interface: SATA 6Gb/s System Cooling Configuration (per blade) FAN: (4) 8cm fans Processor (per blade) Qty / Socket Type: (2) LGA3647 Supported CPU Series: Intel Xeon Processor Scalable Families Thermal Design Power (TDP) wattage: Max up to 165W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification: 165W CPUs are supported with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset (per blade) PCH: Intel C621 Memory (per blade) Supported DIMM Qty: (8)+(8) DIMM slots DIMM Type / Speed: Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 6 Channels per CPU Memory voltage: 1.2V Expansion Slots (per blade) PCI-E: (1) PCI-E Gen3 x16 slot (Half-height, Half-length) / (1) PCI-E Gen3 x8 slot (Half-height, Half-length) / (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B+conn.C) Pre-install TYAN Riser Card: (1) M7108T200-L16-1L riser card for (1) PCI-E Gen3 x16 slot / (1) M7108T200-R8-1L riser card for (1) PCI-E Gen3 x8 slot LAN (per blade) Qty / Port: (1) PHY PHY: Realtek RTL8211E
Tyan System B7109F77DV10E4HR-2T-N 4U Rackmount Dual Socket Xeon 10x2.5 inch SATA 4x2.5 inch HotSwap
Starting atContact Sales
System Form Factor: 4U Rackmount Chassis Model: FT77D Motherboard Name: S7109GM2NR-2T Front Panel Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports: (2) USB 3.0 ports Internal Drive Bay Qty / Type: (10) 2.5" Hot-Swap SSD/HDD + (4) NVMe HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe Supported HDD Interface: (10) SATA 6Gb/s + (4) NVMe System Cooling Configuration Redundancy: Yes FAN: (5+1) hot-swap 12cm fans Power Supply Type: RPSU Input Range: AC 100-127V/12.9A / AC 200-240V/9.5A Frequency: 47-63 Hz Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency: PFC / 80 plus Platinum Redundancy: 2+1 Processor Qty / Socket Type: (2) LGA3647 Supported CPU Series: Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage: Max up to 205W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH: Intel C621 Switch IC: (4) PLX PEX8747 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 6 Channels per CPU Memory voltage: 1.2V Expansion Slots PCI-E: (8) PCI-E Gen3 x16 slots (Full-height, Full-length, Double-width) / (1) PCI-E Gen3 x8 storage mezz. slot / (1) PCI-E Gen3 x8 LAN mezz. slot Pre-install TYAN Riser Card: (1) M2215-L8-1F riser card for (1) LAN mezz. slot / (1) M2217-L16-IO riser card for (1) storage mezz. Slot LAN Qty / Port: (2) 10GbE ports / (1) PHY Controller: Intel X550-AT2 PHY: Realtek RTL8211E Storage SATA Connector: (2) Mini-SAS HD (8-ports) Controller: Intel C621 Speed: 6.0 Gb/s RAID: RAID 0/1/10/5 (Intel RSTe) sSATA Connector: (2) SATA-III Speed: 6.0 Gb/s RAID: RAID 0/1/10/5 (Intel RSTe) NVMe Connector (OCuLink): (2) SFF-8612 for (4) NVMe ports via Tyan M2093 PCI-E Gen3 x16 Card
Tyan System B7109F77DV14HR-2T-N 4U Xeon S3647 14x2.5" Hot-swappable SSD/HDD 205W Retail
Starting atContact Sales
System Form Factor:4U Rackmount Chassis Model:FT77D Dimension (D x W x H):30.31" x 17.24" x 6.93" (770 x 438 x 176mm) Motherboard:S7109GM2NR-2T Gross Weight:45 kg (99.5 lbs) Net weight:26 kg (57.5 lbs) Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports:(2) USB 3.0 port External Drive Bay Type / Qty:2.5" Hot-Swap SSD/HDD/ (14) HDD backplane support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(14) SATA 6Gb/s System Cooling Configuration FAN:(6) 12cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.9A / AC 200-240V/9.5A Frequency:47-63 Hz Output Watts:2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency:PFC / 80 plus Platinum Redundancy:2+1 Processor Socket Type / Qty:LGA3647/ (2) Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Switch IC:(4) PLX PEX8747 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(9) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 Tyan Mezzanine slots Pre-install TYAN Riser Card:M2215-L8-1F / M2217-L16-IO LAN Port Qty:(2) 10GbE ports / (1) PHY Controller:Intel X550-AT2 PHY:Realtek RTL8211E
Tyan System B7109F77DV4HR-2T-NF 4U Intel Xeon Scalable Thunder HX LGA3647 DDR4 Brown Box
Starting atContact Sales
System Form Factor: 4U Rackmount Chassis Model: FT77D Motherboard: S7109GM2NR-2T Front Panel Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports: (2) USB 3.0 port Internal Drive Bay Type / Qty: 3.5"/2.5" Hot-Swap SSD/HDD / (4) Supported HDD Interface: (4) SATA 6Gb/s HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe System Cooling Configuration FAN: (5+1) hot-swap 12cm fans Redundancy: Yes Power Supply Type: RPSU Input Range: AC 100-127V/12.9A / AC 200-240V/9.5A Frequency: 47-63 Hz Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency: PFC / 80 plus Platinum Redundancy: 2+1 Processor Socket Type / Qty: LGA3647/ (2) / Socket-F support Supported CPU Series: Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage: Max up to 205W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH: Intel C621 Switch IC: (4) PLX PEX8747 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 6 Channels per CPU Memory voltage: 1.2V Expansion Slots PCI-E: (9) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 Tyan Mezzanine slots Pre-install TYAN Riser Card: M2215-L8-1F / M2217-L16-IO LAN Port Qty: (2) 10GbE ports / (1) PHY Controller: Intel X550-AT2 PHY: Realtek RTL8211E Storages SATA Connector: (1) Mini-SAS HD (4-ports) SATA Speed: 6.0 Gb/s SATA RAID: RAID 0/1/10/5 (Intel RSTe)
Tyan System B7119F77V10E4HR-2T-N 4U RM Dual Socket Xeon 10x2.5 inch SATA 4x2.5 inch NVME Brown Box
Starting atContact Sales
System Form Factor: 4U Rackmount Chassis Model: FA77 Motherboard Name: S7119GMRE Front Panel Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports: (1) VGA port / (2) USB 3.0 ports / (1) COM Port Internal Drive Bay Qty / Type: (10) 2.5" Hot-Swap SSD/HDD + (4) NVMe HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe Supported HDD Interface: (10) SATA 6Gb/s + (4) NVMe System Cooling Configuration Redundancy: Yes FAN: (5+1) hot-swap 12cm fans Power Supply< Type: RPSU Input Range: AC 100-127V/12A / AC 200-240V/9.48A Frequency: 47-63 Hz Output Watts: 3,000 Watts (100-127Vac input) / 4,800Watts (200-240Vac input) Efficiency: PFC / 80 plus Platinum Redundancy: 3+1 Processor >Qty / Socket Type: (2) LGA3647 Supported CPU Series: Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage: Max up to 205W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH: Intel C621 Switch IC: (2) PLX PEX8796 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 6 Channels per CPU Memory voltage: 1.2V
Tyan System B8021G88V2HR-2T-N 1U 4/6GPU Single Socket AMD EPYC 2x2.5"HS Retail
Starting atContact Sales
System Form Factor : 1U Rackmount Chassis Model : GA88 Motherboard Name : S8021GM2NR-2T Front Panel Buttons : (1) RST / (1) PWR w/ LED / (1) UID LEDs : (1) PWR / (2) LAN / (1) UID / (1) BMC event I/O Ports : (2) USB 3.0 ports External Drive Bay Qty / Type : (2) 2.5" Hot-Swap SSD/HDD HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (2) SAS 12Gb/s / SATA 6Gb/s System Cooling Configuration Redundancy : Yes FAN : (10) 4cm fans Heat Sink : (1) Passive CPU Heat sink Power Supply Type : ERP1U Input Range : AC 100-127V/12A / AC 200-240V/9.48A Frequency : 47-63 Hz Output Watts : 1600 Watts Efficiency : 80 plus Platinum Redundancy : 1+1 Processor Qty / Socket Type : (1) AMD Socket SP3 Supported CPU Series : (1) AMD EPYCTM 7000 Series Processor System Bus : 1066/ 800/ 533 MHz Average CPU Power (ACP) Wattage : Max up to 180W Memory Supported DIMM Qty : (16) DIMM slots DIMM Type / Speed : DDR4 ECC RDIMM/LRDIMM 2666/2400 Capacity : Up to 2,048GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Actual memory speed depends on memory population topology Memory channel : 8 Channels per CPU Memory voltage : 1.2V
Tyan System B8026G62FE10HR 1U RM Single Socket AMD EPYC 10x2.5 inch HS Brown Box
Starting atContact Sales
System Form Factor 1U Rackmount Chassis Model GT62F Motherboard Name S8026GM2NRE Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) PWR / (1) HDD / (2) LAN / (1) BMC event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (10) 2.5" Hot-Swap SSD/HDD HDD Backplane Support NVMe Supported HDD Interface (10) 2.5" NVMe System Cooling Configuration FAN (6) 4cm fans Power Supply Type RPSU Input Range AC 100-240V/9A Frequency 50-60 Hz Output Watts 650 Watts Efficiency 80 plus Platinum Redundancy 1+1 Serviceability Hot-swap Processor Qty / Socket Type (1) AMD Socket SP3 Supported CPU Series (1) AMD EPYC 7000 Series Processor System Bus 1066/ 800/ 533 MHz Average CPU Power (ACP) Wattage Max up to 180W Memory Supported DIMM Qty (16) DIMM slots DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM 2666/2400 Capacity Up to 1,024GB RDIMM/LRDIMM Memory channel 8 Channels per CPU Memory voltage 1.2V
Tyan System B8026G62FV10HR-LE 1U RM Single Socket AMD EPYC 10x2.5 inch HS Brown Box
Starting atContact Sales
System Form Factor 1U Rackmount Chassis Model GT62F Motherboard Name S8026GM2NR-LE Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) PWR / (1) HDD / (2) LAN / (1) BMC event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (10) 2.5" Hot-Swap SSD/HDD HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface (10) SATA 6Gb/s
Tyan System J3250T70W12HR-U8 2U RM 12x3.5/2.5 inch Hot Swap 450W Hot Swap RPS 80+G SAS 12GB JBOD Br
Starting atContact Sales
System Form Factor: 2U Rackmount Chassis Model: TN70J Expander Controller Board: E3250-12I4E-U8 Front Panel Buttons: 1 x PWR / 1 x RST / 1 x ID LEDs: 1 x ID / 1 x Warning External Drive Bay Type / Qty: 2.5 inch/3.5 inch Hot-Swap / (12) / (Need a discrete HBA/RAID adapter to enable ) HDD backplane support: SAS 12Gb/s/ SATA 6Gb/s System Cooling Configuration FAN: 2 x 6cm fans Power Supply Type: ERP1U Input Range: 100 to 127V AC/5.5A / 200 to 240V AC/3A Frequency: 50-60 Hertz Output Watts: 450 Watts Efficiency: PFC / 80 plus gold Redundancy: 1+1 Expander Controller board Expander Controller: LSI SAS 3X24R Connector: 3 x mini-SAS HD connectors Speed: 12.0 Gb/s RAID Controller/Controller: JBOD/ Single Connector configuration: 1x SAS-IN and 2x SAS-OUT (Def.) Note: Mini-SAS HD Ports can be configured as: 3x SAS-IN ports, 2x SAS-IN and 1x SAS-OUT or share storage. For those configuration, please contact Tyans technical support
Tyan Transport SX GT62F-B8026 (B8026G62FE10HR) Socket SP3 650W 1U Rackmount Server Barebone System
Starting atContact Sales
Mfr Part Number: B8026G62FE10HR Motherboard: S8026GM2NRE Processor: Socket SP3 Support AMD EPYC 7000 Series Processor Support up to 180W CPU Chipset: N/A Memory: 16x DDR4-2666/ 2400 RDIMM/LRDIMM Slots, 8 Channels per CPU, ECC, Max Capacity up to 1024GB Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length), 1x PCI-Express 3.0 x16 OCP 2.0 Slot (conn.A+conn.B) Storage: M.2: 2x NVMe M.2 Ports, Supports 22110/2280/2260/2242 (by PCI-E & SATA interface) U.2: 10x NVMe U.2 Ports Video: Aspeed AST2500 Graphics LAN: 2x Broadcom BCM5720 Gigabit Ethernet Controllers, Realtek RTL8211E PHY dedicated for IPMI Gigabit LAN Controller Drive Bays: 10x Hot-Swap NVMe U.2 Drive Bays Ports: 4x USB 3.0 Ports (2 rear, 2 front), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: 1U Rackmount Power Supply: 650W 80 Plus Platinum 1+1 RPSU Power Supply, AC 100-240V/9A, 50~60Hz System Cooling: 4x 4cm Fans Front Panel: Buttons: RST, ID, PWR w/ LED LEDs: PWR, HDD, 2x LAN, BMC event Dimensions (WxDxH): 17.20 x 24.60 x 1.72 inch / 436.0 x 625.4 x 43.6 mm Weight: 23.5 Ibs / 10.5 kg RoHS Compliant
Tyan Transport SX GT62F-B8026-LE (B8026G62FV10HR-LE) Socket SP3 650W 1U Rackmount Server Barebone
Starting atContact Sales
Mfr Part Number: B8026G62FV10HR-LE Motherboard: S8026GM2NR-LE Processor: Socket SP3 Support AMD EPYC 7000 Series Processor Support up to 180W CPU Chipset: N/A Memory: 16x DDR4-2666/ 2400 RDIMM/LRDIMM Slots, 8 Channels per CPU, ECC, Max Capacity up to 1024GB Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length), 1x PCI-Express 3.0 x16 OCP 2.0 Slot (conn.A+conn.B) Storage: SATA: 10x SATA3 Ports M.2: 2x NVMe M.2 Ports, Supports 22110/2280/2260/2242 (by PCI-E & SATA interface) Video: Aspeed AST2500 Graphics LAN: 2x Broadcom BCM5720 Gigabit Ethernet Controllers, Realtek RTL8211E PHY dedicated for IPMI Gigabit LAN Controller Drive Bays: 10x Hot-Swap 2.5" Drive Bays Ports: 4x USB 3.0 Ports (2 rear, 2 front), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: 1U Rackmount Power Supply: 650W 80 Plus Platinum 1+1 RPSU Power Supply, AC 100-240V/9A, 50~60Hz System Cooling: 4x 4cm Fans Front Panel: Buttons: RST, ID, PWR w/ LED LEDs: PWR, HDD, 2x LAN, BMC event Dimensions (WxDxH): 17.20 x 24.60 x 1.72 inch / 436.0 x 625.4 x 43.6 mm Weight: 23.5 Ibs / 10.5 kg RoHS Compliant
