Product Overview

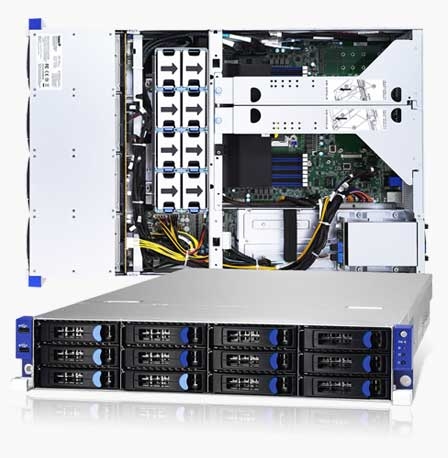

System Form Factor:2U Rackmount Chassis Model:TN76 Dimension (D x W x H):29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm) Motherboard Name:S7102GM2NR-2T Gross Weight:37 kg (82 lbs) Net weight:28 kg (62 lbs) Front Panel Buttons:(1) ID / (1) PWR w/ LED LEDs:(1) ID / (1) Warning I/O Ports:(1) USB 3.0 port External Drive Bay Qty / Type:(12) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(12) SATA 6Gb/s System Cooling Configuration FAN:(12) 6cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:1,200 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification:205W CPUs are supported by purchasing FRU-TH-0220 option with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(1) PCI-E Gen3 x8 OCP 2.0 slot (conn.A+conn.C) / (2) PCI-E Gen3 x16 slots (Full-height, 10.5" length, Double-width) or (4) PCI-E Gen3 x8 slots (Full-height, 10.5" length, Single-width) split by Mux. / (1) PCI-E Gen3 x8 storage mezz. slot Pre-install TYAN Riser Card:MP016T76-L16-1F / (1) M7102T76-R16-2F riser card for (2) PCI-E Gen3 x16 slots / (1) M7102T76-L16-2F riser card for (2) PCI-E Gen3 x16 slots
