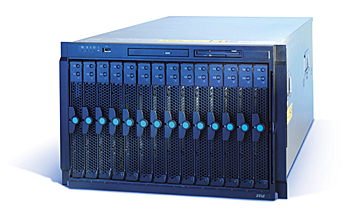

Intel SBCE, 14x Blade Slots, 2x HS Management/4x HS Switch Modules Bays, 2x 2000W, 7U RM Chassis
Starting atContact Sales
Expand Data Center Capacity As the number of servers in your data center grows, so do your deployment and management headaches. In fact, with traditional pedestal and rack servers, data center staffing costs seem to grow dramatically as the data center grows. Now, the Intel® Blade Server Chassis SBCE lets you add servers to your data center while actually decreasing deployment and service work. Blade computing introduces a new data center paradigm where many ultra-thin compute blades share centralized resources such as power supplies, fans and network switches in a single chassis. The Intel Blade Server Chassis SBCE is an example of state-of-the-art blade engineering that allows you to greatly expand computing power while reducing management resources.

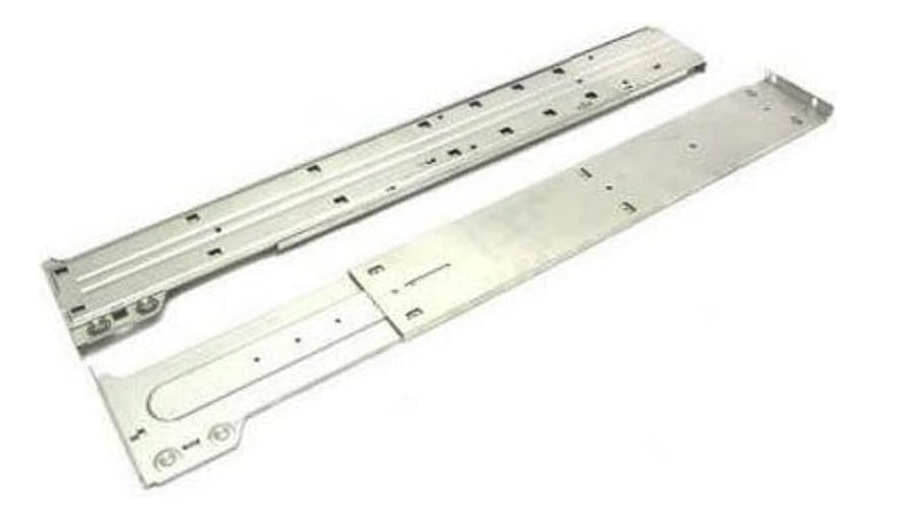

MCP-290-00010, Heavy Duty Sliding Rail(a pair) via SuperBlade
Starting atContact Sales
MCP-290-00010, Heavy Duty Sliding Rail(a pair) via SuperBlade

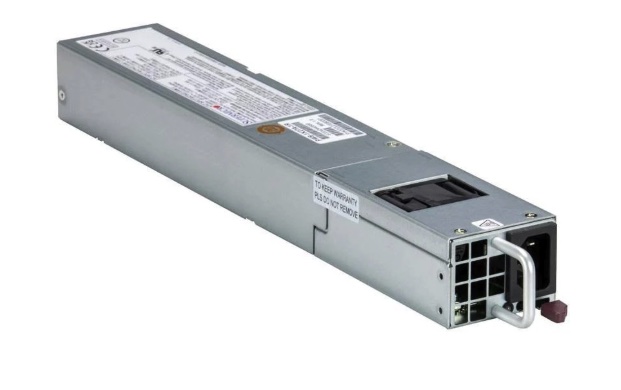

PWS-1K27A-1R, 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
Starting atContact Sales
PWS-1K27A-1R, 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
Super 10x TwinBlade®(2x Nodes) E5-2600v4 Server
Starting atContact Sales
The Supermicro TwinBlade is the most technologically advanced blade server system in the industry. Supporting up to 120 DP servers with 240 Intel® Xeon® E5-2600 v3 family processors per 42U rack, the TwinBlade achieves an unmatched 0.35U per DP node. With N+1 redundant, high efficiency (94%) 2500W/3000W power supplies, the TwinBlade is the Greenest, most energy-efficient blade server in the industry. Networking options include up to two 4x FDR (56Gbps) InfiniBand switches, up to two 1/10GbE or 10GbE switches, and/or a 1GbE pass-through mdoule. They give the TwinBlade the bandwidth to support the most demanding applications. Onboard IPMI 2.0 with KVM over IP and remote Virtual Media over LAN enables ease of management and control.
Super DataCenterBlade®(14x Nodes) E5-2600v4 Server
Starting atContact Sales
The innovative SuperBlade® offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade® module delivers true server functionality including up to four processors (in select models), optional InfiniBand mezzanine HCA, and supports either SATA or SAS hard drives. To protect customer's investment, each blade module is fully upgradeable for future CPUs. The common system architecture ensures each blade is fully inter-changeable as well.
Super GPU Blade®(10x Nodes) E5-2600v4 Server
Starting atContact Sales
The innovative SuperBlade® offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade® module delivers true server functionality including up to four processors (in select models), optional InfiniBand mezzanine HCA, and supports either SATA or SAS hard drives. To protect customer's investment, each blade module is fully upgradeable for future CPUs. The common system architecture ensures each blade is fully inter-changeable as well.
Super MBM-GEM-001, 2x 40Gb QSFP or 8x 10Gb/SFP+ Uplinks,56x 2.5Gb or 1Gb Downlinks MicroBlade Switch
Starting atContact Sales
MicroBlade SDN Switch Module (MBM-GEM-001) General Specifications Intel® FM5224 GbE Low Latency Switch 1Gbps RJ45, 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks 56x 2.5Gbps or 1Gbps downlinks 1 Console port 1 USB port Switching Capacity 442Gbps Physical Layer Features Jumbo frames up to 9KB 40 gigabit optical/copper 10 gigabit optical Ethernet SFP+/copper 1 gigabit RJ45 Ethernet 1 gigabit optical Ethernet copper Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ac VLAN tagging IEEE 802.1AX LAG IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advanced Layer 2 Features Storm control Flow control Port mirroring Static MAC filtering UDLD Uplink Failure Detection (UFD) Data Center Features L2 Data Center Bridging CEE v1.01 DCB for PFV/ETS

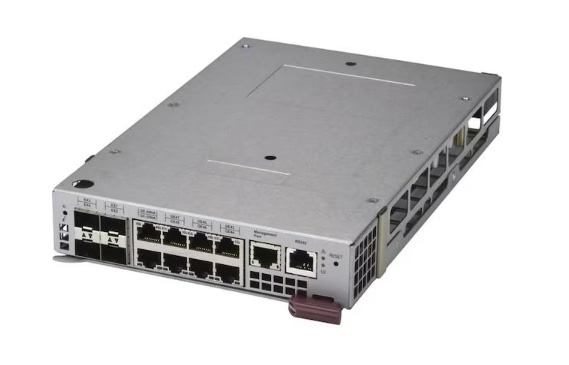

Super MBM-GEM-003S, Intel embedded switch + PN SDF Software MicroBlade Switch
Starting atContact Sales
MicroBlade Switch Module (MBM-GEM-003S) Advanced Virtualization and Fabric Clustering Fabric Cluster Fabric-wide Analytics VXLANs VXLANs central MAC learning VTEP (VXLAN Gateway) Layer 2 Features MAC address caching and ARP pruning Layer 2 Switch ports VLAN Encapsulation 802.1Q Spanning Tree Protocol (STP) 802.1d STP Port Fast STP PVST LLDP 802.1AB Jumbo Frames (9216 bytes) Layer 3 IPv4 and IPv6 Features Routing Protocols (Static, RIP, OSPF, BGP) IEEE 802.3ad Link Aggregation and Link Aggregation Control Protocol (LACP) Multi-Chassis Link Aggregation VLAG Multi-Chassis Link Aggregation (flow-based bridged or routed multicast/unicast traffic) High Availability Cluster Data Center Bridging Edge Virtual Bridging (IEEE 802.1Qbg) Multicast Internet Group Management Protocol (IGMP) and IGMP Snoopiing v2 and v3 Protocol Independent Multicast (PIM) Source Specific Mode (PIM-SSM) Quality of Service (QoS) vFlow-based QoS Classification Layers 2, 3, 4 Layer 2 802.1p Class of Service (CoS) Differentiated Services Code Point (DSCP)
Super MBM-GEM-003i, Intel embedded switch + PN IPS Software MicroBlade Switch
Starting atContact Sales
MicroBlade Switch Module (MBM-GEM-003i) Layer 2 Features Layer 2 Switch ports VLAN Encapsulation 802.1Q Spanning Tree Protocol (STP) 802.1d STP Port Fast STP PVST LLDP 802.1AB Jumbo Frames (9216 bytes) Layer 3 IPv4 and IPv6 Features Routing Protocols (Static, RIP, OSPF, BGP) IEEE 802.3ad Link Aggregation and Link Aggregation Control Protocol (LACP) Multicast Internet Group Management Protocol (IGMP) and IGMP Snoopiing v2 and v3 Protocol Independent Multicast (PIM) Source Specific Mode (PIM-SSM) Quality of Service (QoS) Layer 2 802.1p Class of Service (CoS) Differentiated Services Code Point (DSCP) Security and ACLs TACACS+ SSH v2 Layer 2 ACLs - source and destination MAC, VLAN and or EtherType-based Layer 3 ACLs - source and destination IP/mask, protocol and TCP/UDP port-based Storm control, port error disable, and auto-recovery Control Plane Denial of Service (DoS) protection Static Address Resolution Protocol Filter Actions - logging, system, reject, mirror to an interface, counters assign forwarding class, permit, drop, police, mark Secure Socket Layer (SSL) Management Secure File Transfer Protocol (SFTP) server SNMP v1, v2, v3 Syslog Enhanced SNMP MIB Support Role-based Access Management (RBAC) Traffic Mirroring Port Mirror to remote destination (SPAN) Statistics sFlow

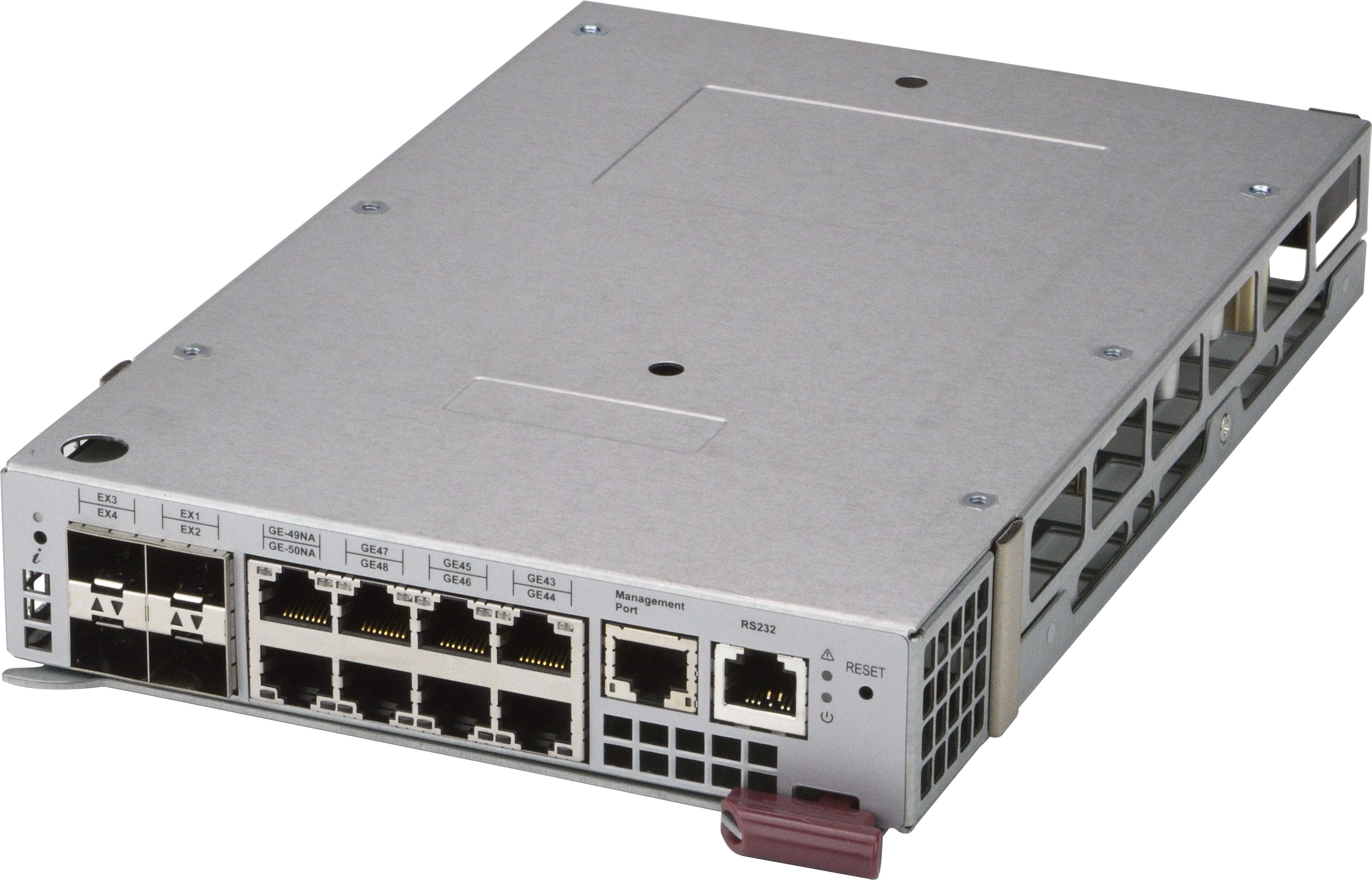

Super MBM-GEM-004, Broadcom Embedded, 4x 10Gb/SFP+ & 8x 1Gb(Up), 28x 1Gb(Down) MicroBlade SDN Switch
Starting atContact Sales
MicroBlade SDN Switch Module (MBM-GEM-004) General Specifications Broadcom BCM56151 1GbE Switch 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks 28x 1Gbps downlinks 1 Console port Switching Capacity 176Gbps Physical Layer Features Jumbo frames up to 9KB 10 gigabit optical Ethernet SFP+/copper 1 gigabit RJ45 Ethernet Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advanced Layer 2 Features Storm control Flow control Port mirroring Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists (to 4K) SSH, SSL Encryption System Management Industry Standard CLI SNMP v1/v2/v3 SSH Syslog DHCP (Client) Web-based management interface NTP RMON Multicast IGMP Snooping Weight 3.1lbs/1.4kg Dimensions (W x D x H) 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Super MBM-XEM-001, 4x 40Gb QSFP Uplinks, 56x 10Gb or 1Gb Downlinks Microlade Switch
Starting atContact Sales
MicroBlade SDN Switch Module (MBM-XEM-001) General Specifications Intel® FM6348 10GbE Low Latency Switch 4x 40Gbps QSFP uplinks 56x 10Gbps or 1Gbps downlinks 1 Console port 1 USB port Switching Capacity 960Gbps Physical Layer Features Jumbo frames up to 9KB 40 gigabit optical/copper 1 gigabit optical Ethernet copper Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ac VLAN tagging IEEE 802.1AX LAG IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advanced Layer 2 Features Storm control Flow control Port mirroring Static MAC filtering UDLD Uplink Failure Detection (UFD) Data Center Features L2 Data Center Bridging CEE v1.01 DCB for PFV/ETS SDN Open Flow 1.x Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists (to 4K) SSH, SSL Encryption System Management XML-RPC Industry Standard CLI Command completion Content-sensitive "Help" SNMP v1/v2/v3 SSH TFTP Client Syslog DHCP (Client) Web-based management interface ¿ (future) ¿¿ HTTP/HTTPS NTP

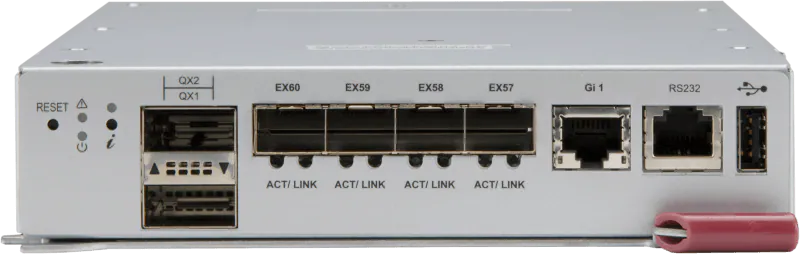

Super MBM-XEM-002+, 2x40G/QSFP+,4x10G/SFP+,1x 1G uplinks,56x 10/1Gbps downlinks,1 Console & USB Port
Starting atContact Sales
Super MBM-XEM-002+, 2x 40Gb QSFP Uplinks, 56x 10Gb or 1Gb Downlinks Microlade Switch with RJ45
Super MBM-XEM-002, 2x40G/QSFP+, 4x10G/SFP+ uplinks, 56x 10/1Gbps downlinks, 1 Console & USB port,
Starting atContact Sales
Super MBM-XEM-002, 2x40G/QSFP+ and 4x10G/SFP+ uplinks, 56x 10/1Gbps downlinks, 1 Console & USB port,
Super MBM-XEM-100, 4x 40G/100G Ethernet Uplinks, 56x 10Gb Downlinks Microlade Switch
Starting atContact Sales
MBM-XEM-100 General Specifications 56x 10G Ethernet downlink 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables 1x Gigabit Ethernet uplink 1 console port Switching Capacity 1060Gbps Physical Layer Features 100G/40G optical/copper QSFP28 Gigabit Ethernet copper RJ45 Layer 2 Features 4K VLANs Spanning Tree Protocol (802.1D) Rapid Spanning Tree Protocol (802.1w) IEEE 802.lQ VLANs/ port-based VLANs Multiple Spanning Tree Protocol (802.1s) Jumbo frames up to 9KB IEEE 802.1AX LAG IEEE 802.3ac VLAN tagging IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists SSH, SSL Encryption DHCP Snooping System Management Industry Standard CLI Web-based management interface ¿ HTTP/HTTPS Syslog SSH SNMP v1/v2/v3 NTP Content-sensitive "Help" Auto Command completion TFTP Client XML-RPC Blade Network Manager (BNM) Multicast IGMP Snooping Weight 3.2lbs/1.5kg Dimensions (W x D x H) 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") Download Switch Configuration User's Guide [ Download ]
Super MicroBlade(28x Node) Twin Xeon D-1581 Server
Starting atContact Sales
The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U all-in-one total system that features 28 hot-swappable MicroBlade Modules supporting 28x Newest Xeon DP systems with Twin Intel Xeon® processor D-1541 configurations with up to 1x 2.5" 6Gb/s SATA3 HDD/SSD and a SATA DOM per Module. The MicroBlade enclosure can incorporate 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/1400/1200W High-Efficiency (95%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, dedicated hosting, Web front end, content delivery, social networking applications.
Super MicroBlade®(20x Nodes) 13th Gen Core Server
Starting atContact Sales
InMotion Hosting Delivers Hyperconverged Infrastructure for OpenStack On-Demand Private Clouds in Less Than an Hour: Supermicro MicroBlade® offers high density and cost efficiencies for a full featured cloud computing experience to enable OpenStack as a Service. Key Applications - Cloud Gaming - E-commerce - Cloud Computing - Content Creation - Web/Collocation Services - Web Cache, CDN, Video Streaming - Social Networking, Downloads - Corporate - WINS, DNS, Print, Login Key Features: *140 UP nodes per 42U Rack *20 UP nodes in 6U *Single socket (LGA 1700) supports 13th Gen Intel® Core® processors.
Super MicroBlade®(28x Nodes) Atom® C2750 Server
Starting atContact Sales
The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U all-in-one total system that features 28 hot-swappable MicroBlade Modules supporting 112 ultra-low power Intel® Atom C2750 product family configurations with up to 4 HDDs/SSDs and 4 SATA DOMs per Module. The MicroBlade enclosure can incorporate 1 Chassis Management Modules, and up to 4 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/1400/1200W High-Efficiency (95%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, dedicated hosting, Web front end, content delivery, social networking applications.
Super MicroBlade®(28x Nodes) E-2200 Server
Starting atContact Sales
The Supermicro MicroBlade represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U/3U all-in-one total system that features 28/14 hot-swappable MicroBlade Server nodes supporting 28/14 Newest Dual-Node Xeon UP systems with Intel E-2100/E-2200 family configurations with up to 2 SSDs/1 HDD per Node. The 6U/3U MicroBlade enclosure can incorporate up to 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/2000W high-efficiency (95%/96%) power supplies with cooling fans. This innovative new generation architecture includes server, networking, storage, and unified remote management for Cloud Computing, Video Streaming, Content Delivery, Social Networking, Desktop Virtualization and Remote Workstation applications.
Super MicroBlade®(28x Nodes) E3-1200v3+2.5" Server
Starting atContact Sales
The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U all-in-one total system that features 28 hot-swappable MicroBlade Modules supporting 28x Newest Xeon DP systems with Intel E3-1200 v3 family configurations with up to 2 HDDs/SSDs and a SATA DOM per Module. The MicroBlade enclosure can incorporate 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/1400/1200W High-Efficiency (95%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, dedicated hosting, Web front end, content delivery, social networking applications.
Super MicroBlade®(28x Nodes) E3-1200v3+3.5" Server
Starting atContact Sales
The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U all-in-one total system that features 28 hot-swappable MicroBlade Modules supporting 28x Newest Xeon DP systems with Intel E3-1200 v3 family configurations with up to 2 HDDs/SSDs and a SATA DOM per Module. The MicroBlade enclosure can incorporate 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/1400/1200W High-Efficiency (95%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, dedicated hosting, Web front end, content delivery, social networking applications.
