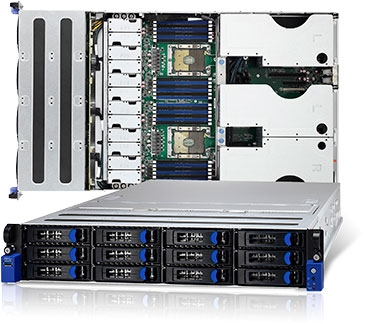

Product Overview

System Form Factor:2U Rackmount Chassis Model:TN76 Dimension (D x W x H):29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm) Motherboard:S7102GM2NR-2T Gross Weight:37 kg (82 lbs) Net weight:28 kg (62 lbs) Front Panel Buttons:(1) ID / (1) PWR w/ LED LEDs:(1) ID / (1) Warning I/O Ports:(1) USB 3.0 port External Drive Bay Type / Qty:3.5"/2.5 Hot-Swap / (12) HDD backplane support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(12) SATA 6Gb/s System Cooling Configuration FAN:(12) 6cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:1,200 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Socket Type / Qty:LGA3647/ (2) Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage:Max up to 165W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(4) PCI-E Gen3 x8 slots (w/ x8/x0 link) / (4) PCI-E Gen3 x16 slots (w/ x8/x16 link) Pre-install TYAN Riser Card:M7102T76-R16-2F / (2) M7102T76-L16-2F Others:(1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.C) / (1) PCI-E Gen3 x8 storage mezz. slot LAN Port Qty(2) 10GbE ports / (1) PHY Controller:Intel X550-AT2 PHY:Realtek RTL8211E Storage SATA:Connector:(2) Mini-SAS HD (8-ports) Controller:Intel C621 Speed:6.0 Gb/s RAID:RAID 0/1/10/5 (Intel RSTe) sSATA:Connector:(2) SATA/SATA-DOM / (1) Mini-SAS HD (4-ports) Controller:Intel C621 Speed:6.0 Gb/s RAID:RAID 0/1/10/5 (Intel RSTe) NVMe:Connector (M.2):(1) 2242 (by PCI-E interface) / (1) 2280 (by PCI-E interface)
