Product Overview

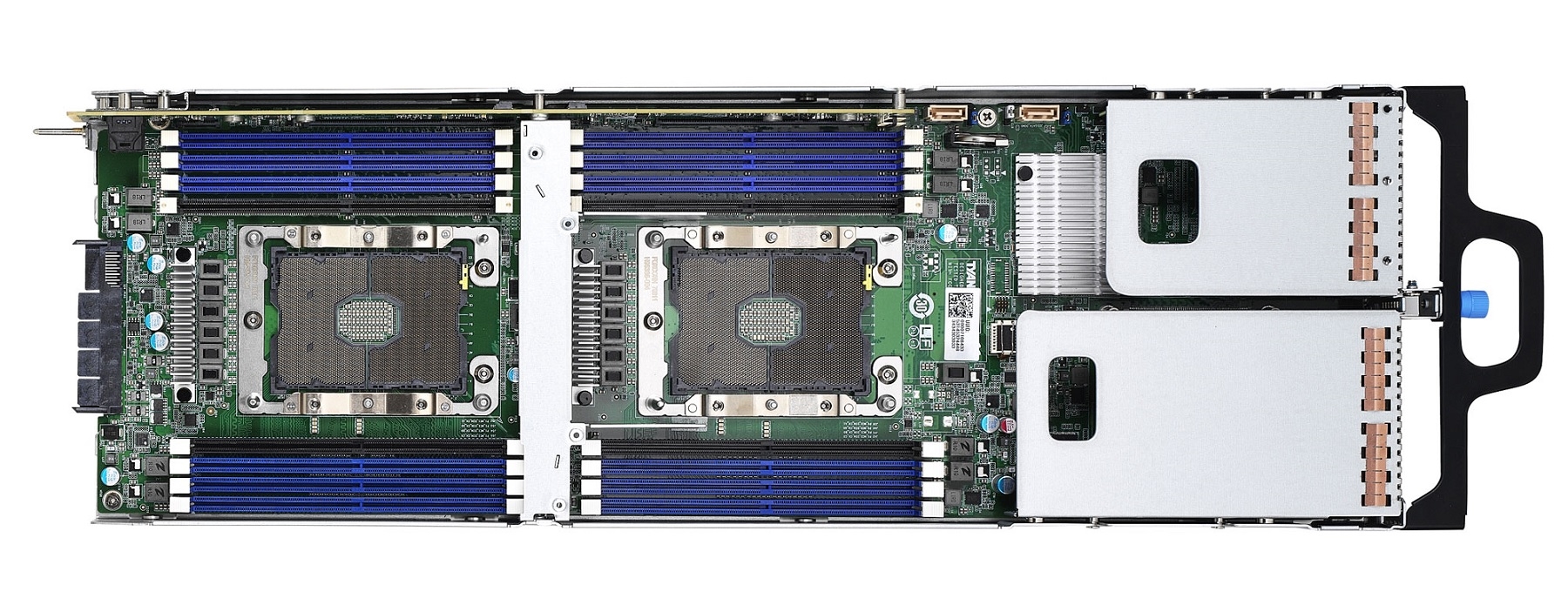

System Form Factor: 2U Rackmount Chassis Model: TN200 Motherboard Name: (4) S7108GMR (4 blades in one chassis) Board Dimension: 6.79" x 20.26" (172.4 x 514.7mm) Blade Dimension (D x W x H): 20.66" x 7.06" x 1.6" (524.8 x 179.3 x 40.7mm) Feature: Four blades in one chassis Front Panel Buttons: (4) ID w/ LED / (4) PWR w/ LED I/O Ports: (4) Display ports (2 x USB2.0 + 1 x D-SUB VGA ports w/ via cable, per port ) External Drive Bay (per blade) Qty / Type: (3) 3.5" Hot-Swap HDD Bays, Total (12) devices HDD backplane support: (12) SAS 12Gb/s / SATA 6.0Gb/s Supported HDD Interface: SATA 6Gb/s System Cooling Configuration (per blade) FAN: (4) 8cm fans Processor (per blade) Qty / Socket Type: (2) LGA3647 Supported CPU Series: Intel Xeon Processor Scalable Families Thermal Design Power (TDP) wattage: Max up to 165W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification: 165W CPUs are supported with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset (per blade) PCH: Intel C621 Memory (per blade) Supported DIMM Qty: (8)+(8) DIMM slots DIMM Type / Speed: Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 6 Channels per CPU Memory voltage: 1.2V Expansion Slots (per blade) PCI-E: (1) PCI-E Gen3 x16 slot (Half-height, Half-length) / (1) PCI-E Gen3 x8 slot (Half-height, Half-length) / (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B+conn.C) Pre-install TYAN Riser Card: (1) M7108T200-L16-1L riser card for (1) PCI-E Gen3 x16 slot / (1) M7108T200-R8-1L riser card for (1) PCI-E Gen3 x8 slot LAN (per blade) Qty / Port: (1) PHY PHY: Realtek RTL8211E
