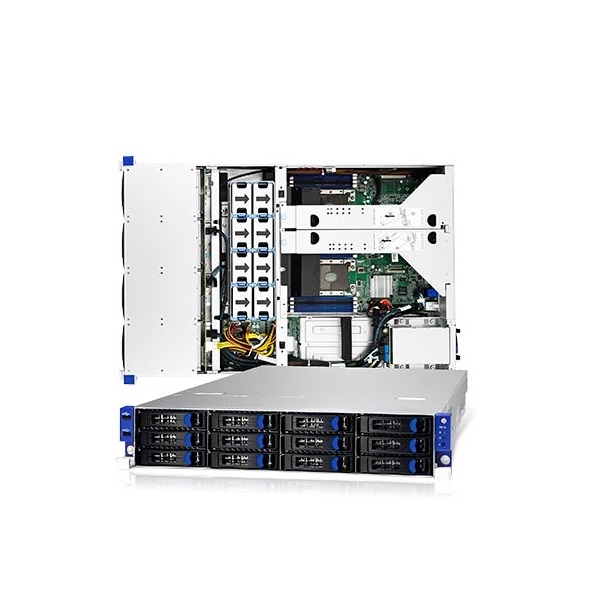

Product Overview

System Form Factor : 2U Rackmount Chassis Model : TN70E Motherboard Name : S7106GM2NR Front Panel Buttons: (1) RST / (1) PWR w/ LED / (1) UID LEDs : (1) ID / (1) UID / (1) BMC event I/O Ports : (2) USB 2.0 ports External Drive Bay Qty / Type : (12) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (12) SATA 6Gb/s Internal Drive Bay Type / Qty : (2) 2.5" Hot Swap SSD Supported HDD Interface : (2) SATA 6Gb/s System Cooling Configuration FAN : (8) 6cm fans Power Supply Type : RPSU Input Range : AC 100-127V/10A / AC 200-240V/5A Frequency : 50-60 Hz Output Watts : 770 Watts Efficiency : 80 plus Platinum Redundancy : 1+1 Processor Qty / Socket Type : (2) LGA3647 Supported CPU Series : Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage : Max up to 205W System Bus : Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification : 205W CPUs are supported by purchasing FRU-SO-9140 option with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset PCH : Intel C621
