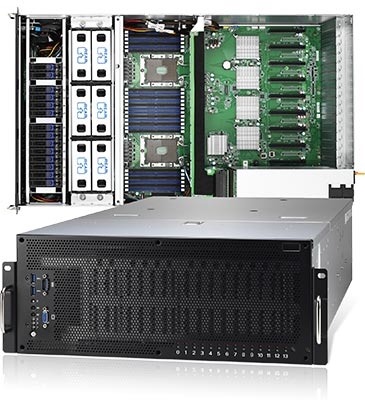

Product Overview

System Form Factor:4U Rackmount Chassis Model:FT77D Dimension (D x W x H):30.31" x 17.24" x 6.93" (770 x 438 x 176mm) Motherboard:S7109GM2NR-2T Gross Weight:45 kg (99.5 lbs) Net weight:26 kg (57.5 lbs) Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports:(2) USB 3.0 port External Drive Bay Type / Qty:2.5" Hot-Swap SSD/HDD/ (14) HDD backplane support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(14) SATA 6Gb/s System Cooling Configuration FAN:(6) 12cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.9A / AC 200-240V/9.5A Frequency:47-63 Hz Output Watts:2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency:PFC / 80 plus Platinum Redundancy:2+1 Processor Socket Type / Qty:LGA3647/ (2) Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Switch IC:(4) PLX PEX8747 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(9) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 Tyan Mezzanine slots Pre-install TYAN Riser Card:M2215-L8-1F / M2217-L16-IO LAN Port Qty:(2) 10GbE ports / (1) PHY Controller:Intel X550-AT2 PHY:Realtek RTL8211E
