Product Overview

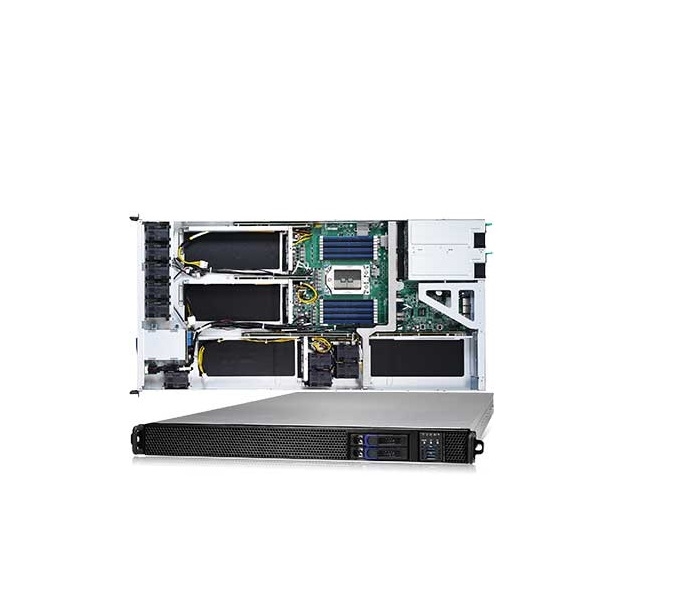

System Form Factor : 1U Rackmount Chassis Model : GA88 Motherboard Name : S8021GM2NR-2T Front Panel Buttons : (1) RST / (1) PWR w/ LED / (1) UID LEDs : (1) PWR / (2) LAN / (1) UID / (1) BMC event I/O Ports : (2) USB 3.0 ports External Drive Bay Qty / Type : (2) 2.5" Hot-Swap SSD/HDD HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (2) SAS 12Gb/s / SATA 6Gb/s System Cooling Configuration Redundancy : Yes FAN : (10) 4cm fans Heat Sink : (1) Passive CPU Heat sink Power Supply Type : ERP1U Input Range : AC 100-127V/12A / AC 200-240V/9.48A Frequency : 47-63 Hz Output Watts : 1600 Watts Efficiency : 80 plus Platinum Redundancy : 1+1 Processor Qty / Socket Type : (1) AMD Socket SP3 Supported CPU Series : (1) AMD EPYCTM 7000 Series Processor System Bus : 1066/ 800/ 533 MHz Average CPU Power (ACP) Wattage : Max up to 180W Memory Supported DIMM Qty : (16) DIMM slots DIMM Type / Speed : DDR4 ECC RDIMM/LRDIMM 2666/2400 Capacity : Up to 2,048GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Actual memory speed depends on memory population topology Memory channel : 8 Channels per CPU Memory voltage : 1.2V
