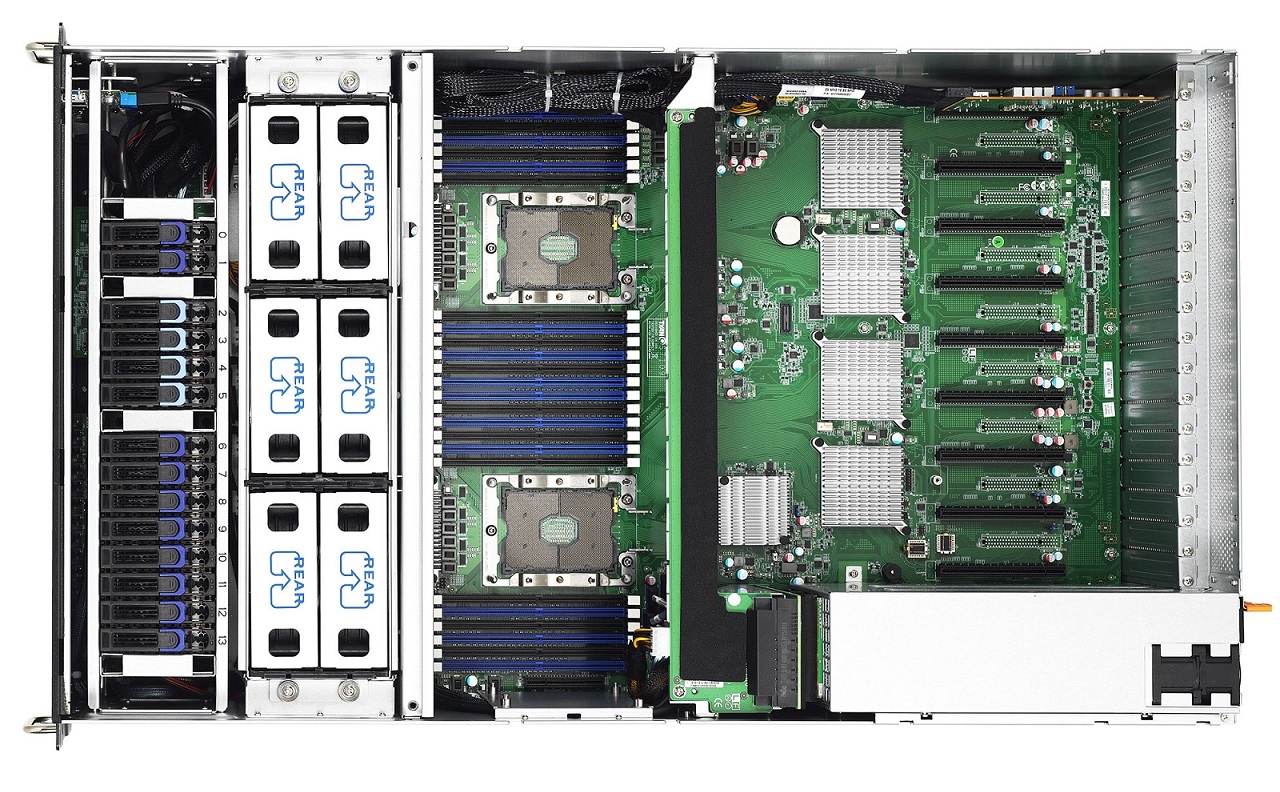

Product Overview

System Form Factor: 4U Rackmount Chassis Model: FT77D Motherboard Name: S7109GM2NR-2T Front Panel Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports: (2) USB 3.0 ports Internal Drive Bay Qty / Type: (10) 2.5" Hot-Swap SSD/HDD + (4) NVMe HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe Supported HDD Interface: (10) SATA 6Gb/s + (4) NVMe System Cooling Configuration Redundancy: Yes FAN: (5+1) hot-swap 12cm fans Power Supply Type: RPSU Input Range: AC 100-127V/12.9A / AC 200-240V/9.5A Frequency: 47-63 Hz Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency: PFC / 80 plus Platinum Redundancy: 2+1 Processor Qty / Socket Type: (2) LGA3647 Supported CPU Series: Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage: Max up to 205W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH: Intel C621 Switch IC: (4) PLX PEX8747 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 6 Channels per CPU Memory voltage: 1.2V Expansion Slots PCI-E: (8) PCI-E Gen3 x16 slots (Full-height, Full-length, Double-width) / (1) PCI-E Gen3 x8 storage mezz. slot / (1) PCI-E Gen3 x8 LAN mezz. slot Pre-install TYAN Riser Card: (1) M2215-L8-1F riser card for (1) LAN mezz. slot / (1) M2217-L16-IO riser card for (1) storage mezz. Slot LAN Qty / Port: (2) 10GbE ports / (1) PHY Controller: Intel X550-AT2 PHY: Realtek RTL8211E Storage SATA Connector: (2) Mini-SAS HD (8-ports) Controller: Intel C621 Speed: 6.0 Gb/s RAID: RAID 0/1/10/5 (Intel RSTe) sSATA Connector: (2) SATA-III Speed: 6.0 Gb/s RAID: RAID 0/1/10/5 (Intel RSTe) NVMe Connector (OCuLink): (2) SFF-8612 for (4) NVMe ports via Tyan M2093 PCI-E Gen3 x16 Card
