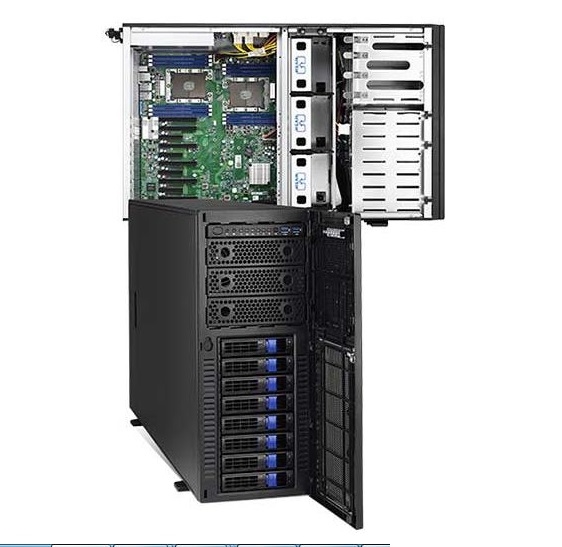

Product Overview

System Form Factor 4U Tower Chassis Model FT48T Motherboard Name S7105AGM2NR-2T Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (3) 5.25" device bays + (8) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support SATA 6.0Gb/s Supported HDD Interface (8) SATA 6Gb/s System Cooling Configuration Redundancy Yes FAN (3) hot-swap 12cm fans Heat Sink (2) Passive CPU Heat sinks Power Supply Type RPSU Input Range AC 100-127V/24A / AC 220-240V/10A Frequency 47-63 Hz Output Watts 2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency 80 plus Platinum Redundancy 1+1 Serviceability Hot-swap Processor Qty / Socket Type (2) LGA3647 Supported CPU Series Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage Max up to 205W System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH Intel C621 Memory Supported DIMM Qty (6)+(6) DIMM slots DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel 6 Channels per CPU Memory voltage 1.2V
