Product Overview

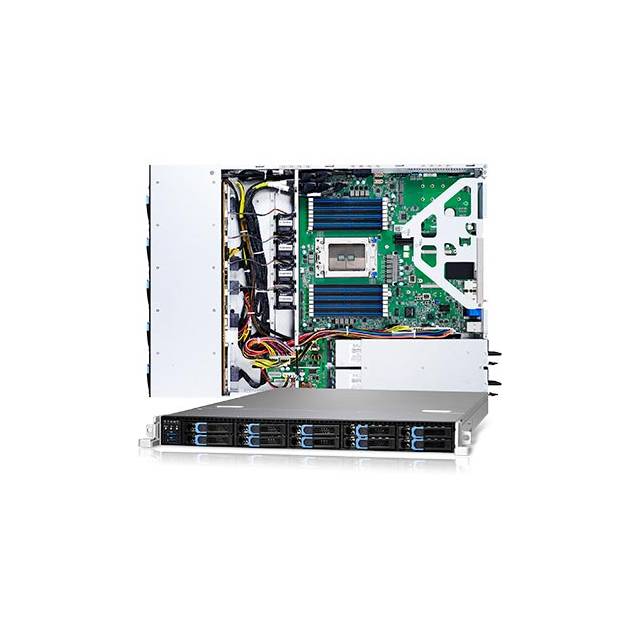

Mfr Part Number: B8026G62FE10HR Motherboard: S8026GM2NRE Processor: Socket SP3 Support AMD EPYC 7000 Series Processor Support up to 180W CPU Chipset: N/A Memory: 16x DDR4-2666/ 2400 RDIMM/LRDIMM Slots, 8 Channels per CPU, ECC, Max Capacity up to 1024GB Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length), 1x PCI-Express 3.0 x16 OCP 2.0 Slot (conn.A+conn.B) Storage: M.2: 2x NVMe M.2 Ports, Supports 22110/2280/2260/2242 (by PCI-E & SATA interface) U.2: 10x NVMe U.2 Ports Video: Aspeed AST2500 Graphics LAN: 2x Broadcom BCM5720 Gigabit Ethernet Controllers, Realtek RTL8211E PHY dedicated for IPMI Gigabit LAN Controller Drive Bays: 10x Hot-Swap NVMe U.2 Drive Bays Ports: 4x USB 3.0 Ports (2 rear, 2 front), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: 1U Rackmount Power Supply: 650W 80 Plus Platinum 1+1 RPSU Power Supply, AC 100-240V/9A, 50~60Hz System Cooling: 4x 4cm Fans Front Panel: Buttons: RST, ID, PWR w/ LED LEDs: PWR, HDD, 2x LAN, BMC event Dimensions (WxDxH): 17.20 x 24.60 x 1.72 inch / 436.0 x 625.4 x 43.6 mm Weight: 23.5 Ibs / 10.5 kg RoHS Compliant
