Tyan GN70B7056 (B7056G70V8HR) Dual LGA2011 770W 2U Rackmount Server Barebone System
Starting atContact Sales
Mfr Part Number: B7056G70V8HR Motherboard: S7056GM3NR Processor: Dual LGA2011 Supports Intel Xeon E5-2600 Series Processors Supports QPI up to 6.4 GT/s Supports up to 130W TDP Chipset: Intel C602 Memory: 16x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots, Quad Channel, Supports up to 256GB REG Memory or up to 128GB Unbuffered Memory Slots: 1x PCI-Express x16 Slot (w/ x16 or x8), 2x PCI-Express x8 Slots Video: Aspeed AST2300 Graphics LAN: Integrated Intel 82574L and Intel I350-BT2 Gigabit Ethernet Controllers Drive Bays: 8x 2.5" or 3.5" hot-swappable SAS/SATA3 HDD bays Ports: 4x USB 2.0 Ports (2 front, 2 via rear), 1x Serial Port, 1x VGA Port, 3x RJ45 LAN Ports Form Factor: 2U Rackmount Power Supply: 770W 80 PLUS Gold EPR1U (1+1) Hot-swap Full-range Power Supply w/ PFC, AC input - 100V-240V, 60Hz System Cooling: 4x 60mm Fans Dimensions (WxDxH): 17.72 x 27.56 x 3.43 inch / 450.0 x 700.0 x 87.0 mm Weight: 25.0 kg
Tyan System B7059F77BV10R-2T 4U Rackmount Xeon E5-2600 v2 10x2.5inch/3.5inch Hotswap 80PLUS PLATINU
Starting atContact Sales
System Form Factor: 4U Rackmount Chassis Model: FT77B Motherboard: S7059GM2NR-2T Front Panel Buttons: (1) RST / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports: (2) USB Ports External Drive Bays Type: (10) 3.5"/2.5" HDDs System Cooling Configuration Fan: (5+1) hot-swap 12cm fans Power Supply Input Range: 100-127V AC / 200-240V AC Output Watts: 3200 Watts Efficiency: 80 PLUS PLATINUM Redundancy: 2+1 Serviceability: Hot-swap Processor Socket: (2) LGA2011 Supported CPU Series Intel Xeon Processor E5-2600 / E5-2600 v2 Series Processor Thermal Design Power (TDP) Wattage: Max up to 150W System Bus: Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset Switch IC: (4) PLX PEX8747 PCH: Intel C602 Memory Supported DIMM: (12) + (12) DIMM Slots DIMM Type/Speed: RDIMM ECC 1866/1600/1333/1066 / UDIMM/LRDIMM ECC 1866/1600/1333/1066 Capacity: Up to 192GB UDIMM / 768GB RDIMM/LRDIMM Memory Channel: 4 Channels Per CPU Memory Voltage: 1.5V or 1.35V
Tyan System B7059F77BV10R-2T-N 4U Rackmount Xeon E5-2600 v2 2xLGA2011 10x2.5inch/3.5inch 80PLUS PLA
Starting atContact Sales
System Form Factor: 4U Rackmount Chassis Model: FT77B Motherboard: S7059GM2NR-2T-N Front Panel Buttons: (1) RST / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports: (2) USB Ports External Drive Bays Type: (10) 3.5"/2.5" HDDs System Cooling Configuration Fan: (5+1) hot-swap 12cm fans Power Supply Input Range: 100-127V AC / 200-240V AC Output Watts: 3200 Watts Efficiency: 80 PLUS PLATINUM Redundancy: 2+1 Serviceability: Hot-swap Processor Socket: (2) LGA2011 Supported CPU Series Intel Xeon Processor E5-2600 / E5-2600 v2 Series Processor Thermal Design Power (TDP) Wattage: Max up to 150W System Bus: Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset Switch IC: (4) PLX PEX8747 PCH: Intel C602 Memory Supported DIMM: (12) + (12) DIMM Slots DIMM Type/Speed: RDIMM ECC 1866/1600/1333/1066 / UDIMM/LRDIMM ECC 1866/1600/1333/1066 Capacity: Up to 192GB UDIMM / 768GB RDIMM/LRDIMM Memory Channel: 4 Channels Per CPU Memory Voltage: 1.5V or 1.35V Expansion Slots Recommended TYAN Mezzanine Card: M7059F77-QDR-2, Dual QSFP IB mezzanine card (40Gb/s) / M7059F77-FDR-2, Dual QSFP IB mezzanine card (56Gb/s) PCI-E: (8) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 slots(one for mezzanine card) / (3) PCI-E Gen2 x1 slots PCI: (1) PCI 32-bit slot
Tyan System B7071T80V8HR-2T-N 2U RM E5-2600v3/v4 2x2011 8x2.5 inch Hot-Swap 1600W Brown Box
Starting atContact Sales
System Form Factor: 2U Rackmount Chassis Model: TA80 Motherboard: S7071GM2NR-2T-N Board Dimension: 8.54" x 19.69" (217 x 500mm) Front Panel Buttons: (1) RST / (1) ID / (1) PWR w/ LED LEDs: (1) ID / (1) Warning I/O Ports: (2) USB ports External Drive Bay Type / Qty: 2.5" Hot-Swap / (8) HDD backplane support: SAS / SATA 6.0Gb/s Supported HDD Interface: (8) SATA 6Gb/s Internal Drive Bay Type / Qty: (2) 2.5" fixed Supported HDD Interface: (2) SATA 6Gb/s System Cooling Configuration FAN: (4) 8cm fans Power Supply Type: ERP1U Input Range: 200-240V AC/9.48A Output Watts: 1600 Watts Max. (only for 200-240V AC) Efficiency: PFC / 80 plus Platinum Redundancy: 1+1 Processor Socket Type / Qty: LGA2011 / (2) Supported CPU Series: Intel Xeon Processor E5-2600 v3/v4 product families Thermal Design Power (TDP) wattage: Max up to 145W System Bus: Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH: Intel C612 Memory Supported DIMM Qty: (8)+(8) DIMM slots DIMM Type / Speed: RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4) Capacity: Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 4 Channels per CPU Memory voltage: 1.2V
Tyan System B7076G62BV10HR 1U Rackmount E5-2600v3 C612 2xLGA2011 10x2.5inch Hot-Swap 6x4cm Fan Brown
Starting atContact Sales
Form Factor 1U Rackmount Chassis Model GT62B Motherboard S7076GM2NR Board Dimension EATX, 12"x13" (305x330mm) Front Panel Buttons: PWR x1 / RST x1 / ID x1 LEDs : HDD x1 / LAN x1/ ID x1/ Warning x1 I/O Ports : USB ports x2 External Drive Bay Type / Qty : 2.5" Hot-Swap x10 HDD backplane support : SAS 12Gb/s/ SATA 6Gb/s Supported HDD Interface : 10 x SATA 6Gb/s FAN 4cm fans x6 Power Supply Type : RPSU Input Range : AC 100-127V/10A / AC 200-240V/5A Frequency: 47 - 63 Hertz Output Watts : 650 Watts Efficiency : 80 plus Platinum Redundancy : 1+1
Tyan System B7079F77CV10HR-2T-N 4U RM E5-2600v3/v4 LGA2011 10x2.5/3.5 inch Hot Swap 2000W Retail
Starting atContact Sales
System Form Factor: 4U Rackmount Chassis Model: FT77C Motherboard: S7079GM2NR-2T-N Front Panel Buttons: (1) RST / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports: (2) USB ports External Drive Bay Type / Qty: 3.5"/2.5" Hot-Swap / (10) HDD backplane support: SAS / SATA 6.0Gb/s Supported HDD Interface: (10) SATA 6Gb/s System Cooling Configuration FAN: (5+1) hot-swap 12cm fans Power Supply Type: RPSU Input Range: 100-127V AC / 200-240V AC Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency: 80 plus Platinum Redundancy: 2+1 Processor Socket Type / Qty: LGA2011 / (2) Supported CPU Series: Intel Xeon Processor E5-2600 v3/v4 product families Thermal Design Power (TDP) wattage: Max up to 160W System Bus: Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH: Intel C612 Switch IC: (4) PLX PEX8747 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4) Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 4 Channels per CPU Memory voltage: 1.2V
Tyan System B7079F77CV10HR-N 4U Rackmount E5-2600v3 2xLGA2011 10x3.5/2.5inch SAS/SATA Brown Box
Starting atContact Sales
System Form Factor:4U Rackmount Chassis Model:FT77C Motherboard:S7079GM2NR-N Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports:(2) USB ports External Drive Bay Type / Qty:3.5"/2.5" Hot-Swap / (10) HDD backplane support:SAS / SATA 6.0Gb/s System Cooling Configuration FAN:(5+1) hot-swap 12cm fans Power Supply Type:RPSU Input Range:100-127V AC / 200-240V AC Output Watts:2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency:80 plus Platinum Redundancy:2+1 Serviceability:Hot-swap Processor Socket Type / Qty:LGA2011 / (2) Supported CPU Series:Intel Xeon Processor E5-2600 v3 series processors Thermal Design Power (TDP) wattage:Max up to 145W System Bus:Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH:Intel C612 Switch IC:(4)PLX PEX8747 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:RDIMM DDR4 2133/1866/1600 / LRDIMM DDR4 2133/1600 / LRDIMM 3DS DDR4 2133/1600 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:4 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(8) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 slots(one for mezzanine card) / (3) PCI-E Gen2 x1 slots Pre-install TYAN Riser Card:M2210-L8-1F, PCI-E Gen3 x8 slot (left)
Tyan System B7081G80V4HR-2T-N 1U RM E5-2600v3/v4 2xLGA2011 4x2.5 inch Hot Swap C612 1600 Retail
Starting atContact Sales
System Form Factor: 1U Rackmount Chassis Model: GA80 Motherboard: S7081GM3NR-2T-N Front Panel Buttons: (1) PWR / (1) RST / (1) ID LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports: (2) USB 2.0 ports External Drive Bay Type / Qty: 2.5" Hot-Swap / (4) HDD backplane support: SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface: (4) SATA 6Gb/s System Cooling Configuration FAN: (9) 4cm fans Power Supply Type: RPSU Input Range: 200-240V AC/9.48A / 100-127V AC/12A Output Watts: 1600 Watts Max. (only for 200-240V AC) Efficiency: PFC / 80 plus Platinum Redundancy: 1+1 Processor Socket Type / Qty: LGA2011 / (2) Supported CPU Series: Intel Xeon Processor E5-2600 v3/v4 product families Thermal Design Power (TDP) wattage: Max up to 135W System Bus: Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH: Intel C612 Memory Supported DIMM Qty: (8)+(8) DIMM slots DIMM Type / Speed: RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4) Capacity: Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 4 Channels per CPU Memory voltage: 1.2V Expansion Slots PCI-E: (1) PCI-E Gen3 x8 slot / (3) PCI-E Gen3 x16 slots Pre-install TYAN Riser Card: M7081-R8-1L, PCI-E Gen3 x8 1U riser card (right) / M7081-R16-1F, PCI-E Gen3 x16 1U riser card (right) / M7081-L16-1F-1, PCI-E Gen3 x16 1U riser card (left) / M7081-L16-1F-2, PCI-E Gen3 x16 1U riser card (left) LAN Port Qty: (2) 10GbE ports, (1) GbE port shared with IPMI Controller: Intel X540-AT2 / Intel I210-AT Storage SATA Connector: (1) Mini-SAS (4-port) SATA Controller: Intel C612 SATA Speed: 6.0 Gb/s SATA RAID: RAID 0/1/10/5 (Intel RSTe)
Tyan System B7081G80V4HR-N 1U RM E5-2600v3/v4 2xS2011 C612 1600W Brown Box
Starting atContact Sales
System Form Factor : 1U Rackmount Chassis Model : GA80 Motherboard : S7081GM3NR-N Front Panel Buttons : (1) PWR / (1) RST / (1) ID LEDs : (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports : (2) USB ports External Drive Bay Type / Qty : 2.5" Hot-Swap / (4) HDD backplane support : SAS 12Gb/s/ SATA 6Gb/s Supported HDD Interface : (4) SATA 6Gb/s System Cooling Configuration FAN : (9) 4cm fans Power Supply Type : RPSU Input Range : 200-240V AC/9.48A Output Watts : 1600 Watts Max. (only for 200-240V AC) Efficiency : PFC / 80 plus Platinum Redundancy : 1+1 Processor Socket Type / Qty : LGA2011 / (2) Supported CPU Series : Intel Xeon Processor E5-2600 v3/v4 product families Thermal Design Power (TDP) wattage : Max up to 135W / Please contact Tyans FAE/Salesman for the detail about CPUs type supporting and system System Bus : Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH : Intel C612 Memory Supported DIMM Qty : (8)+(8) DIMM slots DIMM Type / Speed : RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4) Capacity : Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Memory channel : 4 Channels per CPU Memory : voltage1.2V Expansion Slots Pre-install TYAN Riser Card : M7081-R8-1L, PCI-E Gen3 x8 1U riser card (right) / M7081-R16-1F, PCI-E Gen3 x16 1U riser card (right) / M7081-L16-1F-1, PCI-E Gen3 x16 1U riser card (left) / M7081-L16-1F-2, PCI-E Gen3 x16 1U riser card (left) PCI-E : (1) PCI-E Gen3 x8 slot / (3) PCI-E Gen3 x16 slots
Tyan System B7102G75BV10HR-2T 1U RM Dual Socket Xeon SP 24 DIMMs 2 PCIe Gen3 x16 Retail
Starting atContact Sales
System Form Factor:1U Rackmount Chassis Model:GT75B Motherboard:S7102GM2NR-2T Front Panel Buttons:(1) PWR / (1) RST / (1) UID LEDs:(1) HDD / (2) LAN / (1) Warning / (1) UID I/O Ports:(2) USB 3.0 port External Drive Bay Type / Qty:2.5" Hot-Swap SSD/HDD/ (10) HDD backplane support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(10) SATA 6Gb/s System Cooling Configuration FAN:(4) 4056 fans + (4) 4028 fans Power Supply Type:RPSU Input Range:AC 100-127V/8.9A / AC 200-240V/4.5A Output Watts:750 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Socket Type / Qty:LGA3647/ (2) Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage:Max up to 165W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(2) PCI-E Gen3 x16 slots Pre-install TYAN Riser Card:M2091, PCI-E x16 1U riser card (left) / M2091-R, PCI-E x16 1U riser card (right) Others:(1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.C) / (1) PCI-E Gen3 x8 storage mezz. slot
Tyan System B7102G75BV6E4HR-2T Thunder CX 1U Xeon C621 LGA3647 DDR4 SATA Retail
Starting atContact Sales
System Form Factor: 1U Rackmount Chassis Model: GT75B Motherboard Name: S7102GM2NR-2T Front Panel Buttons: (1) PWR / (1) RST / (1) UID LEDs: (1) HDD / (2) LAN / (1) Warning / (1) UID I/O Ports: (2) USB 3.0 ports External Drive Bay Qty / Type: (6) 2.5" Hot-Swap SSD/HDD + (4) NVMe HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s / NVMe Supported HDD Interface: (6) SATA 6Gb/s + (4) NVMe System Cooling Configuration FAN: (4) 4056 fans + (4) 4028 fans Power Supply Type: RPSU Input Range: AC 100-127V/8.9A / AC 200-240V/4.5A Output Watts: 750 Watts Efficiency: 80 plus Platinum Redundancy: 1+1 Processor Qty / Socket Type: (2) LGA3647 Supported CPU Series: Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage: Max up to 165W System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH: Intel C621 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS (Follow latest Intel DDR4 Memory POR) Memory channel: 6 Channels per CPU Memory voltage: 1.2V

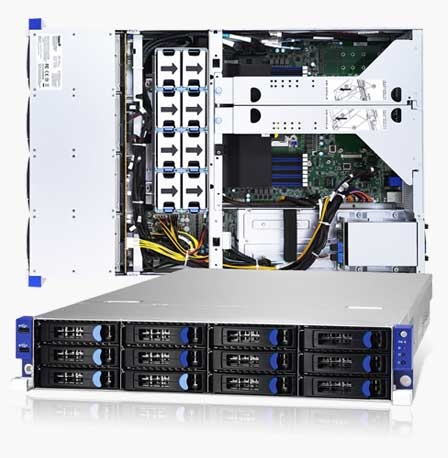

Tyan System B7102T76V12HR-2T-G Thunder SX 2U Xeon C621 S3647 DDR4 SATA Brown Box
Starting atContact Sales
System Form Factor:2U Rackmount Chassis Model:TN76 Dimension (D x W x H):29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm) Motherboard Name:S7102GM2NR-2T Gross Weight:37 kg (82 lbs) Net weight:28 kg (62 lbs) Front Panel Buttons:(1) ID / (1) PWR w/ LED LEDs:(1) ID / (1) Warning I/O Ports:(1) USB 3.0 port External Drive Bay Qty / Type:(12) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(12) SATA 6Gb/s System Cooling Configuration FAN:(12) 6cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:1,200 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification:205W CPUs are supported by purchasing FRU-TH-0220 option with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(1) PCI-E Gen3 x8 OCP 2.0 slot (conn.A+conn.C) / (2) PCI-E Gen3 x16 slots (Full-height, 10.5" length, Double-width) or (4) PCI-E Gen3 x8 slots (Full-height, 10.5" length, Single-width) split by Mux. / (1) PCI-E Gen3 x8 storage mezz. slot Pre-install TYAN Riser Card:MP016T76-L16-1F / (1) M7102T76-R16-2F riser card for (2) PCI-E Gen3 x16 slots / (1) M7102T76-L16-2F riser card for (2) PCI-E Gen3 x16 slots

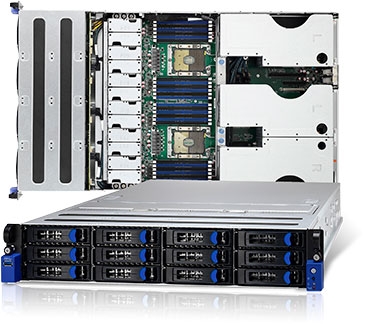

Tyan System B7102T76V12HR-2T-N 2U Intel Xeon Scalable Thunder SX LGA3647 DDR4 Retail
Starting atContact Sales
System Form Factor:2U Rackmount Chassis Model:TN76 Dimension (D x W x H):29.9" x 17.2" x 3.4" (760 x 438 x 87.6mm) Motherboard:S7102GM2NR-2T Gross Weight:37 kg (82 lbs) Net weight:28 kg (62 lbs) Front Panel Buttons:(1) ID / (1) PWR w/ LED LEDs:(1) ID / (1) Warning I/O Ports:(1) USB 3.0 port External Drive Bay Type / Qty:3.5"/2.5 Hot-Swap / (12) HDD backplane support:SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:(12) SATA 6Gb/s System Cooling Configuration FAN:(12) 6cm fans Power Supply Type:RPSU Input Range:AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:1,200 Watts Efficiency:80 plus Platinum Redundancy:1+1 Processor Socket Type / Qty:LGA3647/ (2) Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) wattage:Max up to 165W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(4) PCI-E Gen3 x8 slots (w/ x8/x0 link) / (4) PCI-E Gen3 x16 slots (w/ x8/x16 link) Pre-install TYAN Riser Card:M7102T76-R16-2F / (2) M7102T76-L16-2F Others:(1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.C) / (1) PCI-E Gen3 x8 storage mezz. slot LAN Port Qty(2) 10GbE ports / (1) PHY Controller:Intel X550-AT2 PHY:Realtek RTL8211E Storage SATA:Connector:(2) Mini-SAS HD (8-ports) Controller:Intel C621 Speed:6.0 Gb/s RAID:RAID 0/1/10/5 (Intel RSTe) sSATA:Connector:(2) SATA/SATA-DOM / (1) Mini-SAS HD (4-ports) Controller:Intel C621 Speed:6.0 Gb/s RAID:RAID 0/1/10/5 (Intel RSTe) NVMe:Connector (M.2):(1) 2242 (by PCI-E interface) / (1) 2280 (by PCI-E interface)

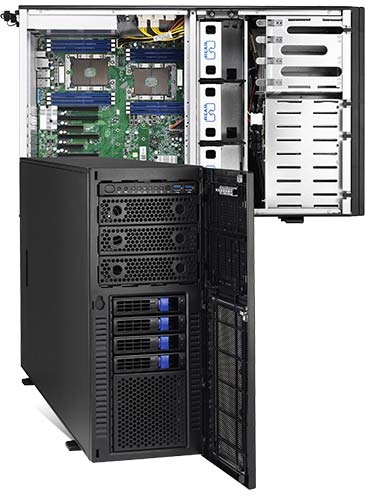

Tyan System B7105F48TV4HR-2T-G 4U Tower Dual Socket Xeon 4x2.5/3.5" Hot-Swap SATA 6Gb/s Brown Box
Starting atContact Sales
System Form Factor:4U Tower Chassis Model:FT48T Dimension (D x W x H):27.5" x 16.8" x 6.9" (700 x 427 x 176mm) Motherboard Name:S7105AGM2NR-2T Gross Weight:40 kg (88.5 lbs) Net weight:34 kg (75 lbs) Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports:(2) USB 3.0 ports External Drive Bay Qty / Type:(3) 5.25" device bays + (4) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SATA 6.0Gb/s Supported HDD Interface:(4) SATA 6Gb/s System Cooling Configuration Redundancy:Yes FAN:(3) hot-swap 12cm fans Heat Sink:(2) Passive CPU Heat sinks Power Supply Type:RPSU Input Range:AC 100-127V/24A / AC 220-240V/10A Frequency:47-63 Hz Output Watts:2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency:80 plus Platinum Redundancy:1+1 Serviceability:Hot-swap Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(6)+(6) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V

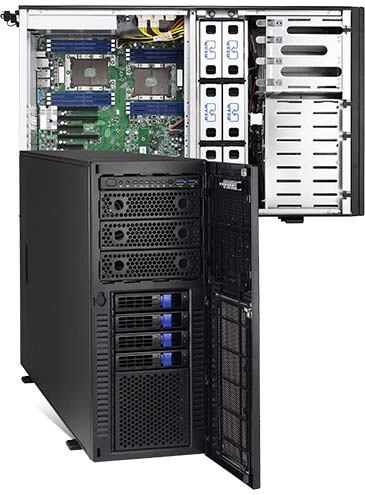

Tyan System B7105F48TV4HR-2T-N Thunder HX Dual-Socket Xeon 1.5T DDR4 3.5"/2.5" Hot-Swap Brown Box
Starting atContact Sales
System Form Factor:4U Tower Chassis Model:FT48T Dimension (D x W x H):27.5" x 16.8" x 6.9" (700 x 427 x 176mm) Motherboard Name:S7105AGM2NR-2T Gross Weight:40 kg (88.5 lbs) Net weight:34 kg (75 lbs) Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports:(2) USB 3.0 ports External Drive Bay Qty / Type:(3) 5.25" device bays + (4) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support:SATA 6.0Gb/s Supported HDD Interface:(4) SATA 6Gb/s System Cooling Configuration Redundancy:Yes FAN:(3) hot-swap 12cm fans Heat Sink:(2) Passive CPU Heat sinks Power Supply Type:RPSU Input Range:AC 100-127V/24A / AC 220-240V/10A Frequency:47-63 Hz Output Watts:2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency:80 plus Platinum Redundancy:1+1 Serviceability:Hot-swap Processor Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:Max up to 205W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH:Intel C621 Memory Supported DIMM Qty:(6)+(6) DIMM slots DIMM Type / Speed:DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity:Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V

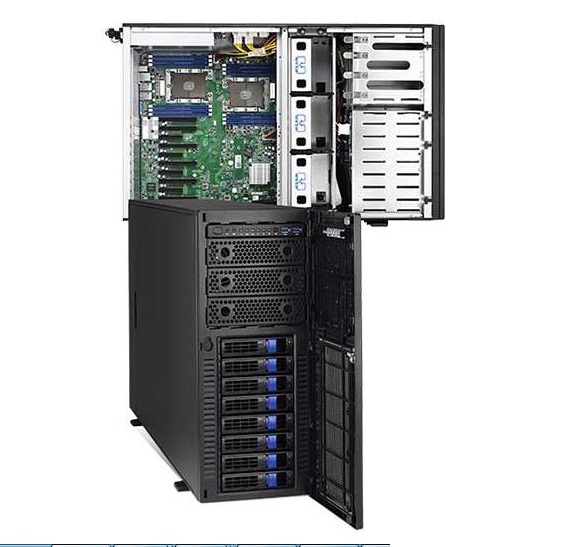

Tyan System B7105F48TV8HR-2T-G Dual-Socket Intel Xeon DDR4 Hot-Swap 3.5" SATA 6GB Retail
Starting atContact Sales
System Form Factor 4U Tower Chassis Model FT48T Motherboard Name S7105AGM2NR-2T Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) HDD / (2) LAN / (1) ID / (1) System Event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (3) 5.25" device bays + (8) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support SATA 6.0Gb/s Supported HDD Interface (8) SATA 6Gb/s System Cooling Configuration Redundancy Yes FAN (3) hot-swap 12cm fans Heat Sink (2) Passive CPU Heat sinks Power Supply Type RPSU Input Range AC 100-127V/24A / AC 220-240V/10A Frequency 47-63 Hz Output Watts 2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input) Efficiency 80 plus Platinum Redundancy 1+1 Serviceability Hot-swap Processor Qty / Socket Type (2) LGA3647 Supported CPU Series Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage Max up to 205W System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH Intel C621 Memory Supported DIMM Qty (6)+(6) DIMM slots DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel 6 Channels per CPU Memory voltage 1.2V

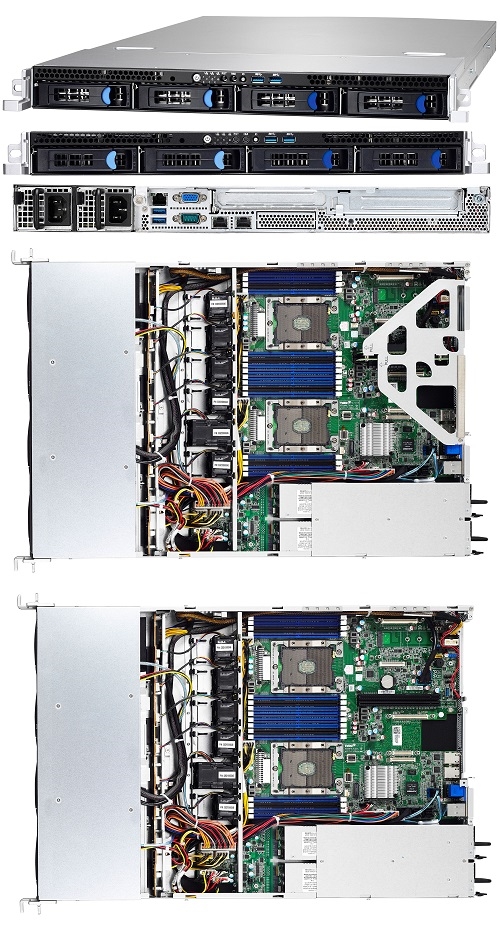

Tyan System B7106G24EV2E2HR 1U RM Dual Socket Xeon 4x3.5 inch HS 2x2.5 inch Brown Box
Starting atContact Sales
Form Factor 1U Rackmount Chassis Model GT24E Motherboard Name S7106GM2NR Front Panel Buttons (1) RST / (1) NMI / (1) PWR w/ LED / (1) UID LEDs (1) ID / (1) UID / (1) BMC event I/O Ports (2) USB 3.0 ports External Drive Bay Qty / Type (2) 3.5"/2.5" Hot-Swap SSD/HDD + (2) NVMe HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s / NVMe Supported HDD Interface (2) SATA 6Gb/s + (2) NVMe Internal Drive Bay Type / Qty (2) 2.5" fixed SSD (with height up to 9.5mm) Supported HDD Interface (2) SATA 6Gb/s System Cooling Configuration FAN (6) 4cm fans
Tyan System B7106G24EV4HR 1U Dual Socket Xeon 4 Hotswap 3.5" SATA 6GB Drive Bays Retail
Starting atContact Sales
ystem Form Factor : 1U Rackmount Chassis Model : GT24E Motherboard Name : S7106GM2NR Front Panel Buttons: (1) RST / (1) NMI / (1) PWR w/ LED / (1) UID LEDs : (1) ID / (1) UID / (1) BMC event I/O Ports : (2) USB 3.0 ports External Drive Bay Type / Qty : 3.5"/2.5" Hot-Swap / (4) HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (4) SATA 6Gb/s Internal Drive Bay Type / Qty : (2) 2.5" fixed SSD (with height up to 9.5mm) Supported HDD Interface : (2) SATA 6Gb/s System Cooling Configuration FAN : (6) 4cm fans Power Supply Type : RPSU Input Range : AC 100-240V/9A Frequency : 50-60 Hz Output Watts : 650 Watts Efficiency : 80-plus Redundancy : 1+1 Serviceability : Hot-swap

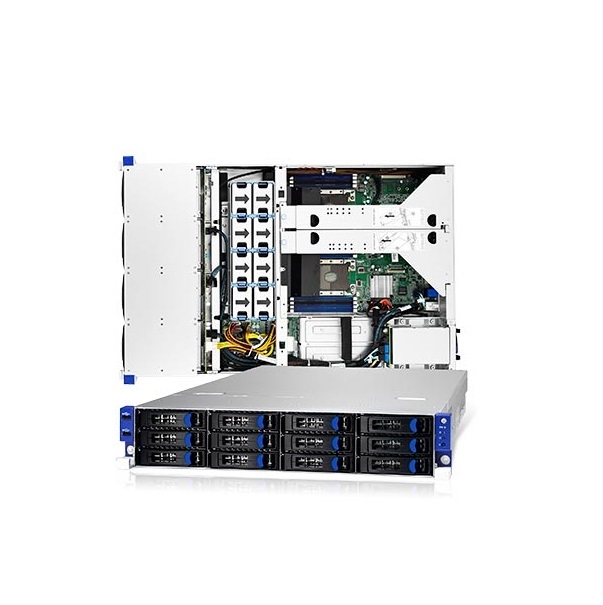

Tyan System B7106T70EV12HR 2U Xeon Scalable LGA3647 C621 12x3.5"/2.5" Hot-Swappable SATA Retail
Starting atContact Sales
System Form Factor : 2U Rackmount Chassis Model : TN70E Motherboard Name : S7106GM2NR Front Panel Buttons: (1) RST / (1) PWR w/ LED / (1) UID LEDs : (1) ID / (1) UID / (1) BMC event I/O Ports : (2) USB 2.0 ports External Drive Bay Qty / Type : (12) 3.5"/2.5" Hot-Swap SSD/HDD HDD Backplane Support : SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface : (12) SATA 6Gb/s Internal Drive Bay Type / Qty : (2) 2.5" Hot Swap SSD Supported HDD Interface : (2) SATA 6Gb/s System Cooling Configuration FAN : (8) 6cm fans Power Supply Type : RPSU Input Range : AC 100-127V/10A / AC 200-240V/5A Frequency : 50-60 Hz Output Watts : 770 Watts Efficiency : 80 plus Platinum Redundancy : 1+1 Processor Qty / Socket Type : (2) LGA3647 Supported CPU Series : Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage : Max up to 205W System Bus : Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification : 205W CPUs are supported by purchasing FRU-SO-9140 option with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset PCH : Intel C621
Tyan System B7108T200X4-220PE6HR 2U RM Dual Socket Xeon 6x2.5" Hot-Swap per blade HDD Retail
Starting atContact Sales
System Form Factor:2U Rackmount Chassis Model:TN200 Dimension (D x W x H):33.43" x 17.47" x 3.42" (849 x 443.8 x 86.8mm) Motherboard Name:(4) S7108GMR (4 blades in one chassis) Gross Weight:38 kg (84 lbs) Net weight:30 kg (66.5 lbs) Board Dimension:6.79" x 20.26" (172.4 x 514.7mm) Blade Dimension (D x W x H):20.66" x 7.06" x 1.6" (524.8 x 179.3 x 40.7mm) Feature:Four blades in one chassis Front Panel Buttons:(4) ID w/ LED / (4) PWR w/ LED I/O Ports:(4) Display ports (2 x USB2.0 + 1 x D-SUB VGA ports w/ via cable, per port ) External Drive Bay (per blade) Type / Qty:2.5" Hot-Swap / (6) / Total (24) devices HDD backplane support:(24) SATA 6Gb/s, NVMe Supported HDD Interface:NVMe System Cooling Configuration (per blade) FAN:(4) 8cm fans Processor (per blade) Qty / Socket Type:(2) LGA3647 Supported CPU Series:Intel Xeon Processor Scalable Families Thermal Design Power (TDP) wattage:Max up to 165W System Bus:Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification:165W CPUs are supported with certain system configurations. Please contact Tyan Technical Support for additional information. Chipset (per blade) PCH:Intel C621 Memory (per blade) Supported DIMM Qty:(8)+(8) DIMM slots DIMM Type / Speed:Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:6 Channels per CPU Memory voltage:1.2V
