Product Overview

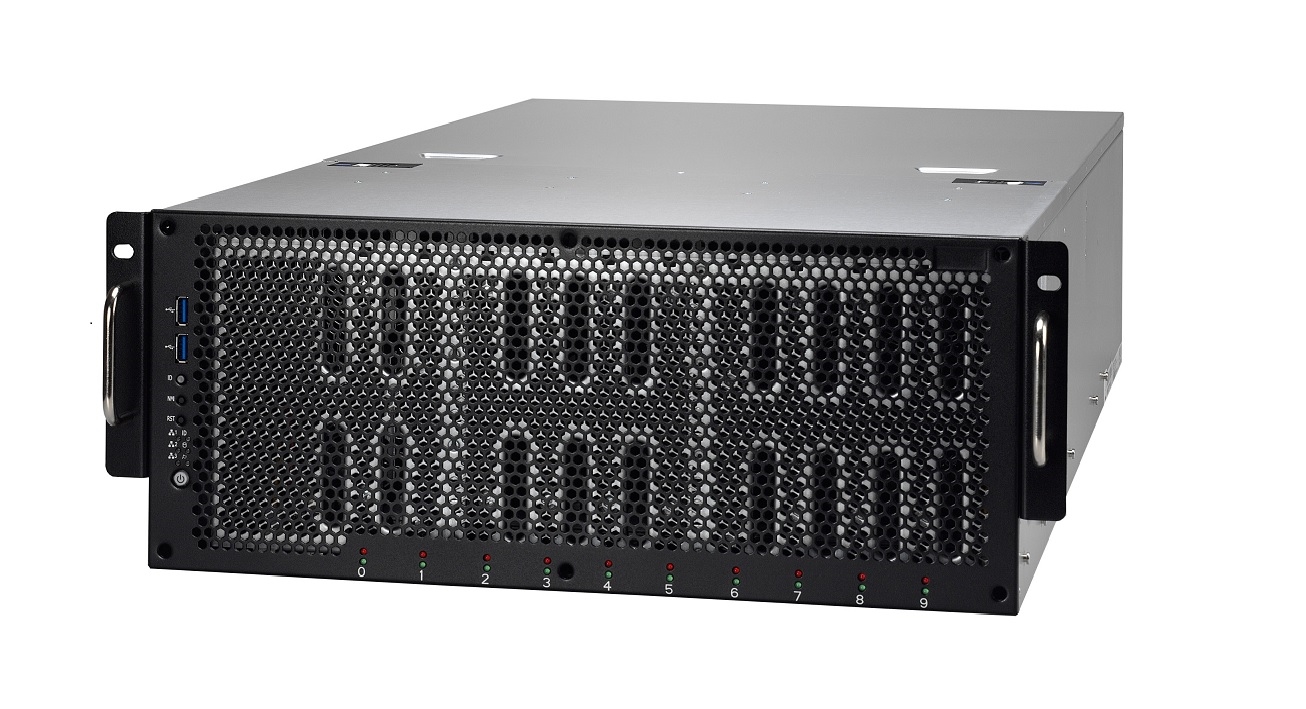

System Form Factor:4U Rackmount Chassis Model:FT77C Motherboard:S7079GM2NR-N Front Panel Buttons:(1) RST / (1) ID / (1) PWR w/ LED LEDs:(1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports:(2) USB ports External Drive Bay Type / Qty:3.5"/2.5" Hot-Swap / (10) HDD backplane support:SAS / SATA 6.0Gb/s System Cooling Configuration FAN:(5+1) hot-swap 12cm fans Power Supply Type:RPSU Input Range:100-127V AC / 200-240V AC Output Watts:2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency:80 plus Platinum Redundancy:2+1 Serviceability:Hot-swap Processor Socket Type / Qty:LGA2011 / (2) Supported CPU Series:Intel Xeon Processor E5-2600 v3 series processors Thermal Design Power (TDP) wattage:Max up to 145W System Bus:Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH:Intel C612 Switch IC:(4)PLX PEX8747 Memory Supported DIMM Qty:(12)+(12) DIMM slots DIMM Type / Speed:RDIMM DDR4 2133/1866/1600 / LRDIMM DDR4 2133/1600 / LRDIMM 3DS DDR4 2133/1600 Capacity:Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel:4 Channels per CPU Memory voltage:1.2V Expansion Slots PCI-E:(8) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 slots(one for mezzanine card) / (3) PCI-E Gen2 x1 slots Pre-install TYAN Riser Card:M2210-L8-1F, PCI-E Gen3 x8 slot (left)
