Product Overview

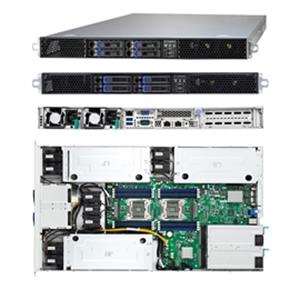

System Form Factor: 1U Rackmount Chassis Model: GA80 Motherboard: S7081GM3NR-2T-N Front Panel Buttons: (1) PWR / (1) RST / (1) ID LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports: (2) USB 2.0 ports External Drive Bay Type / Qty: 2.5" Hot-Swap / (4) HDD backplane support: SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface: (4) SATA 6Gb/s System Cooling Configuration FAN: (9) 4cm fans Power Supply Type: RPSU Input Range: 200-240V AC/9.48A / 100-127V AC/12A Output Watts: 1600 Watts Max. (only for 200-240V AC) Efficiency: PFC / 80 plus Platinum Redundancy: 1+1 Processor Socket Type / Qty: LGA2011 / (2) Supported CPU Series: Intel Xeon Processor E5-2600 v3/v4 product families Thermal Design Power (TDP) wattage: Max up to 135W System Bus: Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH: Intel C612 Memory Supported DIMM Qty: (8)+(8) DIMM slots DIMM Type / Speed: RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4) Capacity: Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 4 Channels per CPU Memory voltage: 1.2V Expansion Slots PCI-E: (1) PCI-E Gen3 x8 slot / (3) PCI-E Gen3 x16 slots Pre-install TYAN Riser Card: M7081-R8-1L, PCI-E Gen3 x8 1U riser card (right) / M7081-R16-1F, PCI-E Gen3 x16 1U riser card (right) / M7081-L16-1F-1, PCI-E Gen3 x16 1U riser card (left) / M7081-L16-1F-2, PCI-E Gen3 x16 1U riser card (left) LAN Port Qty: (2) 10GbE ports, (1) GbE port shared with IPMI Controller: Intel X540-AT2 / Intel I210-AT Storage SATA Connector: (1) Mini-SAS (4-port) SATA Controller: Intel C612 SATA Speed: 6.0 Gb/s SATA RAID: RAID 0/1/10/5 (Intel RSTe)
