Product Overview

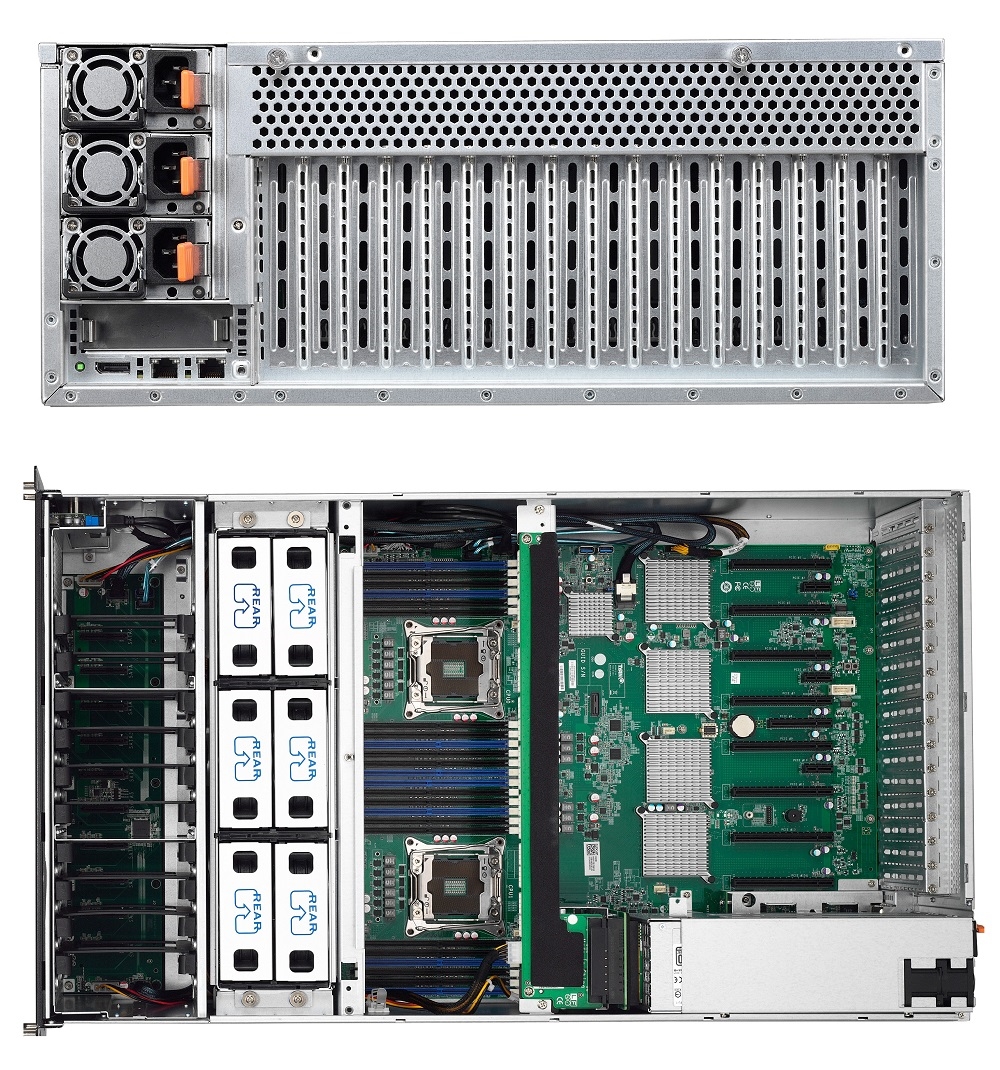

System Form Factor: 4U Rackmount Chassis Model: FT77C Motherboard: S7079GM2NR-2T-N Front Panel Buttons: (1) RST / (1) ID / (1) PWR w/ LED LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning I/O Ports: (2) USB ports External Drive Bay Type / Qty: 3.5"/2.5" Hot-Swap / (10) HDD backplane support: SAS / SATA 6.0Gb/s Supported HDD Interface: (10) SATA 6Gb/s System Cooling Configuration FAN: (5+1) hot-swap 12cm fans Power Supply Type: RPSU Input Range: 100-127V AC / 200-240V AC Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency: 80 plus Platinum Redundancy: 2+1 Processor Socket Type / Qty: LGA2011 / (2) Supported CPU Series: Intel Xeon Processor E5-2600 v3/v4 product families Thermal Design Power (TDP) wattage: Max up to 160W System Bus: Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset PCH: Intel C612 Switch IC: (4) PLX PEX8747 Memory Supported DIMM Qty: (12)+(12) DIMM slots DIMM Type / Speed: RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4) Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR Memory channel: 4 Channels per CPU Memory voltage: 1.2V
