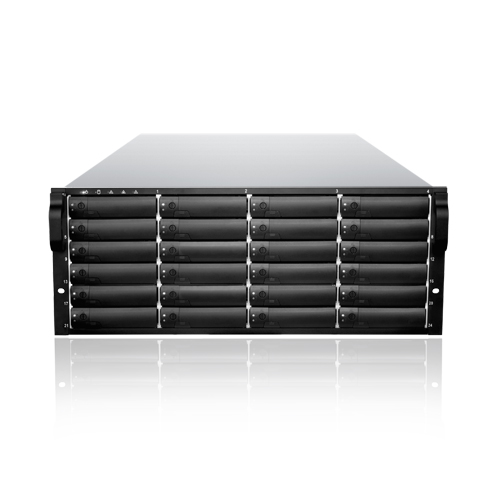

Sans Digital AccuSTOR JBOD Storage(800TB+)
Starting atContact Sales
The Sans Digital AccuSTOR JBOD Storage(126TB+): The AccuSTOR series is a high density 2U/3U/4U rackmount designed for storage hungry applications, and accommodates up to 126TB of storage space. Supporting latest SAS 6G technology, AccuSTOR provide 6G solution for 6G SAS or 6G SATA drives. By utilizing the latest SAS expander technology, AccuSTOR JBOD Storage supports up to 42 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 2 units or 84 HDD drives daisy-chained together, up to 252TB. With a high performance RAID controller card, AccuSTOR is capable of delivering over 1700MB/s in read and 1500MB/s write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable and hard drives tray modules. The AccuSTOR is an ideal storage expansion solution for servers or high performance video editing workstations. Supported in Windows, MAC and Linux, including various file system such as ZFS.

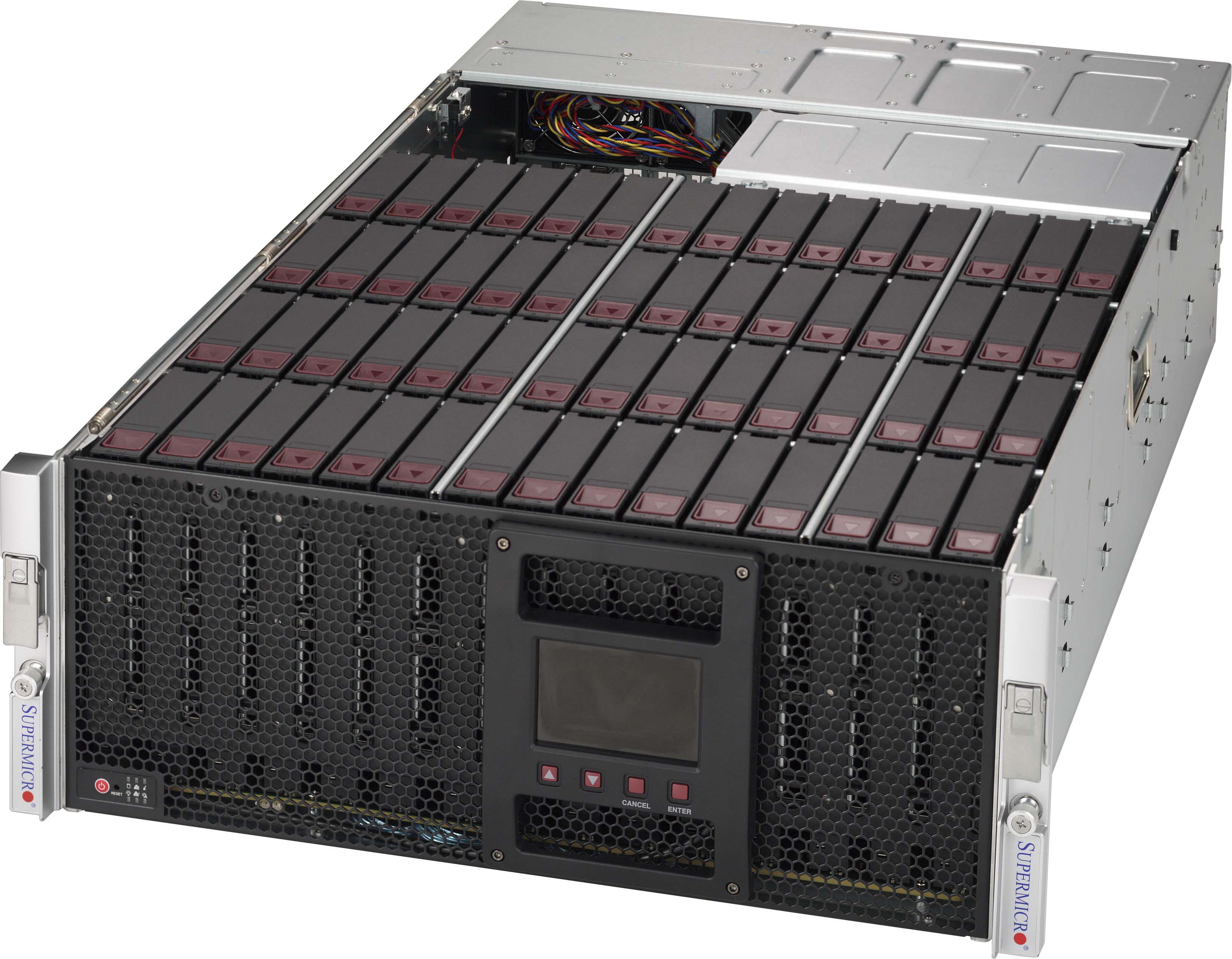

Super 60x HS 3.5" SAS3 JBOD(600+TB)
Starting atContact Sales
The JBOD storage enclosure family cover a whole series of product that supports both LFF (Large form factor, 3.5" drive) and SFF (small form factor, 2.5" drive). Chassis height choice from 2U, 3U to 4U, offer variety from 12 bay (SC826B JBOD) to 90 bay (SC946ED JBOD). Latest SAS3 (12Gb/s) speed SKU satisfy the need of high read and write speed between the server node and JBOD. The backplane type variety, with both single and dual expander that equipped on the product provide two different type of demand: Provide software define storage certified system as major storage compoent for high availaibity application; or meet the need of continuous data growth, reliability and energy efficiency, the JBOD storage enclosure series provide a "start small grow big" solution for expand the data capacity. System is easy to manage via IPMI port with SNMP for remote system power on/off and system monitoring. The whole series feature Titanium / Platinum level high efficiency power supplies. SMC Note: For system validation and quality assurance purposes, system configurations require a minimum of 50% of the available drives be populated with validated Supermicro drives.

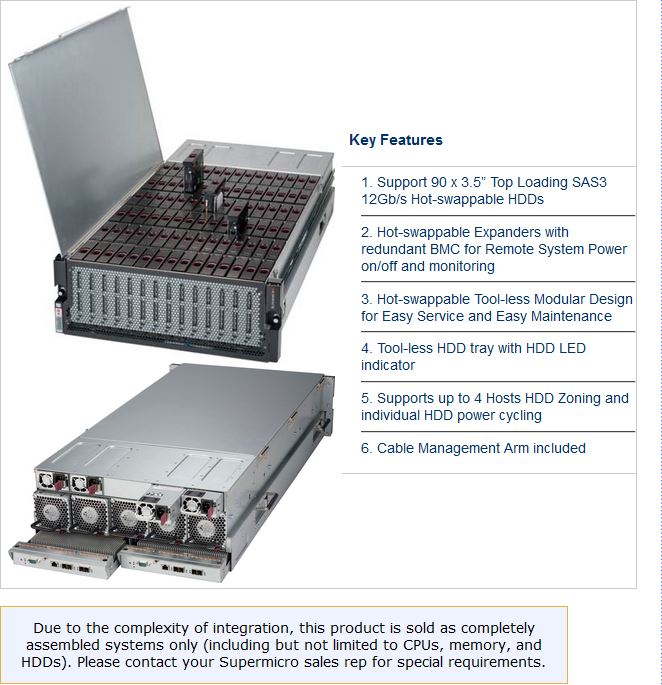

Super 90x HS 3.5" SAS3 JBOD(900+TB)
Starting atContact Sales
The new 4U JBOD extreme capacity storage chassis (SC946ED-R2KJBOD) supports up to 90x 3.5" 8TB HDDs for 900+TB of SAS3, 12Gb/s performance in an easily serviceable tool-less top-load hot-swap architecture. Chassis features double-slide rails with rear cable management arm for easy access to entire storage bay. HDD trays incorporate HDD LED indicator and tool-less lock/release clip. Dual hot-swap expander modules featuring 4x Mini-SAS HD ports maximize throughput and failover redundancy for media streaming, nearline and archive storage applications. System is easily managed via 2x IPMI port with SNMP for Remote System Power on/off and system monitoring. Supports up to 4 hosts HDD Zoning, independent power cycling of individual HDDs. Green Computing features include advanced cooling via 5x 80mm high speed, low vibration, hot-swappable fans and redundant hot-swap 1000W (2+2) Titanium Level high-efficiency (96%) digital power supplies. Optimized for OpenCloud, OpenStack, High Density Archiving Storage, 4K/8K Raw Media Archive, Streaming Storage, Cloud Backup, Data Replication, Compliance Storage, Video streaming / Surveillance. ***** Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Supermicro sales rep for special requirements.
Super SBB(2x Nodes) 2.5" JBOD(96TB+)
Starting atContact Sales
Super Storage Bridge Bay (SBB): Optimized for mission-critical, enterprise-level storage applications, Supermicro's innovative Super SBB features a fully redundant, fault-tolerant "Cluster-in-a-box" system. The Super SBB supports Hot-swap SAS HDDs with the option to expand by using the SBB JBOD. The Super SBB provides hot-swappable canisters for all active components. With heartbeat and data connection between the Serverboards via the midplane, if one serverboard fails, the other serverboard is able to take over control and access the HDD's (both controllers can also work as Active-active mode), keeping the system up and running. Storage software is the key to enable this feature, which is available from several Supermicro's partners. Equipped with high-efficiency redundant power supplies and hot-swappable cooling fans, the Super SBB is a highly-available, high-reliability storage system at a competitive price.
Super SBB(2x Nodes) 3.5" JBOD(288TB+)
Starting atContact Sales
Super Storage Bridge Bay (SBB): Optimized for mission-critical, enterprise-level storage applications, Supermicro's innovative Super SBB features a fully redundant, fault-tolerant "Cluster-in-a-box" system. The Super SBB supports Hot-swap SAS HDDs with the option to expand by using the SBB JBOD. The Super SBB provides hot-swappable canisters for all active components. With heartbeat and data connection between the Serverboards via the midplane, if one serverboard fails, the other serverboard is able to take over control and access the HDD's (both controllers can also work as Active-active mode), keeping the system up and running. Storage software is the key to enable this feature, which is available from several Supermicro's partners. Equipped with high-efficiency redundant power supplies and hot-swappable cooling fans, the Super SBB is a highly-available, high-reliability storage system at a competitive price.
Super SC946(45~90x Bays) 4U JBOD(1260TB+)
Starting atContact Sales
The JBOD storage enclosure family cover a whole series of product that supports both LFF (Large form factor, 3.5" drive) and SFF (small form factor, 2.5" drive). Chassis height choice from 2U, 3U to 4U, offer variety from 12 bay (SC826B JBOD) to 90 bay (SC946ED JBOD). Latest SAS3 (12Gb/s) speed SKU satisfy the need of high read and write speed between the server node and JBOD. The backplane type variety, with both single and dual expander that equipped on the product provide two different type of demand: Provide software define storage certified system as major storage compoent for high availaibity application; or meet the need of continuous data growth, reliability and energy efficiency, the JBOD storage enclosure series provide a "start small grow big" solution for expand the data capacity. System is easy to manage via IPMI port with SNMP for remote system power on/off and system monitoring. The whole series feature Titanium / Platinum level high efficiency power supplies.
Supermicro SC417BE1C-R1K23JBOD, 4U RM,72x(48 front+24 rear) 2.5" HS Bays,1x SAS3(12Gbps) Exp,R1200W
Starting atContact Sales
Key Features Extremely high-density 4U storage server chassis (saves 2U space) Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis SAS3 (12Gbps) single expander backplane 1200W Titanium Level (1+1) redundant power supplies with PMBus Optimized thermal solution with 100% redundant cooling design Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

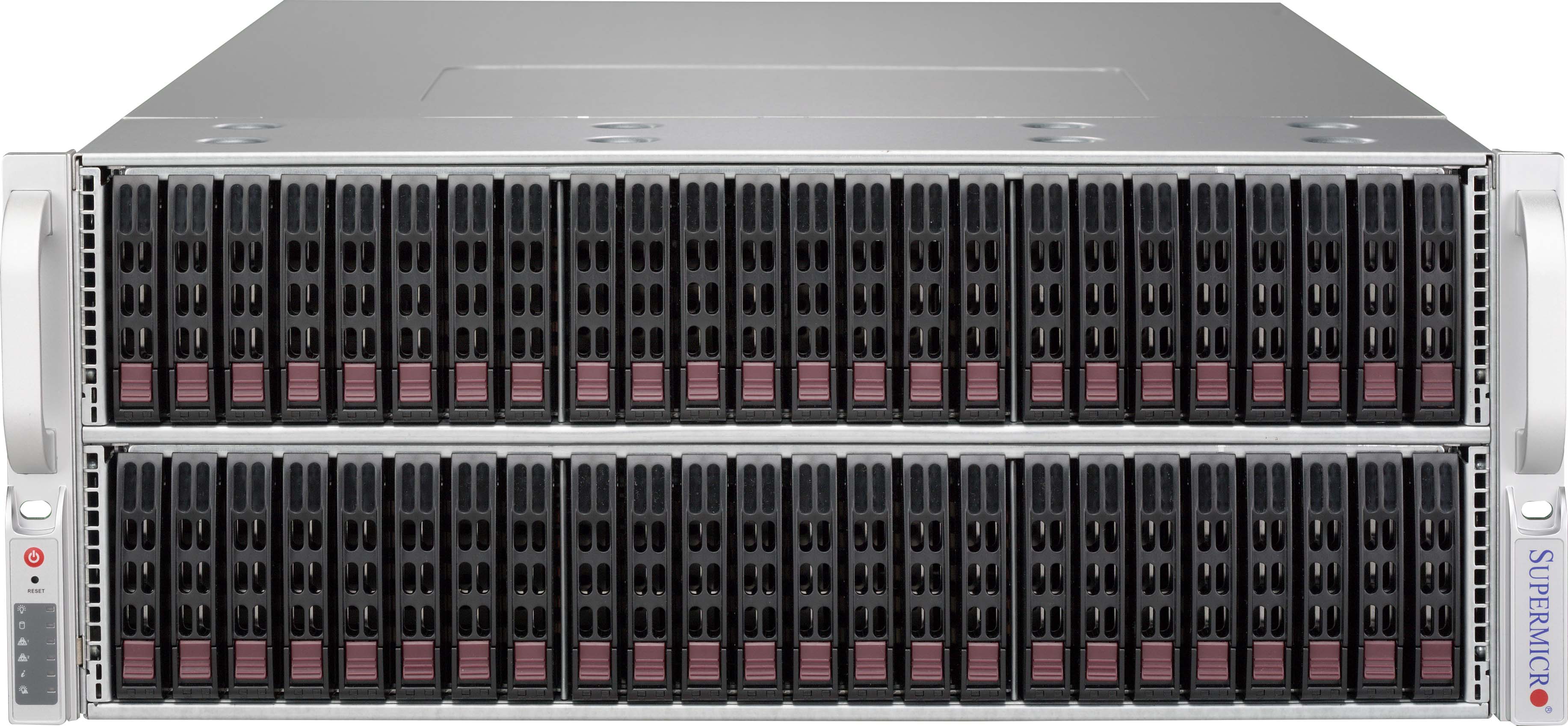

Supermicro SC417BE2C-R1K23JBOD, 4U RM,72x(48 front+24 rear) 2.5" HS Bays,2x SAS3(12Gbps) Exp,R1200W
Starting atContact Sales
Key Features Extremely high-density 4U storage server chassis (saves 2U space) Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis SAS3 (12Gbps) dual expander backplanes 1200W Titanium Level (1+1) redundant power supplies with PMBus Optimized thermal solution with 100% redundant cooling design Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
iStoragePRO 1U/2U/3U JBOD System(4.8TB+)
Starting atContact Sales
iStoragePro R16 Rackmount SAS JBOD is equipped with high performance SAS expansion technology, designed with One MiniSAS 8088 cable connection to a Host controller RAID card, capable of providing high speed video storage. This efficient SAS interface setup provides cost effective solutions without compromising performance. The R16 SAS JBOD can be used with Apple Final Cut Pro® and Adobe® Premiere® Pro CS4 video editing software, and is compatible with video capture cards from AJA, Blackmagic Design, Bluefish444 & Matrox. When the R16 SAS JBOD is connected to a RAID Card, it can easily be configured as a RAID 0, 1, 5, 6,10 & JBOD, capaple of providing performance and fault-tolerance necessary to protect your video data. The R16 Rackmount SAS JBOD is designed for use with a PCI-Express RAID Card.
