Product Overview

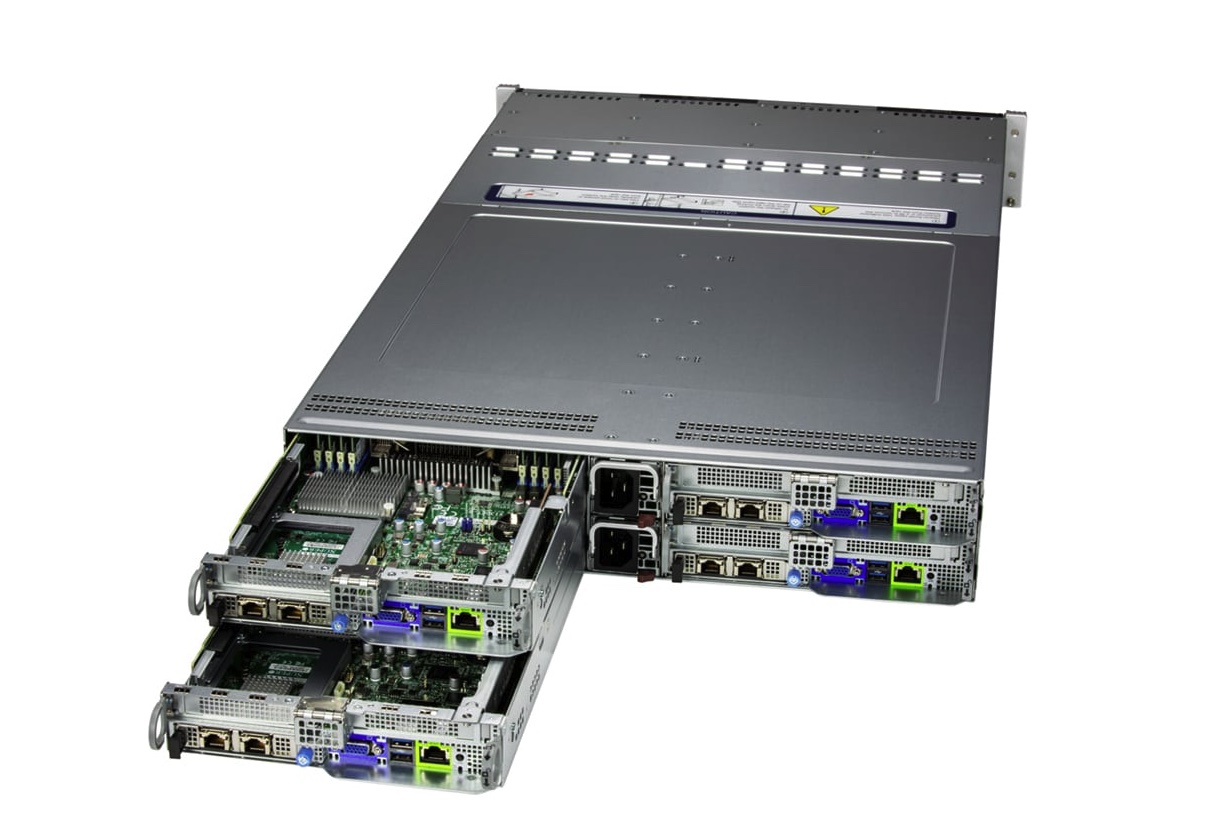

Key Applications: - Hyperconverged Infrastructure - Scale-Out File Storage - Container Storage Key Features: Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: - Dual Socket E2 Intel® Xeon® 6 6700 processors with E-cores up to 165W with air cooling or 330W with liquid cooling. Single CPU configurations supported while maintaining all expansion slot functionality - Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC - Flexible networking with OCP 3.0 AIOM slot - Up to 2 PCIe 5.0 x16 LP slots; Tool-less support Internal PCIe 5.0 for 2x NVMe M.2 support onboard Optional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1 - Up to 3 front hot-swap 3.5" NVMe/SAS drive bays Built-in SAS3 Support via Broadcom 3808; IT Mode
