Product Overview

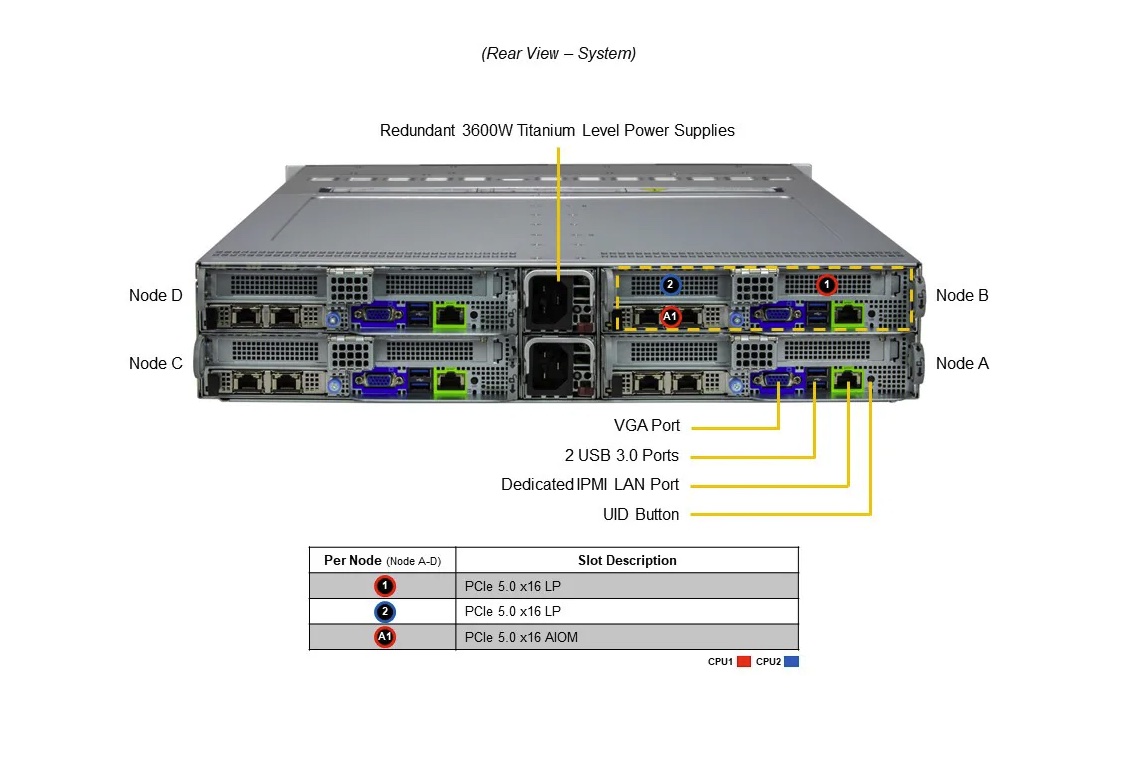

Key Applications - Mission Critical HPC - Virtualized Big Data Analytics - High-Density Storage RAID Array Key Features Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: - Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 205W with air cooling or 330W with liquid cooling - Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC - Flexible networking with OCP 3.0 AIOM slot - 1 PCIe 5.0 x16 LP slots Internal PCIe 5.0 for 2x NVMe M.2 support onboard Optional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1 - Up to 6 front hot-swap 2.5" NVMe/SAS drive bays Built-in SAS3 Support and RAID Options via Broadcom 3908; IR Mode
