Product Overview

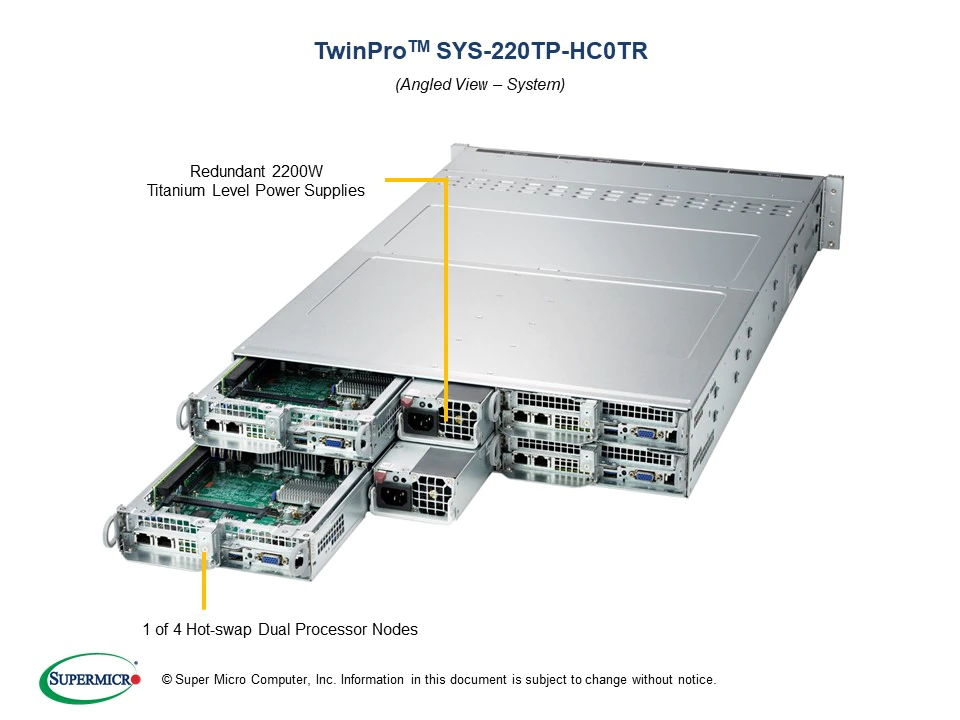

Key Applications - High Performance Computing - Hyper-Converged Infrastructure - Big Data / Big Science - Oil immersion, Liquid Cooling Key Features Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors Intel® C621A chipset 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM 2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm) Intel® X710 Dual port 10GBase-T LAN onboard 6x 2.5" hot-swap SATA/SAS drive bays 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System) Two 2200W redundant power supplies with PMBus ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports Broadcom® 3008 SAS (12Gbps); 6 slots per node; RAID 0, 1, 1E/10 support.
