Product Overview
Supermicro MicroBlade® offers high density and cost efficiencies for a full featured cloud computing experience to enable OpenStack as a Service.
Key Applications - Cloud Gaming
- E-commerce
- Cloud Computing
- Content Creation
- Web/Collocation Services
- Web Cache, CDN, Video Streaming
- Social Networking, Downloads
- Corporate - WINS, DNS, Print, Login
Key Features • 140 UP nodes per 42U Rack
• 20 UP nodes in 6U
1. Single socket (LGA 1700) supports Intel® Pentium®, Intel® Xeon® E-2400 Series Processor
2. Up to 128GB ECC LP UDIMM
DDR5 4400 MT/s in 4 DIMM slots
3. Up to 2x 2.5" SATA/NVMe drives
M.2 Interface: 1 SATA3/NVMe
(PCIe 4.0 from PCH)
and 1 NVMe (PCIe 4.0)
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
4. Dual 10GbE LAN ports via BCM57414
Dedicated LAN supports IPMI 2.0
5. Aspeed AST2600
Specifications

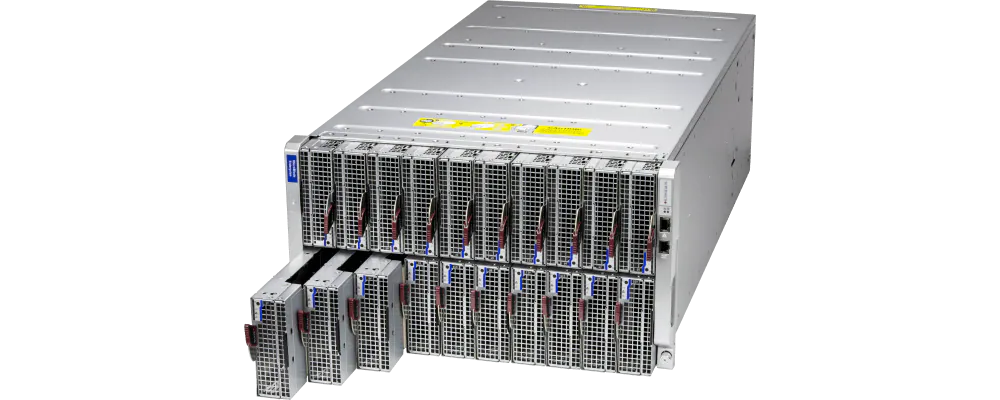

Super MBE-620E MicroBlade® Enclosure
SuperBlade MBE-620E-422,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,4xHS 2200W Redundant P.S
MicroBlade® - Chassis Management Module (CMM)
SuperBlade® MBM-CMM-6,Video ADC,2xLan,IPMI 3.0,KVM over LAN/IP,RMCP+Protocols,GBX & RS-232 Port CMM
MicroBlade® - Networking Switches
Super MBM-GEM-004, Broadcom Embedded, 4x 10Gb/SFP+ & 8x 1Gb(Up), 28x 1Gb(Down) MicroBlade SDN Switch
Super MicroBlade® MBI-311C-1T2N
Super MiroBlade MBi-311C-1T2N,E-2400/LGA 1700,2x10GB,2x 2.5" SATA3/NVMe,2x M.2,IPM,D5(128GB)
Intel® Xeon® E-2400/Pentium® Processor
Intel® E-2414-2.6Ghz/4C/4T, 12M, 16GT/s, 55W LGA1700 CPU
Passive CPU Heat Sink for Micro Blade UP
SNK-P1041V, 1U Proprietary Passive CPU Heat Sink for 6U 10-blade Microblade Series Servers
SATA DOM, *Certified*,
----------Click to Select SATA-DOM ----------
System Memory
16GB DDR5-4800, 1Rx8 LP ECC/Un-Buffer DIMM
1st 2.5" SATA3 HD/SSD or NVMe
Intel® S4620, 480GB, 6Gb/s 2.5" SATA3 SSD(TLC), 3DWPD
2nd 2.5" SATA3 HD/SSD or NVMe
----------Click to Select----------
TPM security module
Supermicro AOM-TPM-9671V, TPM module (Vertical) TPM 1.2
