Product Overview

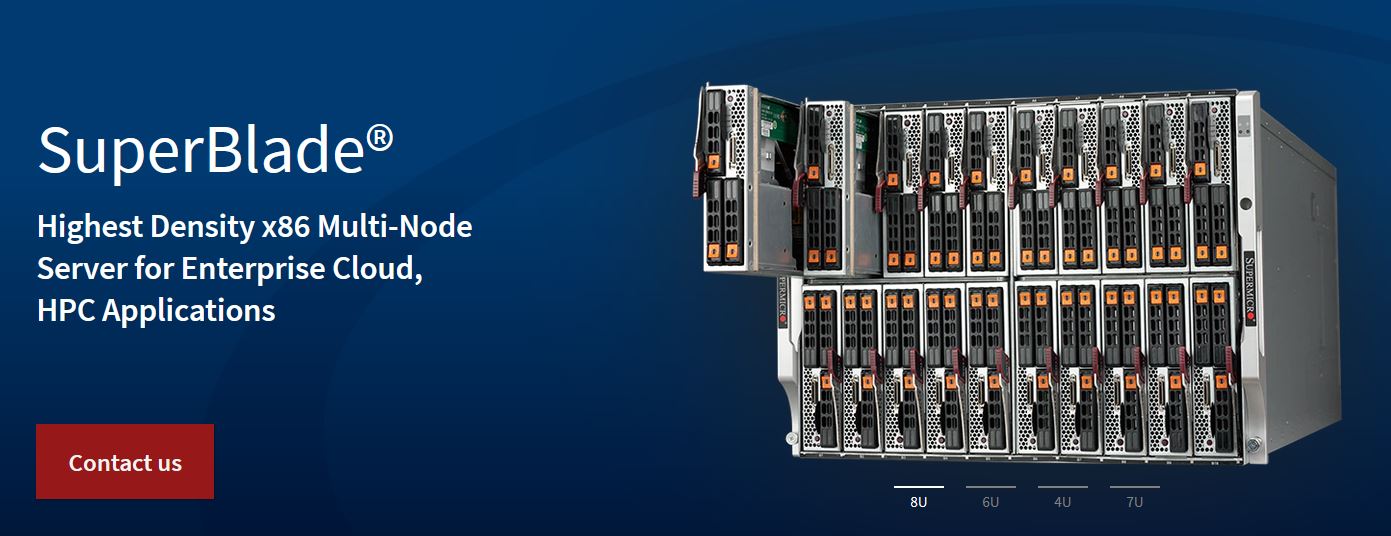

Supermicro SuperBlade®: Highest-Density Multi-Node Server, SuperBlade systems enable data centers with the highest compute density for cloud-based aplication. The latest SuperBlade systems leverage the latest 3rd Gen Intel® Xeon® Scalable processors and high-speed networking technologies to provide unlimited data center configurability. Highlights: *Available in 8U, 6U and 4U enclosures with hot-swap NVME support, *Advanced networking including HDR/EDR, InfiniBand and 25 Gigabit Ethernet, *Available in air and direct liquid cooling. Innovations: *Resource Saving Architecture, *Data Center Friendly Design and Features, *Blade Network Manager. Optimized for: HPC, Hybrid Cloud, EDA, Virtualization, Financial Services.
Specifications
SuperBlade® SBE-820L(20x Nodes) Enclosure
SuperBlade SBE-820L-422,20x HS Dual or 10x Quad Blades,2x25G, XEM or GEM Switch,1x CMM,8U RM,4x2200W
SuperBlade® Chassis Management Module (CMM)
SuperBlade® MBM-CMM-FIO-V,Front I/O,Video ADC,2x Lan,2xUSB,KVM over LAN/IP,RMCP+Protocols,Signed FW
SuperBlade® Networking Modules
Super MBM-GEM-004, Broadcom Embedded, 4x 10Gb/SFP+ & 8x 1Gb(Up), 28x 1Gb(Down) MicroBlade SDN Switch
2-Socket: SBI-420P-1C2N/1T3N based SuperBlade
SuperBlade SBi-420P-1T3N,2x LGA-4189,Video,2x25GB LAN,3x HS 2.5" NVMe/SATA3,1x NVMe M.2,IPMI,D4(4TB)
Intel Xeon® Silver 4300(8~20 Cores) CPU
2x Intel® Silver 4310-2.1Ghz/12C/24T, 18M,120W CPU
Intel Xeon® Gold 5300(8~26 Cores) CPU
----------Customize to Select Gold 5300 CPU----------
Intel Xeon® Gold 6300(16~32 Cores) CPU
----------Customize to Select Gold 6300 CPU----------
Intel Xeon® Platinum 8300(8~40 Cores) CPU
----------Customize to Select Platinum 8300 CPU-------
Heatsink / Retention
SNK-P1044V, 1U Passive CPU Heat Sink for B12 ICX/CPX CPU
Heatsink / Retention
SNK-P0077V, 1U Passive CPU VC HS for X12 ICX/CPX
System Memory: Up to 4TB DDR4-3200Mhz RDIMM
64GB(4x 16GB) DDR4-3200Mhz, ECC/Reg RDIMM
M.2 NVMe SSD
----------Customize to Select M.2 NVMe SSD----------
1st 2.5" SATA HD/SSD or NVMe
Seagate ES 1TB/7200 RPM, 128M, 6Gb/s, 2.5" SATA3 HD
2nd 2.5" SATA HD/SSD or NVMe
----------Customize to Select----------
3rd 2.5" SATA HD/SSD or NVMe
----------Customize to Select----------
1st 2.5" SAS3(12Gb/s) HD/SSD
----------Customize to Select SAS3 HD----------
2nd 2.5" SAS3(12Gb/s) HD/SSD
----------Customize to Select SAS3 HD----------
3rd 2.5" SAS3(12Gb/s) HD/SSD
----------Customize to Select SAS3 HD----------
Accessories
Supermicro SFT-OOB-LIC, OOB Management Package (per node license)
Optical Drive
----------Customize to Select----------
MicroSoft Operation System
User Specified(CentOS, Fedora, Debian, Ubuntu Linux, etc)
Red Hat Linux Operation System
----------Customize to Select Red Hat OS----------
VMware Operation System
----------Customize to Select VMware OS----------
