Product Overview

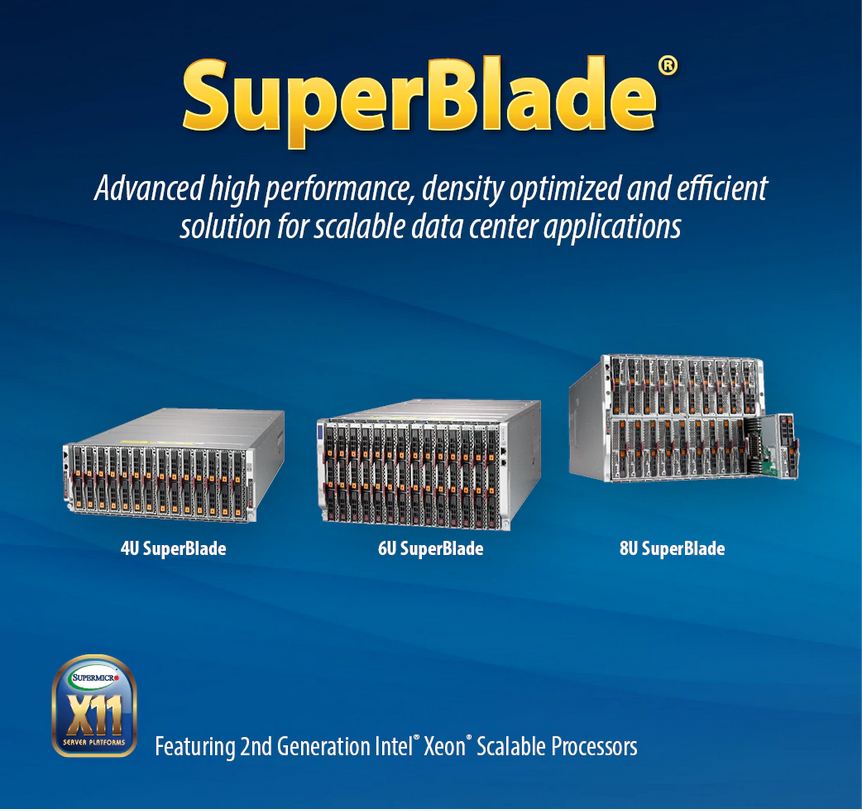

The innovative and feature-rich SuperBlade® enhances system computing density by housing multiple blade servers in a single enclosure. Applying Supermicro's application-optimized engineering philosophy and leveraging years of rackmount server design experience, SuperBlade® modules deliver true server functionality and boast simplified access and maintenance with front-loading nodes. Each node includes up to four 28-Core Intel® Xeon® Scalable Processors with 3TB DDR4 2666MHz in 48 DIMM slots, 205W per socket, NVMe/SAS3 HDD support, optional 100G EDR InfiniBand/Intel Omni-Path or 10G mezzanine HCA, optional PCI-E 3.0 expansion card, support for up to 8 NVMe or 4 SATA3/SAS3 hard drives, and 100-240VAC redundant Titanium Level high-efficiency (96%), N+1 power supplies. Each blade server fits into existing Supermicro blade enclosures, thus protecting initial investments and offering smooth product upgrades and migrations.
Specifications
SuperBlade® SBE-820C/J/L(10x Blades) Enclosure
SuperBlade SBE-820L-422,20x HS Dual or 10x Quad Blades,2x25G, XEM or GEM Switch,1x CMM,8U RM,4x2200W
SuperBlade® Chassis Management Module (CMM)
SuperBlade® MBM-CMM-FIO(CMM), Front I/O, Video ADC, 2x Lan, 2x USB, KVM over LAN/IP,RMCP+Protocols,
SuperBlade® Networking Modules
Super MBM-XEM-002, 2x 40Gb QSFP Uplinks, 56x 10Gb or 1Gb Downlinks Microlade Switch
GPU Blade SBI-4119MG-X/Single socket H4 (LGA 1151)
SuperBlade SBi-4119MG-X, E-2100/LGA1151,3x PCIe, Video, 2x 10GB/X710,1x NVMe/SATA M.2,IPMI,D4(128GB)
Intel® Xeon® processor E-2100/2200 series
Intel® E-2104G-3.2Ghz/4C/4T, 8M, 8GT/s, 65W LGA1151 CPU
CPU Heatsink & Cooling Fan for Socket H4(LGA1151)
SNK-P1041V, 1U Proprietary Passive CPU Heat Sink for 6U 10-blade Microblade Series Servers
System Memory: Up to 128B DDR4-2666Mhz RDIMM
16GB(2x 8GB) D4-2666Mhz, ECC/Un-Buffer Sdram
GPU for SBI-4119MG-X Blade
----------Click to Select----------
1 NVMe/SATA3 M.2 SSD
Toshiba XG5, 256GB NVMe* PCIe3.0, M.2 2280 SSD(TLC), 1DWPD
MicroSoft Operation System
----------Click to Select----------
Red Hat Linux Operation System
----------Click to Select----------
VMware Operation System
----------Click to Select----------
