Product Overview
Optimized for mission-critical, enterprise-level storage applications, Supermicro's innovative Super SBB features a fully redundant, fault-tolerant "Cluster-in-a-box" system. The Super SBB supports Hot-swap SAS/NVMe HDDs/SSDs with the option to expand by using the SBB JBOD. The Super SBB provides hot-swappable canisters for all active components. With heartbeat and data connection between the Serverboards via the midplane, if one serverboard fails, the other serverboard is able to take over control and access the HDD's (both controllers can also work as Active-active mode), keeping the system up and running. Storage software is the key to enable this feature, which is available from several Supermicro's partners. Equipped with high-efficiency redundant power supplies and hot-swappable cooling fans, the Super SBB is a highly-available, high-reliability storage system at a competitive price.
SMC Note: Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 4 CPUs, 4 DIMMs and 12 dual port NVMe). Please contact our sales rep for special requirements.
Specifications

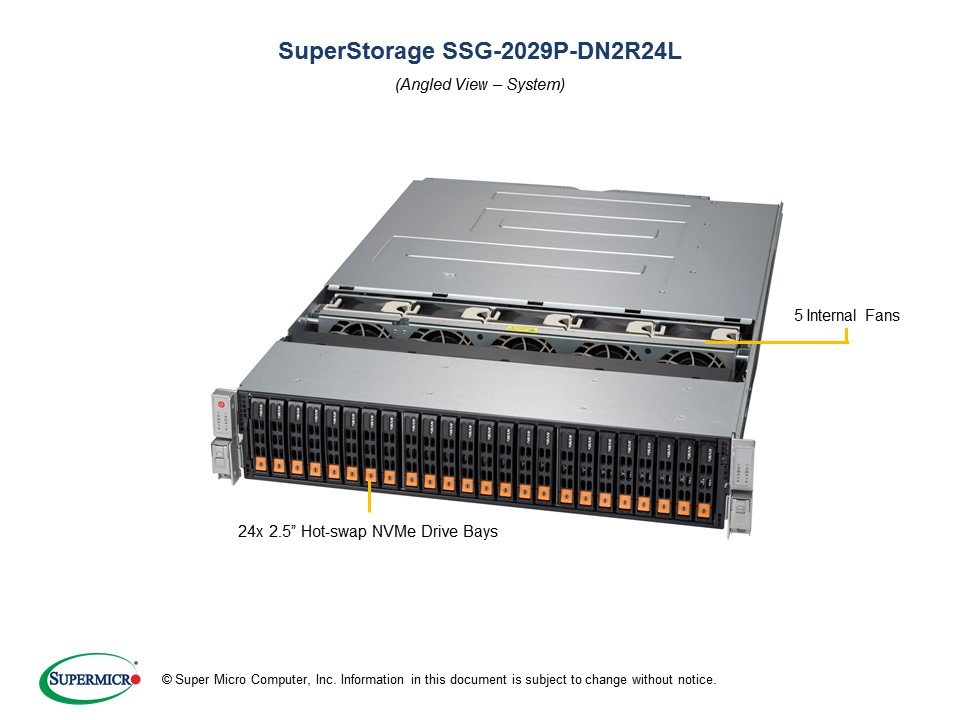

SuperStorage 2029P-DN2R24L (Complete System Only)
Super 2029P-DN2R24L,2x Nodes,2x LGA3647,Video,2x10GB/X557,24xHS U.2 NVMe Bays,IPMI,D4(2TB),2U/R2000W
Two Set Of Xeon® Bronze 3100/3200(6/8-Core) CPU
4x Bronze 3104-1.7Ghz/6C/6T, 8.25M, 9.6GT/s, 85W
Two Set Of Xeon® Silver 4100(4/8/10/12-Core) CPU
----------Customize it to Select Silver 4100 CPU---------
Two Set Of Xeon® Silver 4200(8~16-Core) CPU
----------Customize it to Select Gold 4200 CPU----------
Two Set Of Xeon® Gold 5100(4/10/12/14-Core) CPU
----------Customize it to Select Gold 5100 CPU----------
Two Set Of Xeon® Gold 5200(4~18-Core) CPU
----------Customize it to Select Gold 5200 CPU----------
Two Set Of Xeon® Gold 6100(6~22-Core) CPU
----------Customize it to Select Gold 6100 CPU----------
Two Set Of Xeon® Gold 6200(16~24-Core) CPU
----------Customize it to Select Gold 6200 CPU----------
Two Set Of Xeon® Platinum 8100(4~28-Core) CPU
----------Customize it to Select Platinum 8100 CPU-------
Two Set Of Xeon® Platinum 8200(4~28-Core) CPU
----------Customize it to Select Platform 8200 CPU-------
Two Set Of Memory: Up to 4TB DDR4-2933Mhz RDIMM
64GB(4x 16GB) D4-2933Mhz, ECC/Reg 288-Pin Sdram
1st 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
2nd 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
3rd 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
4th 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
5th 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
6th 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
7th 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
8th 2.5" or AIC NVMe SSD
Toshiba CM5, 800GB NVMe* PCIe3, 2.5"/15mm SSD(eTLC), SIE, 3DWPD
Data Valume 3(9~12) 2.5" or AIC NVMe SSD
4x Toshiba CM5, 800GB NVMe* PCIe3,SSD(eTLC), 3DWPD
Data Valume 4(13~16) 2.5" or AIC NVMe SSD
----------Customize it to Select 13~16 SSD----------
Data Valume 5(17~20) 2.5" or AIC NVMe SSD
----------Customize it to Select 17~20 SSD----------
Data Valume 6(21~24) 2.5" or AIC NVMe SSD
----------Customize it to Select 21~24 SSD----------
Add-On *SIOM* Networking Adapters
----------Customize it to Select----------
Accessories
Supermicro SFT-OOB-LIC, OOB Management Package (per node license)
MicroSoft Operation System
----------Customize it to Select----------
Red Hat Linux Operation System
----------Customize it to Select----------
VMware Operation System
----------Customize it to Select----------
