Product Overview

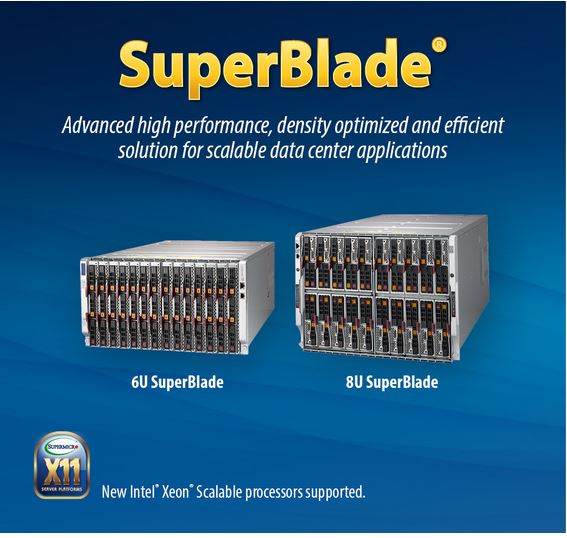

The innovative and feature-rich SuperBlade® enhances system computing density by housing multiple blade servers in a single enclosure. Applying Supermicro's application-optimized engineering philosophy and leveraging years of rackmount server design experience, SuperBlade® modules deliver true server functionality and boast simplified access and maintenance with front-loading nodes. Each node includes up to four 28-Core Intel® Xeon® Scalable Processors with 3TB DDR4 2666MHz in 48 DIMM slots, 205W per socket, NVMe/SAS3 HDD support, optional 100G EDR InfiniBand/Intel Omni-Path or 10G mezzanine HCA, optional PCI-E 3.0 expansion card, support for up to 8 NVMe or 4 SATA3/SAS3 hard drives, and 100-240VAC redundant Titanium Level high-efficiency (96%), N+1 power supplies. Each blade server fits into existing Supermicro blade enclosures, thus protecting initial investments and offering smooth product upgrades and migrations.
Specifications
SuperBlade® SBE-614E(14x Nodes) Enclosure
SuperBlade SBE-614E-422, 14x HS Server Blades, 1x CMM, 2x 10G/1G Switch, 6U RM,4x 2200W Titanium P.S
SuperBlade® Chassis Management Module (CMM)
SuperBlade® MBM-CMM-FIO(CMM), Front I/O, Video ADC, 2x Lan, 2x USB, KVM over LAN/IP,RMCP+Protocols,
SuperBlade® Networking Modules
Super MBM-GEM-004, Broadcom Embedded, 4x 10Gb/SFP+ & 8x 1Gb(Up), 28x 1Gb(Down) MicroBlade SDN Switch
1 or 2-Socket Blade: SBI-6419P-C3N / SBI-6429P-C3N
SuperBlade SBi-6419P-T3N,1xLGA3647,Video,2x10GB LAN,3xHS 2.5" NVMe or 3x SATA3 Bays+R,IPMI,D4(384GB)
Intel® Xeon® Bronze 3100(6/8-Core) Platform
1x Bronze 3104-1.7Ghz/6C/6T, 8.25M, 9.6GT/s, 85W
Intel® Xeon® Silver 4100(4/8/10/12-Core) Platform
----------Customize to Select Silver 4100 CPU---------
Intel® Xeon® Silver 4200(8~16-Core) Platform
----------Customize to Select Gold 4200 CPU----------
Intel® Xeon® Gold 5100(4/10/12/14-Core) Platform
----------Customize to Select Gold 5100 CPU----------
Intel® Xeon® Gold 5200(4~18-Core) Platform
----------Customize to Select Gold 5200 CPU----------
Intel® Xeon® Gold 6100(6~22-Core) Platform
----------Customize to Select Gold 6100 CPU----------
Intel® Xeon® Gold 6200(16~24-Core) Platform
----------Customize to Select Gold 6200 CPU----------
Intel® Xeon® Platinum 8100(4~28-Core) Platform
----------Customize to Select Platinum 8100 CPU-------
Intel® Xeon® Platinum 8200(4~28-Core) Platform
----------Customize to Select Platform 8200 CPU-------
CPU Heatsink & Cooling Fan for Socket P(LGA3647)
SNK-P1037PS, Low Profile Proprietary Passive CPU Heat Sink for B11 6U 14 Blade Series SuperServers
CPU Heatsink & Cooling Fan for Socket P(LGA3647)
SNK-P1037PSM, Low Profile Proprietary Passive CPU Heat Sink w/ a Middle Air Channel for B11 6U 14 Bl
System Memory: Up to 768GB VLP DDR4-2666Mhz RDIMM
16GB(2x 8GB) D4-2400Mhz,*VLP* ECC/Reg Sdram
1st 2.5" NVMe/SATA HD or SSD
Seagate ES 1TB/7200 RPM, 64M, 6Gb/s, 2.5" SATA3 HD
2nd 2.5" NVMe/SATA HD or SSD(Raid 0, 1 Ready)
----------Customize to Select----------
3rd 2.5" SATA HD or SSD(Raid 5 Ready)
----------Customize to Select----------
1st SAS3(12Gb/s) HD or SSD
----------Customize to Select SAS3 HD----------
Optical Drive
----------Customize to Select----------
MicroSoft Operation System
----------Customize to Select----------
Red Hat Linux Operation System
----------Customize to Select----------
VMware Operation System
----------Customize to Select----------
