Product Overview

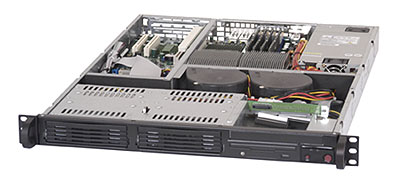

The OEM-only SuperBarebone 613A-Xi is a dual Xeon-processor based server that offers an exceptional price/performance value. Support for Xeon processors of up to 3.06 GHz at a 533 MHz front side bus and up to 8 GB of DDR266/200 SDRAM provides excellent computing power in a 1U form factor while two IDE ATA 100 hard drives allow for a potential 320 GB internal storage capacity. Two gigabit ethernet ports and onboard graphics add increased functionality and ease in setting up this attractive 1U rackmount. A density-optimized solution that¿s easy on any budget, the 613A-Xi is ideal for file/print server, firewall applications, mail server, web server for small business and other server applications.

Specifications

Model
SB613AXi
Motherboard
SUPER X5DPA-GG
CPU
Dual Intel® Xeon¿ Processors up to 3.06GHz
Memory
Up to 8GB of DDR-200/266 memory
Front Side BUS
533/400MHz
I/O Expansion
1 full length 64-bit PCI-X card support
Onboard I/O Devices
Dual Gigabit LAN with Intel 82541 Ethernet controllers, ATI Rage XL SVGA 8MB PCI video controller, Dual IDE ports with Ultra DMA 100 support
Front Panel
LED - power status, hard drive activity, two LAN link/activity, OH, Power switch, reset
Chassis
SC811i-350 (CSE-811i-350B)
Power Supply
350W power supply (PWS-0042-24)
Drive Bays
2 x 3.5" IDE drive bays
External Drive Bays
1 3.5" Floppy drive bay, 1 Slim CD-ROM bay
