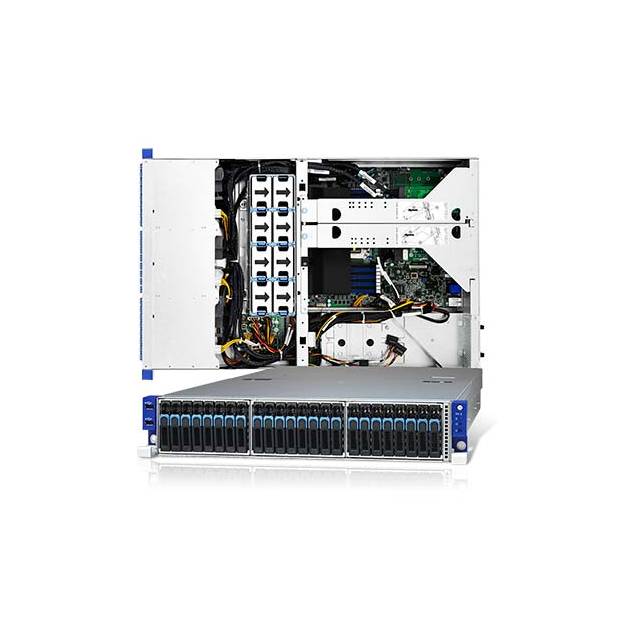

Product Overview

Mfr Part Number: B8026T70AE24HR Motherboard: S8026GM2NRE Processor: AMD Socket SP3 Support AMD EPYC 7000 Series Processor Support up to 180W CPU Chipset: N/A Memory: 16x DDR4-2667 DIMM Slots, 8 Channels per CPU, ECC, Max Capacity up to 1024GB Registered Memory/Load Reduced Memory Slots: 1x PCI-Express 3.0 x16 OCP 2.0 slot (conn.A+conn.B), 1x PCI-Express 3.0 x8 Slot (Half-height, Half-length w/ tall bracket) Storage: SATA: 2x SATA3 Ports M.2: 2x NVMe M.2 Ports, Supports 22110/2280/2260/2242 (by PCI-E & SATA interface) Video: Aspeed AST2500 Graphics LAN: 2x Broadcom BCM5720 Gigabit Ethernet Controllers, Realtek RTL8211E PHY dedicated for IPMI Drive Bays: 24x Front Hot-Swap 2.5" NVMe Drive Bays, 2x internal 2.5" SATA Drive Bays Ports: 3x USB 3.0 Ports (2 at rear, 1 Type-A), 2x USB 2.0 Ports (front), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: 2U Rackmount Power Supply: 770W 80 Plus Platinum 1+1 RPSU Power Supply, AC 100-127V/10A, AC 200-240V/5A, 50~60Hz System Cooling: 8x 6cm Fans Front Panel: Buttons: RST, ID, PWR w/ LED LEDs: ID, Warning Dimensions (WxDxH): 17.72 x 27.56 x 3.43 inch / 450.0 x 700.0 x 87.0 mm Weight: 42.0 Ibs / 19.0 kg RoHS Compliant
