Product Overview

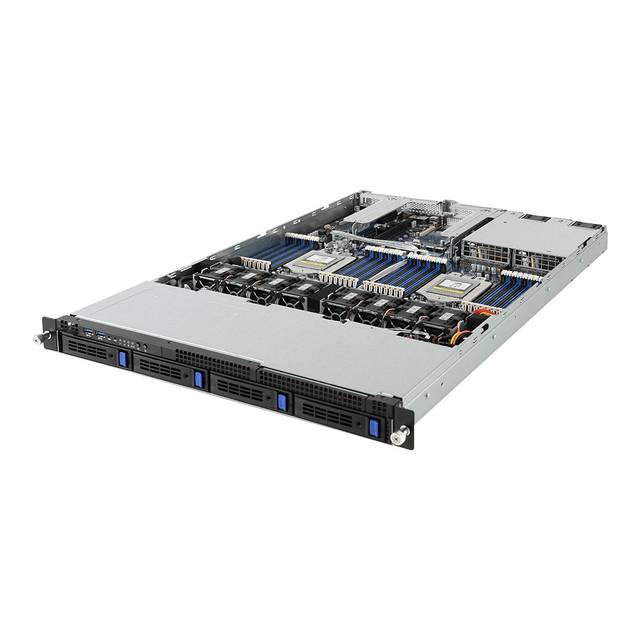

Mfr Part Number: R181-Z90 Motherboard: MZ91-FS0 Processor: Dual Socket SP3 Supports AMD EPYC 7000 series family processor TDP up to 180W Chipset: System on Chip Memory: 32x DDR4-2666(1DPC)/ 2400/ 2133 MHz DIMM Slots, 8-channel Support RDIMM modules up to 64GB Support LRDIMM modules up to 128GB Slots: Riser Card CRS1021: 2x PCI-Express 3.0 x8 Slots (Low profile half-length) Riser Card CRS1015: 1x PCI-Express 3.0 x16 Slot (Low profile half-length) 2x OCP mezzanine slots with PCI-Express 3.0 x16 1x M.2 slot: M-key - PCI-Express 3.0 x4 - Supports NGFF-2280/2260/2242 cards Video: Integrated Aspeed AST2500 Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers; 1x 10/100/1000 Management LAN Drive Bays: 4x 3.5" hot-swappable HDD bays (2.5" HDD/SSD supported) Ports: 4x USB 3.0 Ports (2 rear, 2 front), 1x VGA Port, 2x RJ45 LAN Ports, 1x MLAN Port Form Factor: 1U Rackmount Power Supply: 2x 1200W 80 PLUS Platinum Redundant Power Supply System Cooling: 8x (40x40x56mm) Fans (23000rpm) Dimensions (WxDxH): 438.0 x 710.0 x 43.5 mm Weight: 13.0 kg
