Product Overview

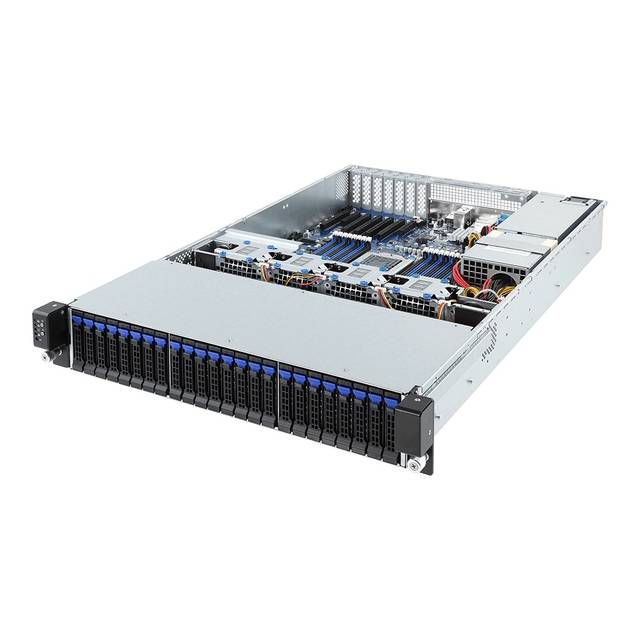

Mfr Part Number: R271-Z31 Motherboard: MZ31-AR0 Processor: Socket SP3 Supports AMD EPYC 7000 series family processor TDP up to 180W Chipset: System on Chip Memory: 16x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, 8-channel Support RDIMM modules up to 64GB Support LRDIMM modules up to 128GB Slots: 5x PCI-Express 3.0 x16 Slots (one runs at x8), 2x PCI-Express 3.0 x8 Slots 1x M.2 slot: M-key - PCI-Express 3.0 x4 - Supports NGFF-2280/2260/2242 cards Video: Integrated Aspeed AST2500 Graphics LAN: 2x Broadcom BCM 57810S SFP+ 10Gb/s LAN Ports; 1x 10/100/1000 Management LAN Drive Bays: 24x 2.5" SATA/SAS hot-swappable HDD/SSD bays, 16x 2.5" SATA/SAS drives available by default setting Ports: 2x USB 3.0 Ports (rear), 2x USB 2.0 Ports (rear), 1x VGA Port, 2x SFP+ LAN Ports, 1x MLAN Port Form Factor: 2U Rackmount Power Supply: 2x 800W 80 PLUS Platinum Redundant Power Supply System Cooling: 4x 80x80x38mm (14900rpm) Dimensions (WxDxH): 430.0 x 710.0 x 87.0 mm Weight: 21.0 kg (barebone)
