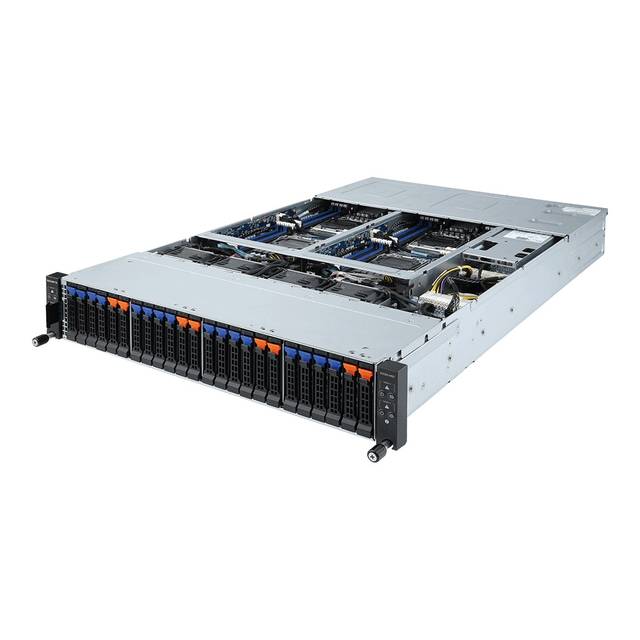

Product Overview

Mfr Part Number: H23N-H60 Motherboard: MH60-RE1 Processor Per Node: Dual LGA2011-3 Supports Intel Xeon E5-2600 V3/V4 Processors Chipset: Intel C612 Memory Per Node: 16x DDR4-2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Quad Channel Support RDIMM Modules Up to 32GB Support LRDIMM Modules Up to 64GB Support 3DS LRDIMM modules up to 128GB Slots Per Node: 1x Half-length low-profile slot with PCI-Express 3.0 x16 Connector; 1x Mezzanine PCI-Express 3.0 x8 Connector Video: Integrated Aspeed AST2400 Graphics LAN Per Node: 2x Mellanox ConnectX-3 10Gb/s SFP+ LAN Ports, Intel I210-AT Gigabit Ethernet Controller, 1x 10/100/1000 Management LAN Drive Bays Per Node: 4x 2.5" SAS/SATA hot-swappable HDD/SSD bays ( from C612), 2x 2.5" NVMe HDD/SSD bays Ports Per Node: 2x USB 3.0 Ports (rear), 1x VGA Port, 2x SFP+ Ports, 1x RJ45 LAN Port, 1x RJ45 MLAN Port Form Factor: 2U Rackmount Power Supply: 2x 2000W 80 PLUS Titanium Certified Power Supply System Cooling: 4x 80x80x38mm (16300rpm) Dimensions (WxDxH): 448.0 x 755.0 x 87.0 mm Weight: 35.0 kg (full packaging)
