Product Overview

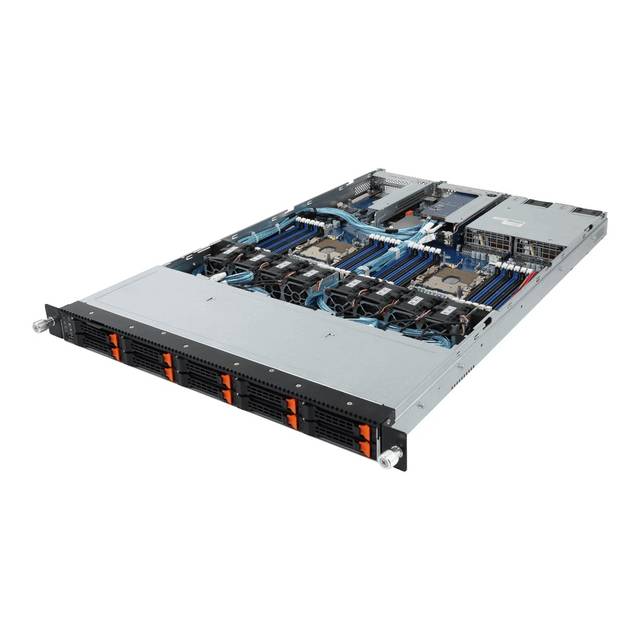

Mfr Part Number: R181-NA0 Motherboard: MR91-FS0 Processor: Dual LGA3647 Supports Intel Xeon Scalable Family Processor Supports Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor and Intel Xeon Bronze Processor TDP up to 205W Chipset: Intel C621 Express Memory: 24x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, 6-channel Support RDIMM modules up to 64GB Support LRDIMM modules up to 128GB Slots: Riser Card CRS1014: 1x PCI-Express 3.0 x16 Slot, Full-height half-length Riser Card CRS1015: 1x PCI-Express 3.0 x16 Slot, Full-height half-length 2x OCP mezzanine slots: PCI-Express 3.0 x16 SATA: 1x 7-pin SATA3 with SATA DOM supported SAS: N/A Video: Integrated Aspeed AST2500 Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers; 1x 10/100/1000 Management LAN Drive Bays: 10x 2.5" U.2 hot-swappable HDD/SSD bays Ports: 3x USB 3.0 Ports (2 rear, 1 front), 1x VGA Port, 2x RJ45 LAN Ports, 1x MLAN Port Form Factor: 1U Rackmount Power Supply: 2x 1200W 80 PLUS Platinum Redundant Power Supply System Cooling: 8x (40x40x56mm) Fans (23000rpm) Dimensions (WxDxH): 438.0 x 730.0 x 43.5 mm Weight: 13.0 kg
