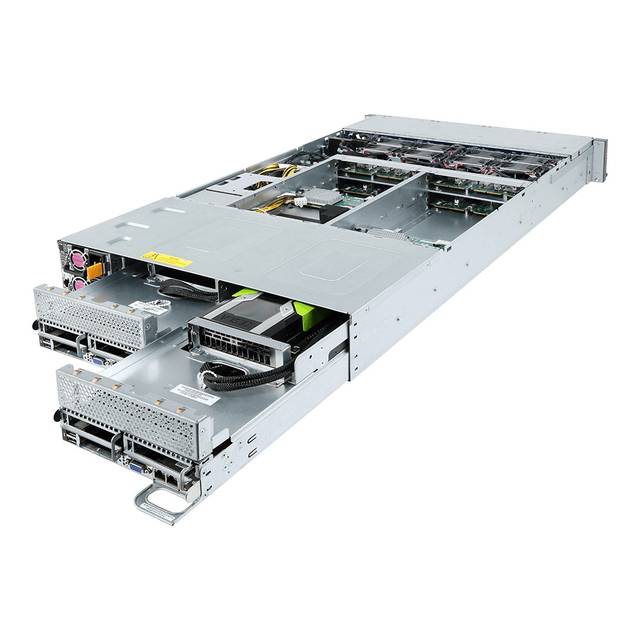

Product Overview

Mfr Part Number: H231-G20 Motherboard: MH61-HD3 Processor Per Node: Dual LGA3647 Supports Intel Xeon Scalable Family Processor Supports Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor and Intel Xeon Bronze Processor TDP up to 165W Chipset: Intel C621 Express Memory Per Node: 16x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, 6-channel Support RDIMM Modules Up to 64GB Support LRDIMM Modules Up to 128GB Slots Per Node: 1x PCI-Express 3.0 x16 for GPU, 1x Half-length low-profile slot with PCI-Express 3.0 x16 Connector, 1x Half-length low-profile slot with PCI-Express 3.0 x8 Connector, 1x OCP Mezzanine PCI-Express 3.0 x16 Connector Video: Integrated Aspeed AST2500 Graphics LAN Per Node: 2x Intel X550-AT2 10Gb/s BASE-T Gigabit Ethernet Controllers; 1x Dedicated management port Drive Bays Per Node: 10x 2.5" SAS/SATA hot-swappable HDD/SSD bays, 2x 2.5" U.2 or SAS/SATA hot-swappable HDD/SSD bays Ports Per Node: 2x USB 3.0 Ports (rear), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 MLAN Port Form Factor: 2U Rackmount Power Supply: 2x 2200W 80 PLUS Platinum Certified Power Supply System Cooling: 8x 80x80x38mm (16300rpm) Dimensions (WxDxH): 440.0 x 820.0 x 87.0 mm Weight: 30.0 kg (full packaging)
