Product Overview

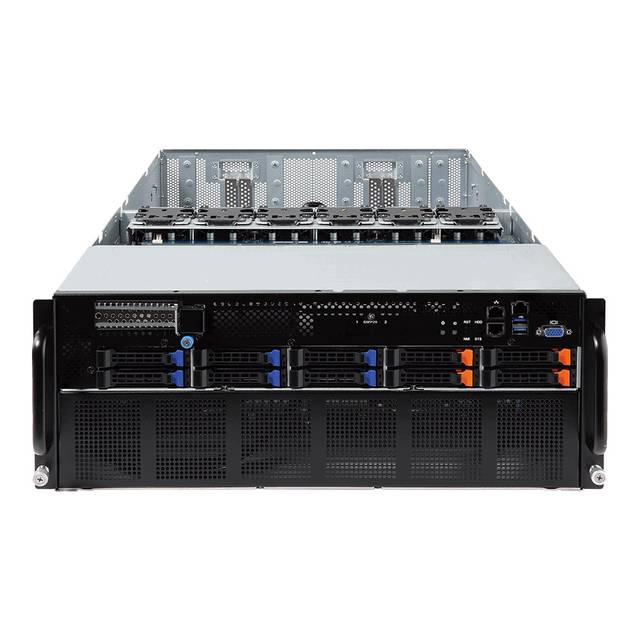

Mfr Part Number: G481-S80 Motherboard: MG61-G40 Processor: Dual LGA3647 Supports Intel Xeon Scalable Family Processor Supports Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor, Intel Xeon Bronze Processor TDP up to 205W Chipset: Intel C621 Express Memory: 24x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, 6-Channel Support RDIMM modules up to 64GB Support LRDIMM modules up to 128GB Slots: Rear Side: 4x PCI-Express 3.0 x16 Slots (Half-length low-profile slot), 1x OCP mezzanine slot Front Side: 1x PCI-Express 3.0 x16 Slot (runs at x8, Half-length low-profile slot) SATA: Supported Video: Integrated Aspeed AST2500 Graphics LAN: Rear Side: 1x 10/100/1000 management LAN (in option) Front Side: 2x Intel I350-AM2 1Gb/s BASE-T LAN Ports,1x 10/100/1000 management LAN, 4x QSFP28 LAN ports with Intel Omni-Path Host Fabric Interface (as an option) Drive Bays: 10x 2.5" hot-swappable HDD/SSD bays Ports: 2x USB 3.0 Ports (Front), 1x VGA Port (Primary port, Front), 3x RJ45 Ports (front), 4x Onmi-Pach QSFP28 LAN Ports (Reserved, Front), 1x MLAN Port (Reserved, enabled by cable switch, Rear) Form Factor: 4U Rackmount Power Supply: 4x 2200W 80 PLUS Platinum Redundant Power Supply System Cooling: 12x (60x60x38mm) Fans (23000rpm) Dimensions (WxDxH): 448.0 x 880.0 x 176.0 mm Weight: 39.0 kg
