Product Overview

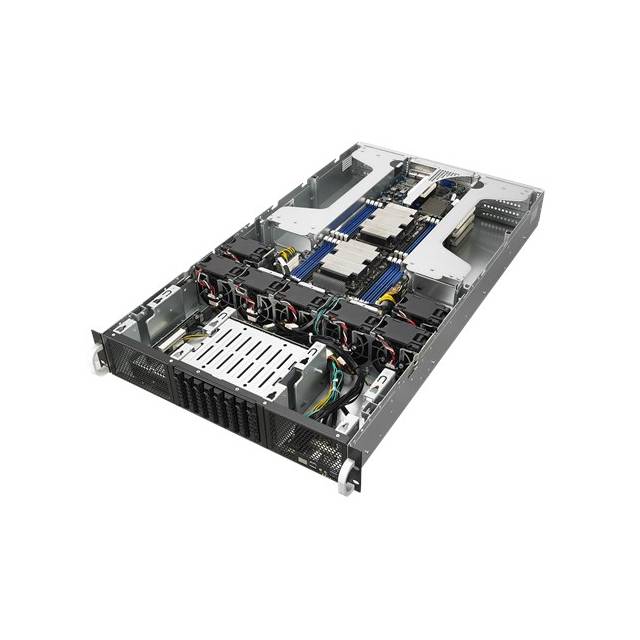

Mfr Part Number: ESC4000 G4S Processor: Dual Socket P (LGA 3647) Support 1st and 2nd Gen Xeon Scalable Processor Family (165W) UPI up to 10.4GT/s Chipset: Intel C621 Memory: 16x DDR4-2933/ 2666/ 2400/ 2133 DIMM Slots, 6-Channel, Max Capacity of 2048GB Slots: Full-length/ Full-height: 8x PCI-Express 3.0 x16 Slots (4 at x16 or 8 at x8) Half-length/Low-profile: 1x PCI-Express 3.0 x24 Slot (rear, supports with riser card) (1x PCI-Express 3.0 x16 Slot & 1x PCI-Express 3.0 x8 Slot); 1x PCI-Express x8 Slot (front, internal HBA/RAID card) SATA: 8x SATA3 Ports & 1x M.2 connector or 6x SATA3 Ports & 2x NVMe drives & 1x M.2 connector, Supports RAID 0, 1 (Linux/Windows) Video: Aspeed AST2500 Graphics w/ 64MB Video Memory LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers; 1x Management LAN Drive Bays: 8x 2.5" Hot-Swap HDD Bays Ports: 4x USB 3.0 Ports (2 Rear, 2 front), 2x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x Management LAN Port Power Supply: 1600W or 1000W 80 PLUS Platinum Certified 1+1 Redundant Power Supply Form Factor: 2U Rackmount Dimensions: 800.0 x 440.0 x 88.0 mm
