Product Overview

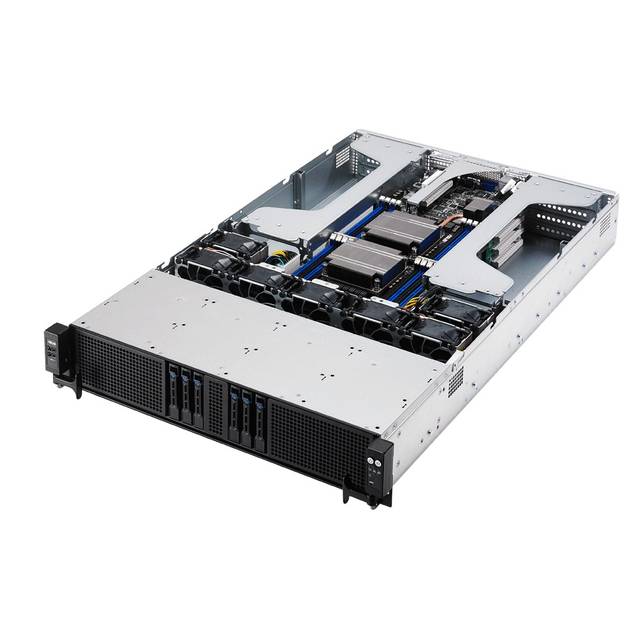

Mfr Part Number: ESC4000 G3S Processor: Dual LGA2011-v3 Support Intel Xeon E5-2600 v3 Series Processors QPI up to 9.6GT/s Chipset: Intel C612 PCH Memory: 16x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots: Full-length, Full-height: 8x PCI-Express 3.0 x16 Slots (4 at x16 or 8 at x8) Half-length/Low-profile and ASUS Proprietary Form Factor: 1x PCI-Express 3.0 x24 Slot supports with riser card (1x PCI-Express 3.0 x16 Slot runs at x8 & 1x PCI-Express 3.0 x8 Slot) SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5 ,10 (Windows); Supports RAID 0, 1, 10 (Linux/Windows) Video: Aspeed AST2400 Graphics w/ 32MB Video Memory LAN: 2x Intel I210AT Gigabit Ethernet Controllers; 1x Management LAN Drive Bays: 6x 2.5" Hot-Swap HDD Bays Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports (front), 1x Serial Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x Management LAN Port Power Supply: 1620W or 2000W 80 PLUS Platinum Certified 1+1 Redundant Power Supply Form Factor: 2U Rackmount Dimensions: 444.0 x 750.0 x 87.0 mm
