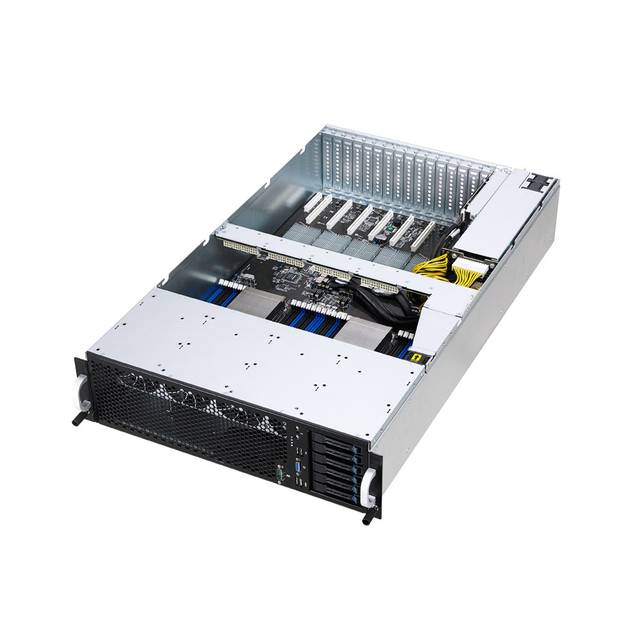

Product Overview

Mfr Part Number: ESC8000 G3 Processor: Dual LGA2011-v3 Support Intel Xeon E5-2600 v3 Series Processors QPI up to 9.6GT/s Chipset: Intel C612 PCH Memory: 24x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1536GB Slots: Full-length, Full-height: 9x PCI-Express 3.0 x16 Slots (one runs at x8) Half-length/Low-profile: 1x PCI-Express 3.0 x8 Slot Storage: SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5 ,10 (Windows); Supports RAID 0, 1, 10 (Linux/Windows) M.2: 1x M.2 Port Video: Aspeed AST2400 Graphics w/ 32MB Video Memory LAN: 2x Intel I210AT Gigabit Ethernet Controllers; 1x Management LAN Drive Bays: 6x 2.5" Hot-Swap HDD Bays Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x Serial Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x Management LAN Port Power Supply: 1600W 80 PLUS Platinum Certified 2+1 Redundant Power Supply Form Factor: 3U Rackmount Dimensions: 447.0 x 759.0 x 130.6 mm Weight: 29.2 kg (exluding CPU/memory/HDD/add-on cards)
