Product Overview

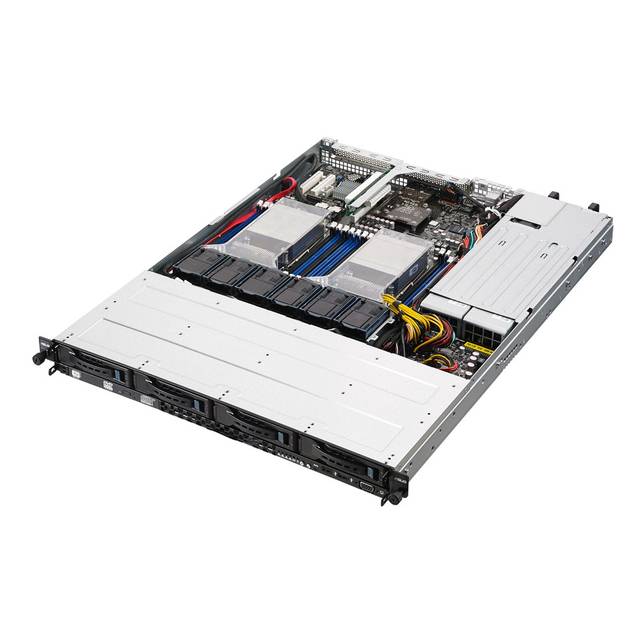

Mfr Part Number: RS500-E8-RS4 V2 Processor: Dual LGA2011-v3 Supports Intel Xeon E5-2600 v3 Family Processors Supports up to 145W TDP QPI up to 6.4 / 8.0 / 9.6 GT/s Chipset: Intel C612 PCH Memory: 16x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length), 1x PCI-Express 3.0 x8 Slot (OCP Mezzanine) Storage: SATA: 9x SATA3 Ports, Support RAID 0, 1, 5, 10 (Windows only) M.2: 1x M.2 Port Video: Aspeed AST2400 Graphics w/ 32MB VRAM Video Memory LAN: 2x Intel I210AT Gigabit Ethernet Controllers; 1x Management LAN Drive Bays: 4x 3.5" Hot-swap HDD Bays Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x PS/2 Keyboard/Mouse Port, 2x VGA Ports(1 rear, 1 via onboard), 2x RJ45 LAN Ports, 1x Management LAN Port Power Supply: 770W 80 PLUS Gold Certified 1+1 Redundant Power Supply Form Factor: 1U Rackmount Dimensions: 615.0 x 444.0 x 44.0 inch Weight: 18.0 kg
