Product Overview

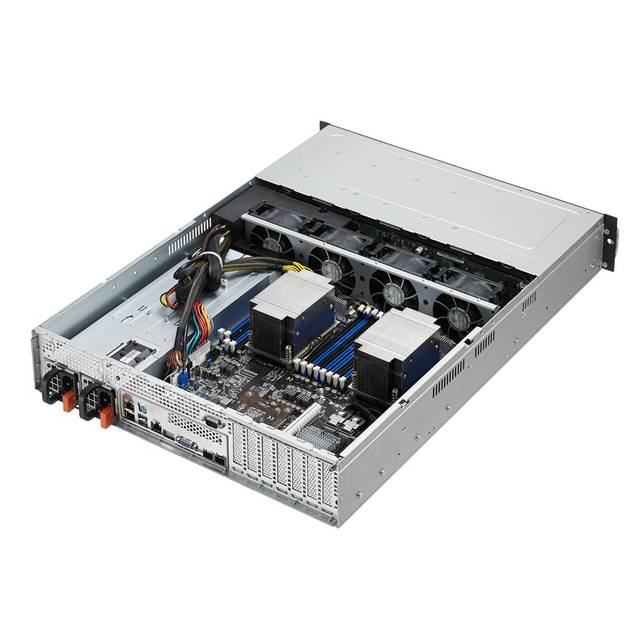

Mfr Part Number: RS520-E8-RS8 V2 Processor: Dual LGA2011-v3 Support Intel Xeon E5-2600 v3 Family Processors Supports up to 145W TDP QPI up to 6.4 / 8.0 / 9.6 GT/s Chipset: Intel C612 PCH Memory: 16x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 3x PCI-Express 3.0 x8 Slots (one OCP Mezzanine) Storage: SATA: 9x SATA3 Ports, Support RAID 0, 1, 5, 10 (Windows only) M.2: 1x M.2 Port Video: Aspeed AST2400 Graphics w/ 32MB VRAM Video Memory LAN: 2x Intel i210AT Gigabit Ethernet Controllers; 1x Management LAN Drive Bays: 8x 3.5" Hot-swap Storage Bays Ports: 4x USB 3.0 Ports (2 front, 2 on board), 2x VGA Ports (1 front, 1 on board), 1x PS/2 Keyboard/Mouse Port, 2x RJ45 LAN Ports, 1x Management LAN Port Power Supply: 770W 80 PLUS Gold Certified 1+1 Redundant Power Supply Form Factor: 2U Rackmount Dimensions: 615.0 x 444.0 x 88.0 mm Weight: 22.0 kg
