Product Overview

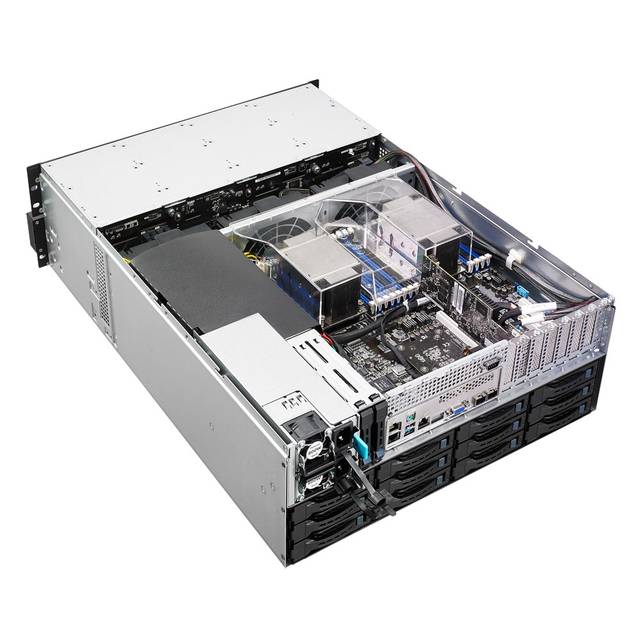

Mfr Part Number: RS540-E8-RS36-ECP Processor: Dual LGA2011-v3 Supports Intel Xeon E5-2600 v4/ v3 Family Processors Supports up to 145W TDP QPI up to 6.4 / 8.0 / 9.6 GT/s Chipset: Intel C612 PCH Memory: 16x DDR4-2400/ 2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots: 1x PCI-Express 3.0 x16 Slots (runs at x8), 3x PCI-Express 3.0 x8 Slot (one OCP Mezzanine) Storage: SATA: 9x SATA3 Ports, Support RAID 0, 1, 5, 10 (Windows only) M.2: 1x M.2 Port Video: Aspeed AST2400 Graphics w/ 32MB VRAM Video Memory LAN: 2x Intel I210AT Gigabit Ethernet Controllers; 1x Management LAN Drive Bays: 36x Hot-Swap 3.5" HDD Bays (BP w/Expander), 2x Hot-Swap 2.5" SSD Bays (Rear) Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x Management LAN Port Power Supply: 800W 80 PLUS Platinum Certified 1+1 Redundant Power Supply Form Factor: 4U Rackmount Dimensions: 24.21 x 17.48 x 6.92 inch / 615.0 x 444.0 x 176.0 mm Weight: 25.915 kg
