Product Overview

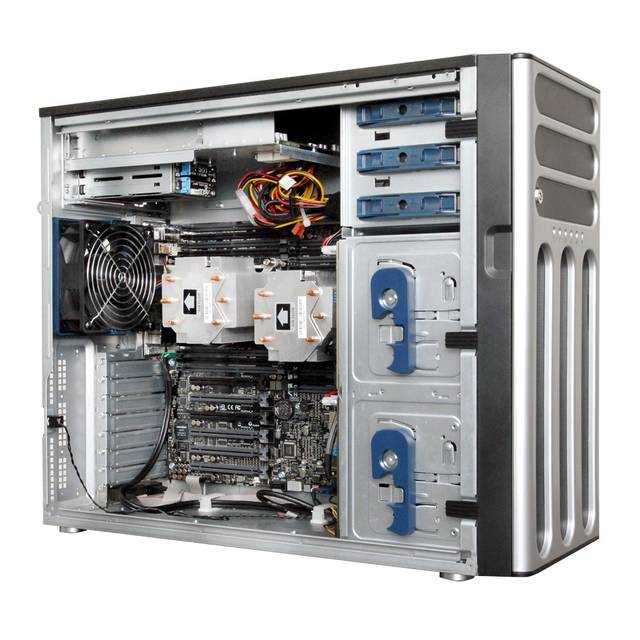

Mfr Part Number: TS700-E8-RS8 V2 Motherboard: Z10PE-D16 WS Processor: Dual LGA2011-v3 Support Intel Xeon E5-2600 v3/v4 Family Processors Support 6.4 / 8.0 / 9.6 GT/s QPI Chipset: Intel C612 PCH Memory: 16x DDR4-2400/ 2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots: 4x PCI-Express 3.0 x16 Slots (FH, FL), 1x PCI-Express 3.0 x16 Slot (runs at x8; FH, FL); 1x PCI-Express 3.0 x16 Slot (runs at x8; FH, HL) Multi-GPU: Supports ATI Quad CrossFireX and NVIDIA 2-Way Geforce SLI Technology Storage: 10x SATA3 Ports or 9x SATA3 Ports + 1x M.2 Port, Support RAID 0, 1, 5, 10 Video: Aspeed AST2400 Graphics, w/ 32MB Video Memory LAN: 2x Intel I210AT Gigabit Ethernet Controllers; 1x Mgmt LAN Drive Bays: 8x 3.5" Hot-swap Storage Bays, 3x 5.25" Media Bays Ports: 6x USB 3.0 Ports (2 front, 4 rear), 6x USB 2.0 Ports (2 front, 4 rear), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 2x RJ45 LAN Port, 1x RJ-45 Mgmt LAN Port, 1x Headphone, 1x Microphone, 1x Optical S/PDIF Out, Audio I/O Jacks Power Supply: 800W 80 PLUS Gold Certified 1+1 Redundant Power Supply; 100-127Vac/200-240Vac, 9.9A/4.79A, 47-63Hz System Cooling: 2x ESC2000 Front Fans, 1x ESC2000 Rear Fan Form Factor: 5U/Tower Dimensions: 17.91 x 8.54 x 21.45 inch / 455.0 x 217.5 x 545.0 mm Weight: 17.68 kg
