Product Overview

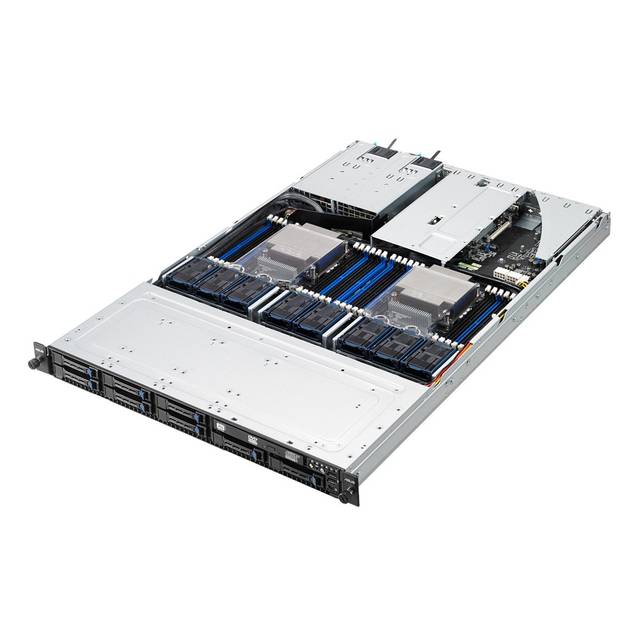

Mfr Part Number: RS700-E8-RS8 V2 Processor: Dual LGA2011-v3 Supports Intel Xeon E5-2600 v3 Family Processors QPI up to 9.6GT/s Supports up to 145W TDP Chipset: Intel C612 PCH Memory: 24x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1536GB Slots: 1x PCI-Express 3.0 x16 Slot (Full-height, Half-length), 1x PCI-Express 3.0 x16 Slot (run at x8; Low Profile, Half-length), 2x PCI-Express 3.0 x8 Slots (1 Proprietary, 1 OCP Mezzanine) SATA: 2x MiniSAS Ports + 2x SATA Ports or 2x MiniSAS Ports + 1x SATA Port + 1x M.2 Connector, Support RAID 0, 1, 5, 10 Video: Aspeed AST2400 Graphics w/ 32MB Video Memory LAN: Dual Port Intel i350-AM2 Gigabit Ethernet Controller; 1x Management LAN Drive Bays: 8x 3.5" Hot-Swap Storage Bays Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 2x VGA Ports (1 rear, 1 via onboard), 1x External Serial Port, 1x PS/2 Keyboard/Mouse Port, 2x RJ45 LAN Ports, 1x RJ45 Management LAN Port Form Factor: 1U Rackmount Power Supply: 800W 80 PLUS Platinum Certified 1+1 Redundant Power Supply Dimensions: 444.0 x 686.0 x 44.0 mm Weight: 18.0 kg
