Product Overview

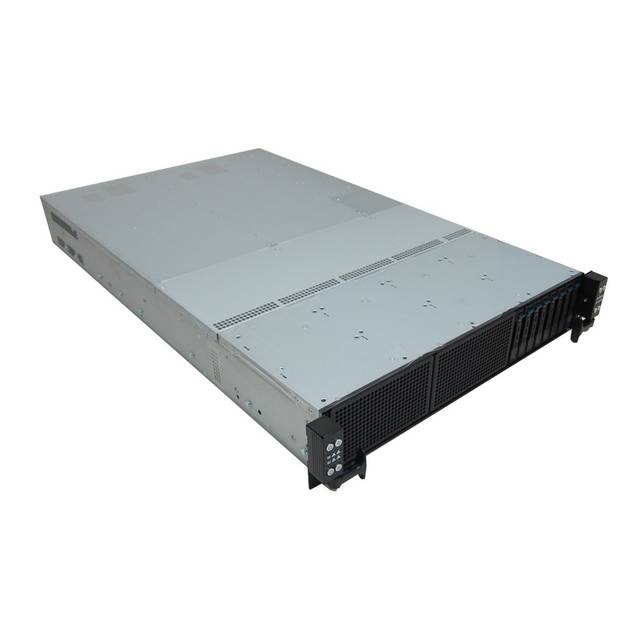

Mfr Part Number: 90SV033A-M02LE0 Processor per Node: Dual LGA2011-v3 Support Intel Xeon E5-2600 v3 Family Processors Supports Intel Xeo 145W TDP QPI up to 6.4 / 8.0 / 9.6 GT/s Chipset per Node: Intel C612 PCH Memory per Node: 16x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots per Node: 1x PCI-Express 3.0 x16 Slot (Low Profile, Half-length), 1x PCI-Express 3.0 x8 Slot (proprietary) Storage per Node: SATA: 6x SATA3 Ports (w/o M.2 Port) or 5x SATA3 Ports, Support RAID 0, 1, 5, 10 (Windows only) M.2: 1x M.2 Port Video per Node: Aspeed AST2400 Graphics w/ 32MB VRAM Video Memory LAN per Node: 2x Intel I210AT Gigabit Ethernet Controller; 1x Management LAN Drive Bays per Node: 8x 2.5" Hot-swap Storage Bays Ports per Node: 2x USB 3.0 Ports, 1x VGA Port, 2x RJ45 Ports, 1x RJ45 Management LAN Port Power Supply: 2000W 80 PLUS Platinum 1+1 Redundant Power Supply Form Factor: 2U Rackmount Dimensions: 29.53 x 17.48 x 3.50 inch / 750.0 x 444.0 x 88.0 mm Weight: 71.0 lbs / 32 kg
