Product Overview

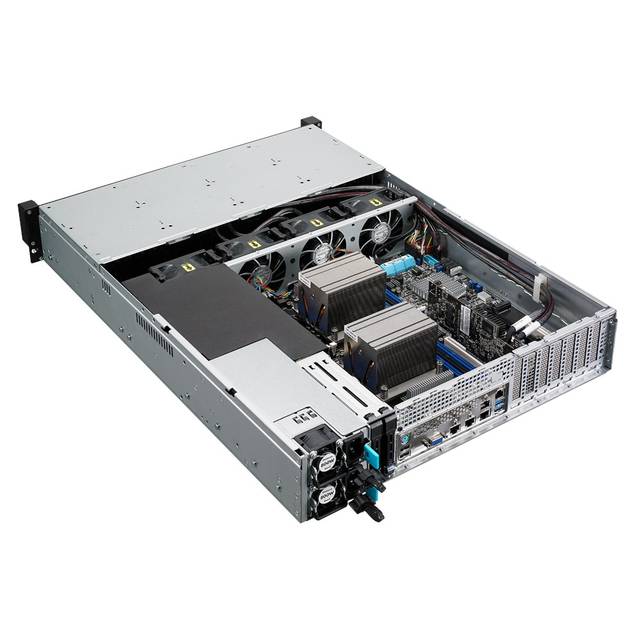

Mfr Part Number: RS720-E8-RS24-ECP (PIKE II 3108) Processor: Dual LGA2011-v3 Supports Intel Xeon processor E5-2600 v4 product family Supports Intel Xeon processor E5-2600 v3 product family Supports up to 145W TDP QPI up to 6.4 / 8.0 / 9.6 GT/s Chipset: Intel C612 PCH Memory: 16x DDR4-2400/ 2133/ 1866/ 1600 DIMM Slots, Quad Channel, Max Capacity of 1024GB Slots: 3x PCI-Express 3.0 x16 Slots (Low Profile), 2x PCI-Express 3.0 x8 Slot (one runs at x4, Low Profile) Storage: SATA: 10x SATA3 Ports or 9x SATA3 Ports, Support RAID 0, 1, 5, 10 (Windows only) M.2: 1x M.2 Port Video: Aspeed AST2400 Graphics w/ 32MB VRAM Video Memory LAN: 1x Intel i350-AM2 Dual Port Gigabit Ethernet Controller; 1x Intel I350-BT2 Dual Port Gigabit LAN controller; 1x Management LAN Drive Bays: 24x 2.5" Hot-swap HDD Bays, 2x 2.5'' Hot-swap SSD Bays Ports: 2x USB 3.0 Ports, 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 1x PS/2 Keyboard/Mouse Port, 4x RJ45 Ports, 1x RJ45 Management LAN Port, 1x External Serial Port Power Supply: 800W 80 PLUS Platinum 1+1 Redundant Power Supply Form Factor: 2U Rackmount Dimensions: 24.21 x 17.48 x 3.46 inch / 615.0 x 444.0 x 88.0 mm Weight: 15.66 kg
