Product Overview

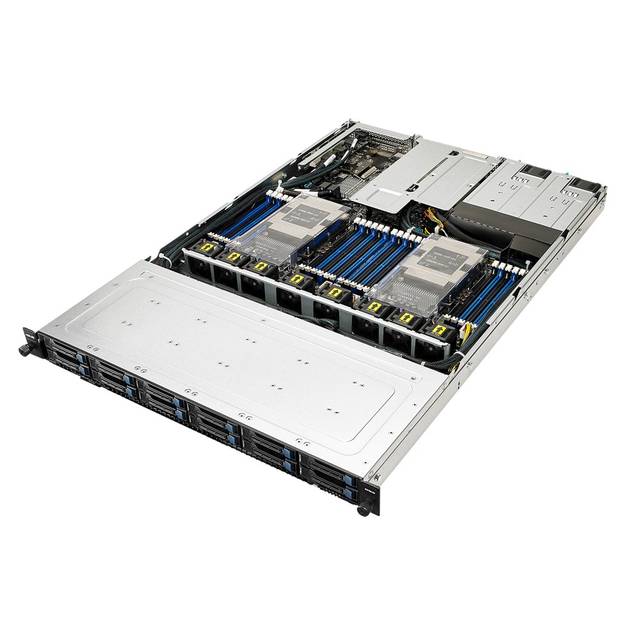

Mfr Part Number: RS700-E9-RS12 Processor: Dual LGA3647 Intel Xeon Scalable Processors Family Chipset: Intel Lewisburg PCH C621 Memory: 24x DDR4-2666/ 2400 MHz DIMM Slots, 6-channel, REG/Load Reduced, Max Capacity of 3TB Slots: 1x PCI-Express 3.0 x16 Slot (Full-height, Half-length), 1x PCI-Express 3.0 x16 Slot (runs at x8, Low Profile, Half-length), 1x PCI-Express 3.0 x8 Slot (Low Profile, Half-length), 1x OCP Mezzanine 2.0 (Gen3 x16 link) Storage: 10x SATA3 ports + 1x M.2 Connector or 9x SATA3 Ports + 2x M.2 Connectors Video: Aspeed AST2500 Graphics w/ 64MB Video Memory LAN: Dual Port Intel i350-BT2 Gigabit Ethernet Controller; 1x Management LAN Drive Bays: 12x 2.5" Hot-swap Storage Bays (4 x Default NVMe,4 x Hybrid NVMe/SAS/SATA,4 x Hybrid SAS/SATA), 2x M.2 (22110, 2280, 2260, 2242) Ports: 2x USB 3.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Management LAN Port Form Factor: 1U Rackmount Power Supply: 800W 80 PLUS Platinum Certified 1+1 Redundant Power Supply Dimensions: 27.00 x 17.48 x 1.73 inch / 686.0 x 444.0 x 44.0 mm Weight: 16.8 kg
