Product Overview

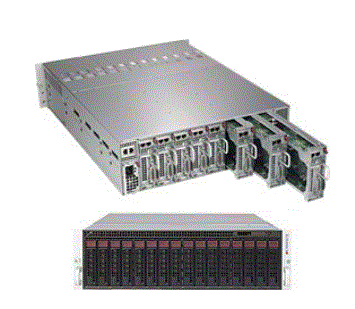

SYS-5039MD8-H8TNR (Coming Soon) Cloud computing, dynamic web serving, dedicated hosting, content delivery network, memory caching, and corporate applications 8 modular UP Nodes in 3U; EACH NODE: Intel® Xeon® processor D-2141i SoC, 8-Cores, 16 Threads, 65W Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4‑2133MHz in 4 DIMM slots 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0 2x 3.5" SATA3 or 2x 2.5" Hybrid SATA3/NVMe w/ optional kits 1 PCI-E 3.0 x16, 1 Micro-LP, and 2 M.2 1600W Redundant Titanium Level Power Supplies
Specifications
Product SKUs
SYS-5039MD8-H8TNR (Black)
Motherboard
Super X11SDD-8C-F
Processor/Cache (per Node)
CPU: Socket FCBGA1667,Intel® Xeon® Processor D-2141I,CPU TDP support 65W,Cores / Cache:8-Cores, 16 Threads
System Memory (per node)
Memory Capacity: 4x 288-pin DDR4 DIMM slots, Up to 512 GB ECC LRDIMM, Up to 256 GB ECC RDIMM, Memory Type: 2133MHz ECC DDR4 LRDIMM and RDIMM,DIMM Sizes: 32GB, 16GB, 8GB
Chassis
Form Factor:3U, Model:CSE-938NH-R1K68BP
Dimensions and Weight
Height:5.2" (132 mm), Width:15.26" (387 mm),Depth:23" (585 mm), Package:11.65" (H) x 26.26" (W) x 34" (D)
Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
