Product Overview
Key Features - Cost Optimized IoT Gateway - Commercial Appliance 1. Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296 2. System on Chip 3. Up to 8GB Unbuffered Non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket 4. 1 Half size Mini-PCIe, 1 M.2 B-Key 2242 for SATA SSD 5. Dual LAN with Intel I210-IT 6. 2 USB 3.0, 1 HDMI 7. Fanless design 8. Lockable 12V DC 40W power adapter
Specifications
Product SKUs

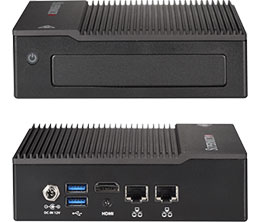

SYS-E50-9AP-L
Motherboard
Super A2SAP-H
Processor/Cache
CPU: Intel® Atom® processor E3940, Single socket FCBGA 1296, 9.5W, 4C
System Memory
Memory Capacity: Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket, Memory Type: DDR3L up to 1866MHz, DIMM Sizes: 8GB, 4GB
Chipset
System on Chip, Network Controllers: Dual LAN with Intel® Ethernet Controller I210-IT, Graphics: Intel® HD Graphics, HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
Chassis
Form Factor: Proprietary, Model:CSE-E50-L
Dimensions
Width:5.82" 148mm, Height:1.72" (44mm), Depth:4.64" (118mm),Package 5.5" (H) x 9.5" (W) x 8" (D)
Power Supply
40W lockable 12V DC power adapter
