Product Overview

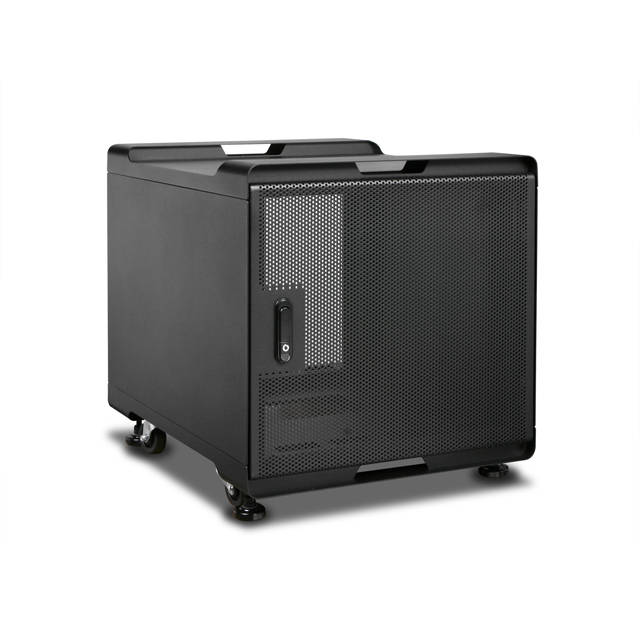

Mfr Part Number: WS-1070B Features: Universal Fit Most of Rackmount Chassis and Equipment Front Security Locks to Prevent Unauthorized Access to Equipment and Data Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis Vented Doors Provide Maximum Air Flow Removable Side Panels for Easy Access Tapped Mounting Holes (M5 size) for Audio / Video Equipment Locking Mechanism Design on Casters Equipped with Casters and Feet Form Factor: 10U Material: Main Frame: SPCC t1.6 Mounting Rails: SPCC t2.0 Top and Bottom Frame: SPCC T1.6 to 2.0 Side Panel: Aluminum t2.0 Vented Door: SPCC t1.2 Color: Black Loading Capacity: 660 lbs Supported Chassis Depth: 22" and under Internal Dimensions: Depth: 22.5" max Dimensions (WxDxH): 22.40 x 27.60 x 24.30 inch / 569.0 x 701.0 x 617.0 mm RoHS Compliant
