Product Overview

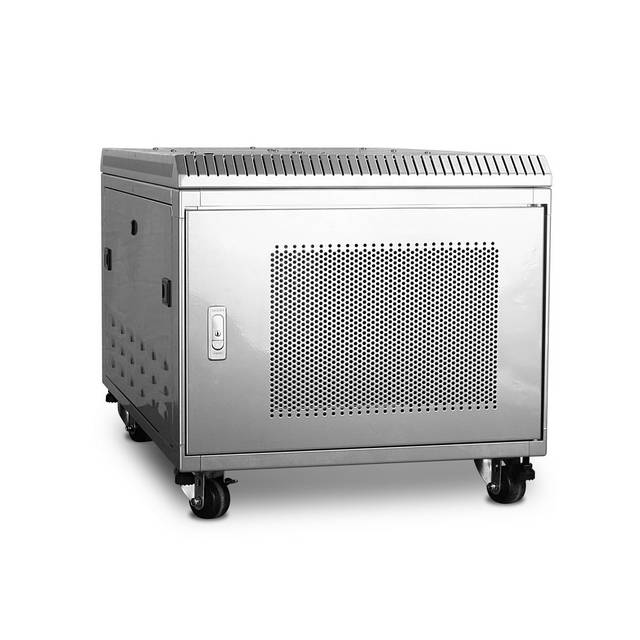

Mfr Part Number: WG-790-S Features Universal Fit Most of Rackmount Chassis and Equipment Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data Easy Cabling Management. Cable Entry Provided from Top/ Bottom Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis Vented Doors Provide Maximum Air Flow Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line Optional Monitor Mount Locking Mechanism Design on Casters Form Factor: 7U Material: Frame: Aluminum Base: SPCC Cold Rolled Steel t1.2 Mounting Rails: SPCC Cold Rolled Steel t2.0 Top Panel: SPCC Cold Rolled Steel t1.2 Side Panels: SPCC Cold Rolled Steel t1.2 Doors: SPCC Cold Rolled Steel t1.5 Color: Silver Loading Capacity: 2200 lbs Supported Chassis Depth: 29" and under Internal Dimensions: Depth- 29" max Cooling: Optional 3 sets of 120mm 120V AC fans can be installed on top (p/n: WA-SF120-2FAN) Dimensions(WxDxH): 23.6 x 35.4 x 23.0 inch / 599.0 x 899.0 x 584.0 mm RoHS Compliance
