Product Overview

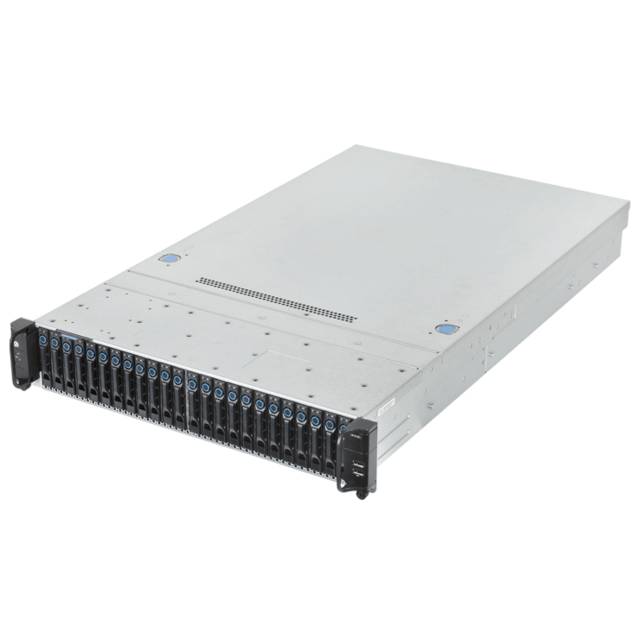

Mfr Part Number: 1S2BZZZ000N Processor: Dual LGA2011-v3 Supports Intel Xeon E5-2600 v3 Product Family Processor Thermal Design Power up to 145W Supports 6.4 GT/s, 8.0 GT/s, 9.6 GT/s QPI Speeds Cache up to 45 MB Chipset: Intel C610 Memory: 24x DDR4-2133 DIMM Slots; Supports up to up to 768GB REG Memory or 1536GB Load Reduced Memory Slots: 1x PCI-Express 3.0 x16 Slot (for FHHL), 5x PCI-Express 3.0 x8 Slots (one for SAS mezzanine slot; two for LP MD-2, one for FHHL, one for OCP LAN mezzanine slot) SATA: 10x SATA3 Ports, Support RAID 0, 1, 10 Video: Integrated AST2400 Graphics w/ 8MB DDR3 Video Memory LAN: Intel i350 Dual Port 1 Gigabit Ethernet Controller, 1x Dedicated Management LAN Drive Bays: 24x 2.5" hot-plug Bays Ports: 4x USB 2.0 Ports (2 front, 2 rear), 1x VGA Port, 1x Serial Port, 1x RJ45 Port, 1x RJ45 Management LAN Port Form Factor: 2U Rackmount Power Supply: 1+1 High efficiency redundant hot-plug PSU (default with one PSU only) System Cooling: 4x dual rotor Fans (7+1 redundant) Dimensions (WxDxH): 17.60 x 29.33 x 3.44 inch / 447.0 x 745.0 x 87.5 mm RoHS Compliant
