Product Overview

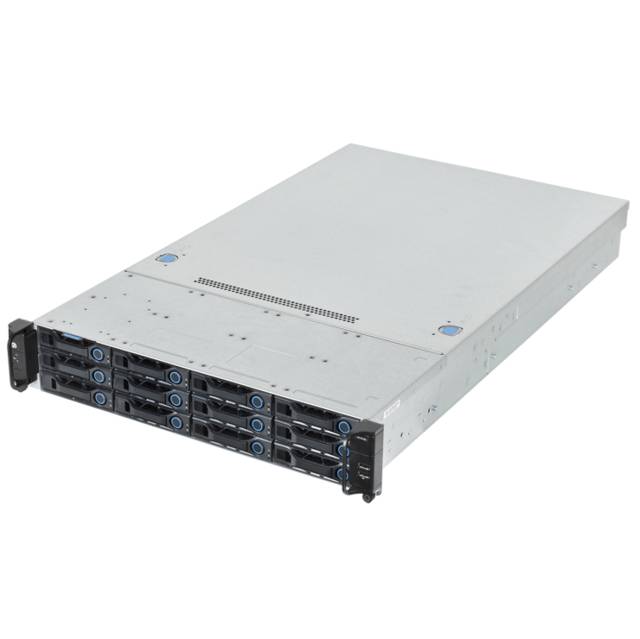

Mfr Part Number: 1S2BZZZ000P Processor: Dual LGA2011-v3 Supports Intel Xeon E5-2600 v3 Product Family Processor Thermal Design Power up to 145W Supports 6.4 GT/s, 8.0 GT/s, 9.6 GT/s QPI Speeds Cache up to 45 MB Chipset: Intel C610 Memory: 24x DDR4-2133 DIMM Slots; Supports up to up to 768GB REG Memory or 1536GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x16 Slots (one for Low-profile MD-2 Card; one for FHHL), 3x PCI-Express 3.0 x8 Slots (one for OCP LAN mezzanine Card; one for FHHL) SATA: 10x SATA3 Ports, Support RAID 0, 1, 10 Video: Integrated AST2400 Graphics w/ 8MB DDR3 Video Memory LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller, 1x Dedicated Management LAN Drive Bays: 12x 3.5" hot-plug Bays Ports: 4x USB 2.0 Ports (2 front, 2 rear), 1x VGA Port, 1x Serial Port, 1x 10G BASE-T RJ45 Port, 1x RJ45 Management LAN Port Form Factor: 2U Rackmount Power Supply: 1+1 High efficiency redundant hot-plug PSU (default with one PSU only) System Cooling: 4x dual rotor Fans (7+1 redundant) Dimensions (WxDxH): 17.60 x 29.33 x 3.44 inch / 447.0 x 745.0 x 87.5 mm RoHS Compliant
